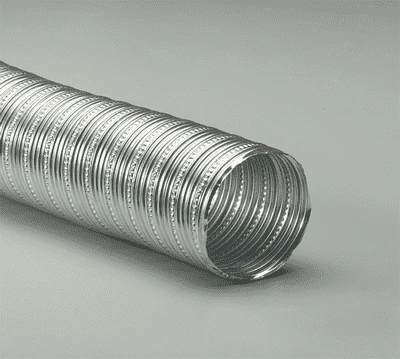

4-Bendway-A-10 By Flexaust | #4950400010 | Bendway A | Air And Fume Duct Hose | 4 Inch | 10ft
4-Bendway-A-10 By Flexaust | #4950400010 | Bendway A | Air And Fume Duct Hose | 4 Inch | 10ft - Image 2
4-Bendway-A-10 By Flexaust | #4950400010 | Bendway A | Air And Fume Duct Hose | 4 Inch | 10ft -Hose Ware House Bendway add ed727d29 466e 4ac4 80cf 82a5735c67b7

4-Bendway-A-10 By Flexaust | #4950400010 | Bendway A | Air And Fume Duct Hose | 4 Inch | 10ft

Original price was: $85.73.Current price is: $60.01.

SKU: AG9ZZ 1478470828068 Category: Tags: , , , , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers

SPECIFICATIONS

Applications: Circuit Board Cooling SAE Rating: N/A
Other Ratings: N/A Tube: Single-ply helically corrugated aluminum alloy
Reinforcement: Four-ply finished seam that is folded flat and crimped for tightness and strength Cover: N/A
Temperature Range: -100 deg. F to 400 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Light weight & hand bendable allowing for elbows & turns to be formed easily during installation.
  • Self-supporting construction allows for bends to stay in place.
  • Resists metal fatigue, weathering, & most corrosive fumes & chemicals.
  • Not recommended for continuous flexing.
Part Number
5 ft Reels		 Part Number
10 ft Reels		 Inside
Diameter		 Wall Thickness
(In)		 Centerline
Bend Radius
(In)		 Compression
Ratio		 Negative Pressure
(In/Hg)		 Working Pressure
(PSI)		 Weight – 5ft
(Lbs/Ft)		 Weight – 10ft
(Lbs/Ft)
Bendway A 2in Bendway A 2in 2″ .008″ 4″ N/A N/A N/A 0.565 lbs 1.13 lbs
Bendway A 3in Bendway A 3in 3″ .008″ 5.7″ N/A N/A N/A 0.835 lbs 1.67 lbs
Bendway A 4in Bendway A 4in 4″ .008″ 7.48″ N/A N/A N/A 1 lbs 2 lbs
Bendway A 5in Bendway A 5in 5″ .008″ 9.34″ N/A N/A N/A 1.25 lbs 2.5 lbs
Bendway A 6in Bendway A 6in 6″ .008″ 11.2″ N/A N/A N/A 1.5 lbs 3 lbs
Bendway A 7in Bendway A 7in 7″ .008″ 13.06″ N/A N/A N/A 1.75 lbs 3.5 lbs
Bendway A 8in Bendway A 8in 8″ .008″ 14.96″ N/A N/A N/A 1.75 lbs 3.5 lbs
Bendway A 9in Bendway A 9in 9″ .008″ 16.82″ N/A N/A N/A 2 lbs 4 lbs
Bendway A 10in Bendway A 10in 10″ .008″ 18.68″ N/A N/A N/A 2.2 lbs 4.4 lbs
Bendway A 12in Bendway A 12in 12″ .008″ 22.39″ N/A N/A N/A 2.65 lbs 5.3 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
