Sale!

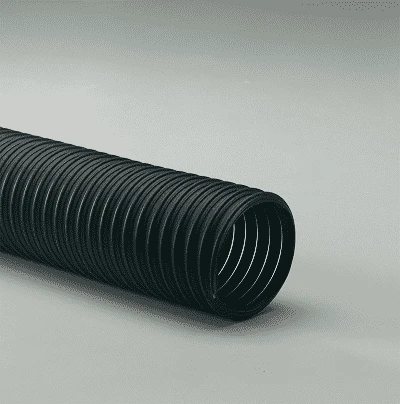

4.5-T-7-25 By Flexaust | #8731045025 | T-7 Series | Dust And Material Handling Duct Hose | 4.5 Inch | 25ft

Original price was: $147.67.Current price is: $97.99.

SPECIFICATIONS

Other Features:
Applications:	Chemical Plants, Dust Collection, Landfill Venting, Off-Road, Paint Spray Extraction, Pipe Organs, Plastic Bag Machines, Pollution Control, R.V. Manufacturing, Sheet Metal	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Medium weight black thermoplastic rubber
Reinforcement:	Spring steel wire helix	Cover:	N/A
Temperature Range:	-60 deg. F to 275 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A
Good abrasion resistance. Designed for applications with wide temperature ranges. Great moisture & UV resistance. Excellent chemical resistance. Smooth interior assures minimal friction loss & efficient air flow.

Part Number 25 ft Reels	Part Number 50 ft Reels	Inside Diameter	Wall Thickness (In)	Centerline Bend Radius (In)	Compression Ratio	Negative Pressure (In/Hg)	Working Pressure (PSI)	Weight – 25ft (Lbs/Ft)	Weight – 50ft (Lbs/Ft)
T-7 1.5in	T-7 1.5in	1.5″	.025″	1.7″	2:1	29	25	4 lbs	8 lbs
T-7 1.75in	T-7 1.75in	1.75″	.025″	1.8″	2:1	29	21	4.75 lbs	9.5 lbs
T-7 2in	T-7 2in	2″	.025″	2″	2:1	29	19	6.25 lbs	12.5 lbs
T-7 2.25in	T-7 2.25in	2.25″	.025″	2.2″	2:1	29	17	7 lbs	14 lbs
T-7 2.5in	T-7 2.5in	2.5″	.030″	2.5″	2:1	29	14	8 lbs	16 lbs
T-7 3in	T-7 3in	3″	.030″	3″	2:1	29	11	10 lbs	20 lbs
T-7 3.5in	T-7 3.5in	3.5″	.030″	4″	2:1	29	10	11.25 lbs	22.5 lbs
T-7 4in	T-7 4in	4″	.030″	5.5″	2:1	29	9	16.75 lbs	33.5 lbs
T-7 4.5in	T-7 4.5in	4.5″	.030″	6″	2:1	22	8	18.75 lbs	37.5 lbs
T-7 5in	T-7 5in	5″	.030″	6.5″	2:1	17	8	21.25 lbs	42.5 lbs
T-7 5.5in	T-7 5.5in	5.5″	.030″	6.8″	2:1	12.5	7	22.5 lbs	45 lbs
T-7 6in	T-7 6in	6″	.030″	6″	3:1	11	7	20.5 lbs	41 lbs
T-7 7in	T-7 7in	7″	.030″	7″	3:1	9	5	23.75 lbs	47.5 lbs
T-7 8in	T-7 8in	8″	.030″	8″	3:1	5.5	4.5	30 lbs	60 lbs
T-7 9in	T-7 9in	9″	.030″	9″	3:1	10	4	42.5 lbs	85 lbs
T-7 10in	T-7 10in	10″	.030″	10″	3:1	6.5	4	55 lbs	110 lbs
T-7 12in	T-7 12in	12″	.030″	12″	3:1	5	3.8	67.5 lbs	135 lbs
T-7 14in	T-7 14in	14″	.030″	14″	3:1	3	3.2	75 lbs	150 lbs
T-7 16in	T-7 16in	16″	.030″	16″	3:1	2.3	2.6	87.5 lbs	175 lbs
T-7 18in	T-7 18in	18″	.030″	18″	3:1	2	2.3	97.5 lbs	195 lbs
T-7 20in	T-7 20in	20″	.030″	21″	3:1	1.5	2	107.5 lbs	215 lbs
T-7 22in	T-7 22in	22″	.030″	23″	3:1	1	1.9	110 lbs	220 lbs
T-7 24in	T-7 24in	24″	.030″	25″	3:1	.8	1.75	120 lbs	240 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
