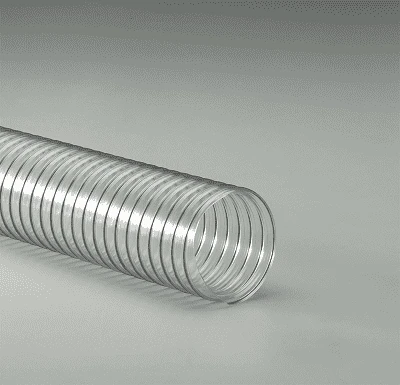

4.5-R-4-50 By Flexaust | #8171045050 | R-4 Series | Dust And Material Handling Duct Hose | 4.5 Inch | 50ft
Original price was: $289.33.$96.99Current price is: $96.99.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
SPECIFICATIONS
| Application: | Ideal for dust and woodworking applications | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Medium weight clear PVC |
| Reinforcement: | Spring steel wire helix | Cover: | N/A |
| Temperature Range: | 20 deg. F to 160 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
| |||
| Part Number 10 ft Reels | Part Number 25 ft Reels | Part Number 50 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight – 10ft (Lbs/Ft) | Weight – 25ft (Lbs/Ft) | Weight – 50ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| R-4 2in | R-4 2in | R-4 2in | 2″ | .025″ | 2″ | 3:1 | 29 | 24 | 2.5 lbs | 6.25 lbs | 12.5 lbs |
| R-4 2.25in | R-4 2.25in | R-4 2.25in | 2.25″ | .025″ | 2.25″ | 3:1 | 29 | 20 | 2.7 lbs | 6.75 lbs | 13.5 lbs |
| R-4 2.5in | R-4 2.5in | R-4 2.5in | 2.5″ | .025″ | 2.5″ | 3:1 | 29 | 18 | 3.4 lbs | 8.5 lbs | 17 lbs |
| R-4 3in | R-4 3in | R-4 3in | 3″ | .025″ | 3″ | 3:1 | 25 | 16 | 3.5 lbs | 8.75 lbs | 17.5 lbs |
| R-4 3.5in | R-4 3.5in | R-4 3.5in | 3.5″ | .025″ | 3.5″ | 3:1 | 24 | 14 | 4.3 lbs | 10.75 lbs | 21.5 lbs |
| R-4 4in | R-4 4in | R-4 4in | 4″ | .025″ | 3.7″ | 4:1 | 18 | 13 | 5.5 lbs | 13.75 lbs | 27.5 lbs |
| R-4 4.5in | R-4 4.5in | R-4 4.5in | 4.5″ | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| R-4 5in | R-4 5in | R-4 5in | 5″ | .025″ | 5″ | 4:1 | 9 | 12 | 6.7 lbs | 16.75 lbs | 33.5 lbs |
| R-4 5.5in | R-4 5.5in | R-4 5.5in | 5.5″ | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| R-4 6in | R-4 6in | R-4 6in | 6″ | .028″ | 6″ | 3:1 | 8 | 11 | 9 lbs | 22.5 lbs | 45 lbs |
| R-4 7in | R-4 7in | R-4 7in | 7″ | .028″ | 7″ | 3:1 | 5 | 9 | 9.8 lbs | 24.5 lbs | 49 lbs |
| R-4 8in | R-4 8in | R-4 8in | 8″ | .028″ | 8″ | 3:1 | 3.5 | 8 | 11.3 lbs | 28.25 lbs | 56.5 lbs |
| R-4 9in | R-4 9in | R-4 9in | 9″ | .028″ | 9″ | 3:1 | 2.5 | 7 | 13.6 lbs | 34 lbs | 68 lbs |
| R-4 10in | R-4 10in | R-4 10in | 10″ | .028″ | 9″ | 4:1 | 1.1 | 7 | 16.5 lbs | 41.25 lbs | 82.5 lbs |
| R-4 12in | R-4 12in | R-4 12in | 12″ | .028″ | 10″ | 4:1 | 1 | 6 | 19.7 lbs | 49.25 lbs | 98.5 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
