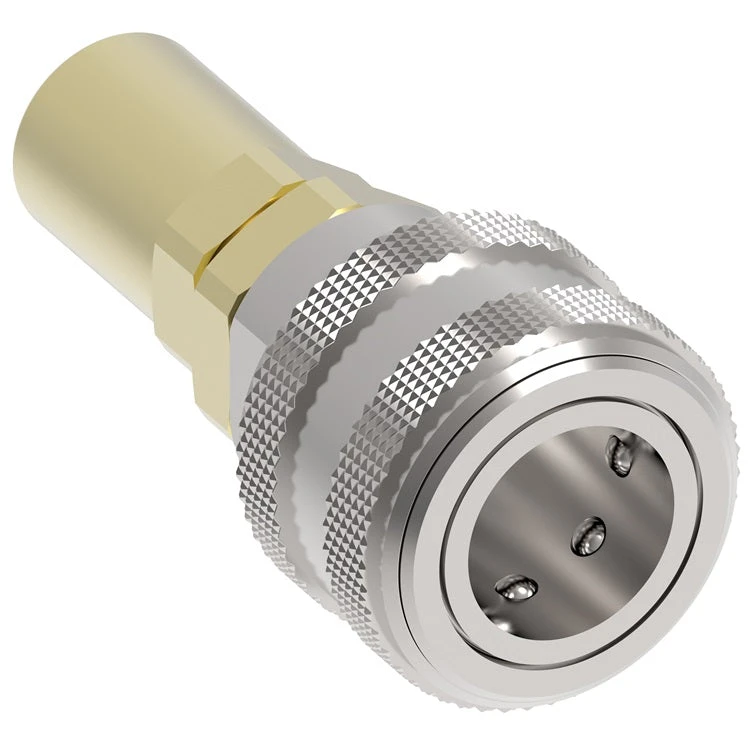

3SB7 Hansen® By Danfoss | Quick Disconnect Coupling | 3000 Series | Hose Crimp End | 5/8" Hose OD | 1/4" Hose ID X 1/4" Body Size | Socket | NBR Seal | Brass
3SB7 Hansen® By Danfoss | Quick Disconnect Coupling | 3000 Series | Hose Crimp End | 5/8" Hose OD | 1/4" Hose ID X 1/4" Body Size | Socket | NBR Seal | Brass - Image 2
3SB7 Hansen® By Danfoss | Quick Disconnect Coupling | 3000 Series | Hose Crimp End | 5/8" Hose OD | 1/4" Hose ID X 1/4" Body Size | Socket | NBR Seal | Brass - Image 3
3SB7 Hansen® By Danfoss | Quick Disconnect Coupling | 3000 Series | Hose Crimp End | 5/8" Hose OD | 1/4" Hose ID X 1/4" Body Size | Socket | NBR Seal | Brass -Hose Ware House Danfoss Hansen 3000 Series Pneumatic Quick Disconnect Brass Hose Crimp Socket 2 0b16072b ef3d 444b 8c92 fb2064f59b6b
3SB7 Hansen® By Danfoss | Quick Disconnect Coupling | 3000 Series | Hose Crimp End | 5/8" Hose OD | 1/4" Hose ID X 1/4" Body Size | Socket | NBR Seal | Brass -Hose Ware House Danfoss Hansen 3000 Series Pneumatic Quick Disconnect Brass Hose Crimp Socket 3 87300d4f b656 40b1 a11a be5494100114

3SB7 Hansen® By Danfoss | Quick Disconnect Coupling | 3000 Series | Hose Crimp End | 5/8″ Hose OD | 1/4″ Hose ID X 1/4″ Body Size | Socket | NBR Seal | Brass

Original price was: $28.58.Current price is: $20.01.

SKU: AG9ZZ 1481611903012 Category: Tags: , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Features:
  • Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket/female end of line.
Applications & Markets:
  • Industrial Breathing Air
  • General Pneumatics
  • Maintenance & Repair
  • Fluid Transfer
Materials:
  • Standard body material: Brass
  • Standard seal material: Nitrile (NBR)
Specifications:
  • All sizes accept US industrial Interchange; 1/4″ & 1/2″ also accept ISO 6150 Series B and A-A-59439 plugs/males.
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
3000 1/4″ 138 bar 2,000 psi 552 bar 8,000 psi 680 lpm 24 gpm
Interchangeability
All Sizes 1/4″ & 1/2″
US Industrial Interchange ISO 6150 Series B
A-A-59439
(former MIL-C-4109)
3SB7 Hansen® By Danfoss | Quick Disconnect Coupling | 3000 Series | Hose Crimp End | 5/8" Hose OD | 1/4" Hose ID X 1/4" Body Size | Socket | NBR Seal | Brass -Hose Ware House
3SB7 Hansen® By Danfoss | Quick Disconnect Coupling | 3000 Series | Hose Crimp End | 5/8" Hose OD | 1/4" Hose ID X 1/4" Body Size | Socket | NBR Seal | Brass -Hose Ware House
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
3000 Series | Sockets
Part Number Coupling Type Body Size Hose ID Hose OD End Type Material Figure Dimensions
A B Hex
3SA0 Socket/Female 1/4″ 3/16″ 7/16″ Hose Crimp Brass 1 2.65″
(67.31mm)		 1.19″
(30.23mm)		 0.56″
(14.22mm)
3SB1 Socket/Female 1/4″ 1/4″ 15/32″ Hose Crimp Brass 1 2.72″
(69.09mm)		 1.19″
(30.23mm)		 0.63″
(16.00mm)
3SB3 Socket/Female 1/4″ 1/4″ 1/2″ Hose Crimp Brass 1 2.72″
(69.09mm)		 1.19″
(30.23mm)		 0.63″
(16.00mm)
3SB5 Socket/Female 1/4″ 1/4″ 9/16″ Hose Crimp Brass 1 2.72″
(69.09mm)		 1.19″
(30.23mm)		 0.69″
(17.53mm)
3SB7 Socket/Female 1/4″ 1/4″ 5/8″ Hose Crimp Brass 1 2.72″
(69.09mm)		 1.19″
(30.23mm)		 0.75″
(19.05mm)
3SC5 Socket/Female 1/4″ 5/16″ 9/16″ Hose Crimp Brass 1 2.78″
(70.61mm)		 1.19″
(30.23mm)		 0.69″
(17.53mm)
3SC7 Socket/Female 1/4″ 5/16″ 5/8″ Hose Crimp Brass 1 2.78″
(70.61mm)		 1.19″
(30.23mm)		 0.75″
(19.05mm)
3SC9 Socket/Female 1/4″ 5/16″ 11/16″ Hose Crimp Brass 1 2.78″
(70.61mm)		 1.19″
(30.23mm)		 0.81″
(20.57mm)
3SD5 Socket/Female 1/4″ 3/8″ 9/16″ Hose Crimp Brass 1 2.84″
(72.14mm)		 1.19″
(30.23mm)		 0.69″
(17.53mm)
3SD7 Socket/Female 1/4″ 3/8″ 5/8″ Hose Crimp Brass 1 2.84″
(72.14mm)		 1.19″
(30.23mm)		 0.75″
(19.05mm)
3SD9 Socket/Female 1/4″ 3/8″ 11/16″ Hose Crimp Brass 1 2.84″
(72.14mm)		 1.19″
(30.23mm)		 0.81″
(20.57mm)
3SD11 Socket/Female 1/4″ 3/8″ 3/4″ Hose Crimp Brass 1 2.84″
(72.14mm)		 1.19″
(30.23mm)		 0.88″
(22.35mm)
3000 Series | Plugs
Part Number Coupling Type Body Size Hose ID Hose OD End Type Material Figure Dimensions
C D Hex
3PB1 Plug/Male 1/4″ 1/4″ 15/32″ Hose Crimp Steel 2 2.31″
(58.67mm)		 0.70″
(17.78mm)		 0.63″
(16.00mm)
3PB3 Plug/Male 1/4″ 1/4″ 1/2″ Hose Crimp Steel 2 2.31″
(58.67mm)		 0.70″
(17.78mm)		 0.63″
(16.00mm)
3PB5 Plug/Male 1/4″ 1/4″ 9/16″ Hose Crimp Steel 2 2.31″
(58.67mm)		 0.77″
(19.56mm)		 0.69″
(17.53mm)
3PB7 Plug/Male 1/4″ 1/4″ 5/8″ Hose Crimp Steel 2 2.31″
(58.67mm)		 0.84″
(21.34mm)		 0.75″
(19.05mm)
3PC5 Plug/Male 1/4″ 5/16″ 9/16″ Hose Crimp Steel 2 2.38″
(60.45mm)		 0.77″
(19.56mm)		 0.69″
(17.53mm)
3PC7 Plug/Male 1/4″ 5/16″ 5/8″ Hose Crimp Steel 2 2.38″
(60.45mm)		 0.84″
(21.34mm)		 0.75″
(19.05mm)
3PD5 Plug/Male 1/4″ 3/8″ 9/16″ Hose Crimp Steel 2 2.44″
(61.98mm)		 0.77″
(19.56mm)		 0.69″
(17.53mm)
3PD7 Plug/Male 1/4″ 3/8″ 5/8″ Hose Crimp Steel 2 2.44″
(61.98mm)		 0.84″
(21.34mm)		 0.75″
(19.05mm)
3PD9 Plug/Male 1/4″ 3/8″ 11/16″ Hose Crimp Steel 2 2.44″
(61.98mm)		 0.91″
(23.11mm)		 0.81″
(20.57mm)
3PD11 Plug/Male 1/4″ 3/8″ 3/4″ Hose Crimp Steel 2 2.44″
(61.98mm)		 1.01″
(25.65mm)		 0.88″
(22.35mm)
