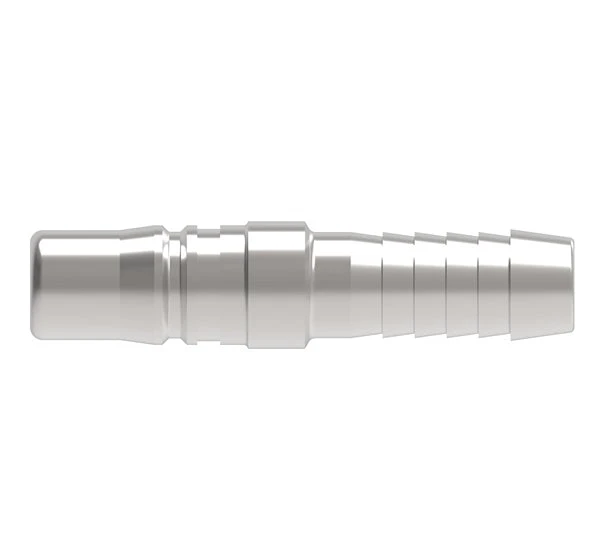

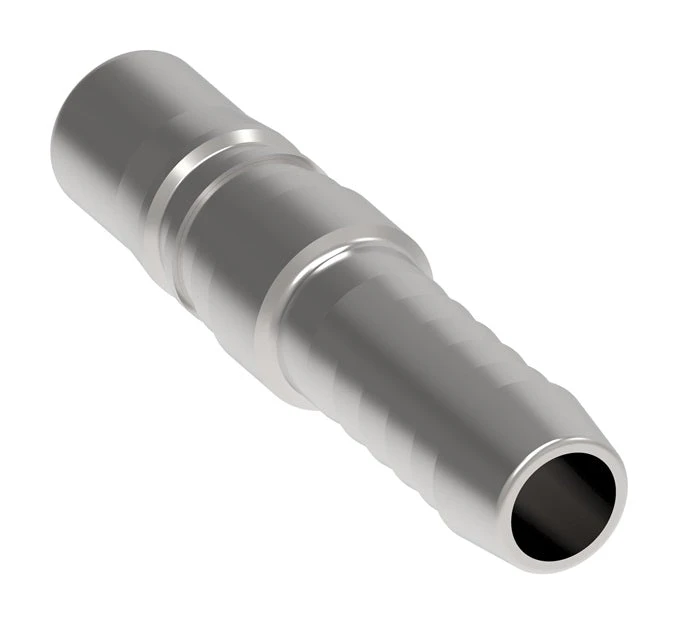

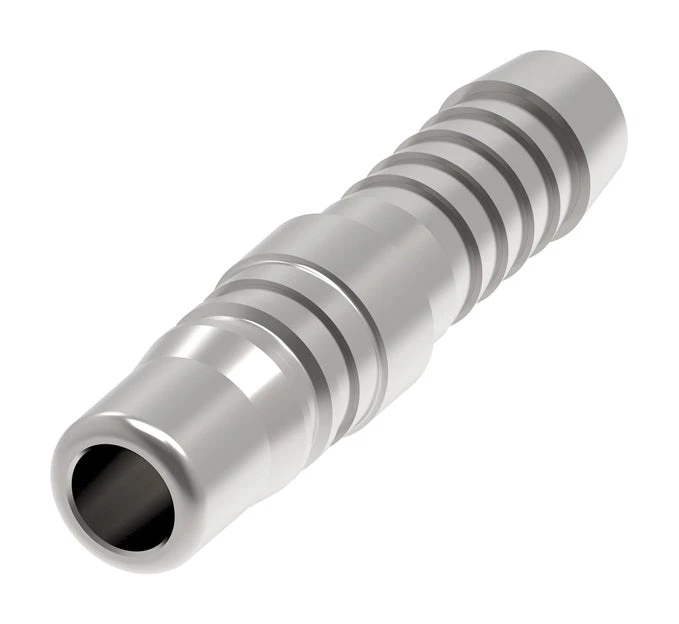

3L17 Hansen® By Danfoss | Pneumatic Quick Disconnect Coupling | 3RL Series | Hose Barb End | 1/4″ Hose ID X 3/8″ Body Size | Plug | Steel
Original price was: $12.00.$8.40Current price is: $8.40.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Features: |
|
|---|---|
| Applications & Markets: |
|
| Materials: |
|
| Series | Coupling Size | Max. Operating Pressure | Min. Burst Pressure | Rated Flow | |||
|---|---|---|---|---|---|---|---|
| 2RL | 1/4″ | 20 bar | 300 psi | 80 bar | 1,200 psi | 1,350 lpm | 48 scfm |
| 3RL | 3/8″ | 20 bar | 300 psi | 80 bar | 1,200 psi | 2,250 lpm | 80 scfm |
 |
 |
|||||||
|---|---|---|---|---|---|---|---|---|
|
Socket/Female (Figure 1) |
Plug/Male (Figure 2) |
|||||||
| 3RL Series | Socket | ||||||||
| Part Number | Coupling Type | Body Size | Hose ID | End Type | Figure | Dimensions | ||
| A | B | |||||||
| 3R17 | Socket/Female | 3/8″ | 1/4″ | Hose Barb | 1 | 2.85″ (72.4mm) |
1.31″ (33.3mm) |
|
| 3R195 | Socket/Female | 3/8″ | 5/16″ | Hose Barb | 1 | 2.85″ (72.4mm) |
1.31″ (33.3mm) |
|
| 3R22 | Socket/Female | 3/8″ | 3/8″ | Hose Barb | 1 | 2.89″ (73.4mm) |
1.31″ (33.3mm) |
|
| 3R27 | Socket/Female | 3/8″ | 1/2″ | Hose Barb | 1 | 2.81″ (71.4mm) |
1.31″ (33.3mm) |
|
| 3R32 | Socket/Female | 3/8″ | 3/4″ | Hose Barb | 1 | 3.66″ (93.0mm) |
1.31″ (33.3mm) |
|
| 3RL Series | Plugs | ||||||||
| Part Number | Coupling Type | Body Size | Hose ID | End Type | Figure | Dimensions | ||
| C | D | |||||||
| 3L17 | Plug/Male | 3/8″ | 1/4″ | Hose Barb | 2 | 2.16″ (54.9mm) |
0.63″ (16.0mm) |
|
| 3L195 | Plug/Male | 3/8″ | 5/16″ | Hose Barb | 2 | 2.16″ (54.9mm) |
0.63″ (16.0mm) |
|
| 3L195G* | Plug/Male | 3/8″ | 5/16″ | Hose Barb | 2 | 3.11″ (79.0mm) |
0.98″ (24.9mm) |
|
| 3L22 | Plug/Male | 3/8″ | 3/8″ | Hose Barb | 2 | 2.16″ (54.9mm) |
0.75″ (19.1mm) |
|
| 3L22G* | Plug/Male | 3/8″ | 3/8″ | Hose Barb | 2 | 3.11″ (79.0mm) |
0.98″ (24.9mm) |
|
| 3L27 | Plug/Male | 3/8″ | 1/2″ | Hose Barb | 2 | 2.16″ (54.9mm) |
0.81″ (20.6mm) |
|
| 3L27G* | Plug/Male | 3/8″ | 1/2″ | Hose Barb | 2 | 3.11″ (79.0mm) |
0.98″ (24.9mm) |
|
| 3L32 | Plug/Male | 3/8″ | 3/4″ | Hose Barb | 2 | 3.13″ (79.5mm) |
1.00″ (25.4mm) |
|
| 3L32G* | Plug/Male | 3/8″ | 3/4″ | Hose Barb | 2 | 3.96″ (100.6mm) |
0.98″ (24.9mm) |
|
* With Bleeder Ball Check – Reduces Hose Whip
