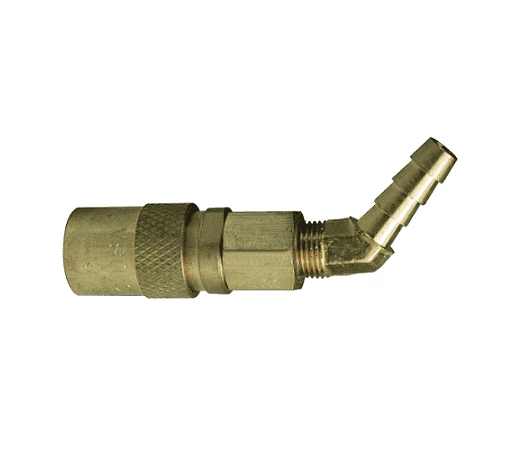

3CM4S4-B Dixon Valve Brass CM-Series Quick Disconnect 3/8″ Industrial Mold Interchange Valved Hydraulic Coupler – 45 Deg. – Hose Barb – 1/2″ Hose ID

Original price was: $12.99.Current price is: $9.09.

SKU: AG9ZZ 1482359898148 Categories: Fittings & Clamps, Quick Disconnects with Barb Tags: All-categories, Call_for_price, CM-Series Industrial Mold Interchange, CM-Series Industrial Mold Interchange Valved Couplers (45 deg. Hose Barb), Collection-lvl1_All Hose Ends, Collection-lvl2_Quick Disconnects, Collection-lvl3_Hydraulic Quick Disconnects, Dixon Quick Disconnect Couplings, Hydraulic Couplings, Hydraulic Hoses and Fittings, LegacyProductTypeReplacement_All Categories, Material_brass, Matrixify1st50kProducts, Quick-disconnects, Shape_45-deg-elbow

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Specifications:
Rated pressure for connected Brass Valved Coupler and Brass Plug: 300 PSI (20 bar) Maximum Working and 6,700 PSI (450 bar) Burst Rated pressure for connected Brass Valved Coupler and Steel Plug: 500 PSI (35 bar) Maximum Working and 6,100 PSI (400 bar) Burst
Construction:
Machined components are manufactured using solid bar stock. Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
Compatibility & Interchange Data:
Mold Coolant Interchange Foster Series- FJT Hansen Flo-Temp Tomco MC-Series Parker Moldmate DME Jiffy-Tite
Seal Components:
Silicon gaskets and valve O-rings are standard, providing a temperature range of -90 deg. F to +400 deg. F (-68 deg. C to +205 deg. C).
Other Components:
CM-Series Coupler Rigid Dust Plugs CM-Series Industrial Mold Interchange Coupler Seal Kits
Notes:
Maximum working and burst pressure is based on a coupled set, contact Dixon for pressure ratings. WARNING: Brass products contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Part Number	Size	Hose ID	Material	Length	Max. OD	Hex	Weight (Lbs.)
2CM4S2-B	1/4″	1/4″	brass	2.87″	0.69″	N/A	0.1300
2CM4S2.5-B	1/4″	5/16″	brass	2.89″	0.69″	N/A	0.1300
2CM4S3-B	1/4″	3/8″	brass	2.91″	0.69″	N/A	0.1400
3CM4S3-B	3/8″	3/8″	brass	3.83″	0.95″	N/A	0.3600
3CM4S4-B	3/8″	1/2″	brass	3.86″	0.95″	N/A	0.3600
