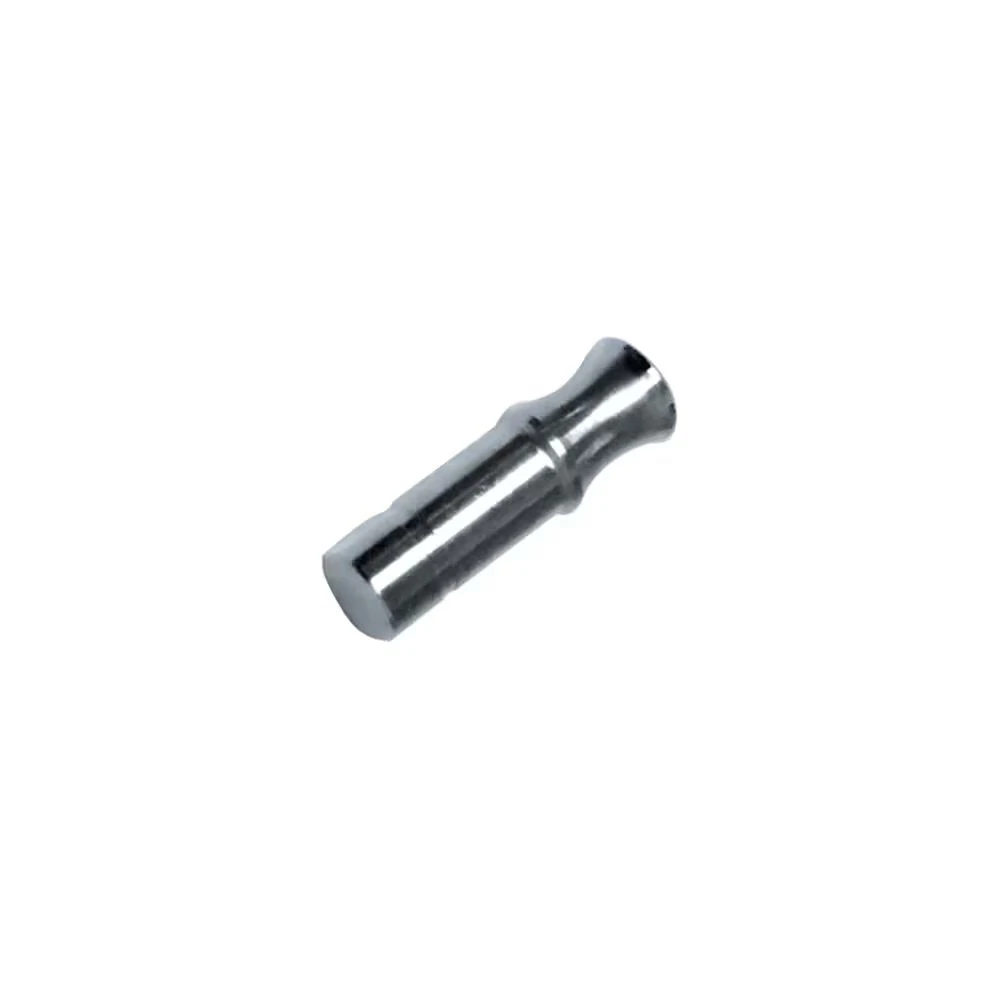

3826 06 00 By Parker | Legris Blanking Plug | 6 Mm Tube Size X 8 Mm Tube Size | 30.4 Mm Length | 316L Stainless Steel | Pack Of 5

Compatible Fluids: All fluids compatible with the fitting component materials
Working Pressure: Vacuum to 30 bar. (20 bar: 3879 and 3889)
Working Temperature: -25°C to +150°C

Name: Navigate the Latest Fashion Waves with Our 3826 06 00 By Parker | Legris Blanking Plug | 6 Mm Tube Size X 8 Mm Tube Size | 30.4 Mm Length | 316L Stainless Steel | Pack Of 5 in Delaware United States.
SKU: AG9ZZ 14646574907762
Price: 59.09 USD
Availability: InStock

Original price was: $84.41.Current price is: $59.09.

SKU: AG9ZZ 14646574907762 Categories: Adapters & More, Dust Caps & Plugs Tags: Created in 2024, Matrixify3rd50kProducts

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Technical Characteristics:	Compatible Fluids: All fluids compatible with the fitting component materials Working Pressure: Vacuum to 30 bar. (20 bar: 3879 and 3889) Working Temperature: -25°C to +150°C
Advantages:	Resistance to corrosion thanks to the component material Suitable for permanent food contact Suitable for industrial cleaning agents and detergents Hygienic external design, for reducing retention zones
Regulations:	ISO 14743 RoHS REACH FDA: 21 CFR PED
Component Materials:	Body: Stainless Steel 316L Adapter: Stainless Steel 316L Collet: Stainless Steel 316L Protection Washer: Stainless Steel 316L Seals: FKM


Part Number	ØD1	ØD2	L	L1	L2	Kg
3826 04 00	4 mm	6 mm	25 mm	17 mm	11 mm	.003 Kg
3826 06 00	6 mm	8 mm	30.4 mm	19.5 mm	13.5 mm	.007 Kg
3826 08 00	8 mm	10 mm	33 mm	20 mm	14 mm	.014 Kg
3826 10 00	10 mm	12 mm	10 mm	25 mm	17 mm	.025 Kg
3826 12 00	12 mm	14 mm	43 mm	26 mm	19 mm	.038 Kg
