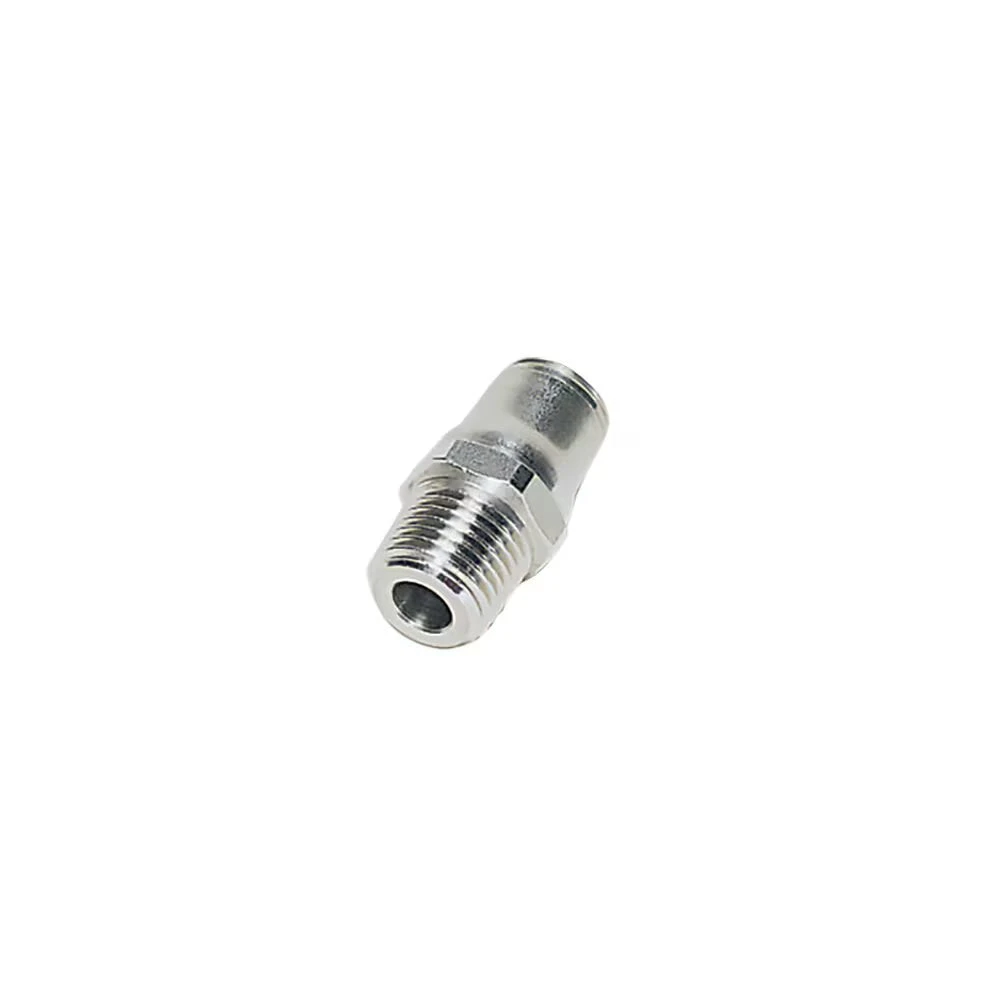

3805 12 13 By Parker | Legris Stud Fitting | 12 Mm Tube Size X 1/4" Male BSPT Thread | 22 Mm Hex | Straight | 316L Stainless Steel | Pack Of 2

3805 12 13 By Parker | Legris Stud Fitting | 12 Mm Tube Size X 1/4″ Male BSPT Thread | 22 Mm Hex | Straight | 316L Stainless Steel | Pack Of 2

Original price was: $132.38.Current price is: $92.67.

SKU: AG9ZZ 14646568976754 Categories: , Tags: ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Technical Characteristics:
  • Compatible Fluids: All fluids compatible with the fitting component materials
  • Working Pressure: Vacuum to 30 bar. (20 bar: 3879 and 3889)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Resistance to corrosion thanks to the component material
  • Suitable for permanent food contact
  • Suitable for industrial cleaning agents and detergents
  • Hygienic external design, for reducing retention zones
Regulations:
  • ISO 14743
  • RoHS
  • REACH
  • FDA: 21 CFR
  • PED
Component Materials:
  • Body: Stainless Steel 316L
  • Adapter: Stainless Steel 316L
  • Collet: Stainless Steel 316L
  • Protection Washer: Stainless Steel 316L
  • Seals: FKM
3805 12 13 By Parker | Legris Stud Fitting | 12 Mm Tube Size X 1/4" Male BSPT Thread | 22 Mm Hex | Straight | 316L Stainless Steel | Pack Of 2 -Hose Ware House Screenshot 2024 09 13 162206
Part Number ØD C F F1 H Kg
3805 04 10 4 mm 1/8″ 10 mm 3 mm 14.5 mm .008 Kg
3805 04 13 4 mm 1/4″ 14 mm 3 mm 14.5 mm .015 Kg
3805 06 10 6 mm 1/8″ 13 mm 4 mm 14 mm .012 Kg
3805 06 13 6 mm 1/4″ 14 mm 4 mm 16.5 mm .018 Kg
3805 08 10 8 mm 1/8″ 15 mm 5 mm 19 mm .014 Kg
3805 08 13 8 mm 1/4″ 15 mm 6 mm 18 mm .018 Kg
3805 08 17 8 mm 3/8″ 17 mm 6 mm 18.5 mm .025 Kg
3805 10 13 10 mm 1/4″ 19 mm 6 mm 24 mm .029 Kg
3805 10 17 10 mm 3/8″ 19 mm 6 mm 22.5 mm .030 Kg
3805 12 13 12 mm 1/4″ 22 mm 7 mm 25 mm .034 Kg
3805 12 17 12 mm 3/8″ 22 mm 8 mm 24 mm .040 Kg
3805 12 21 12 mm 1/2″ 22 mm 10 mm 23 mm .046 Kg
