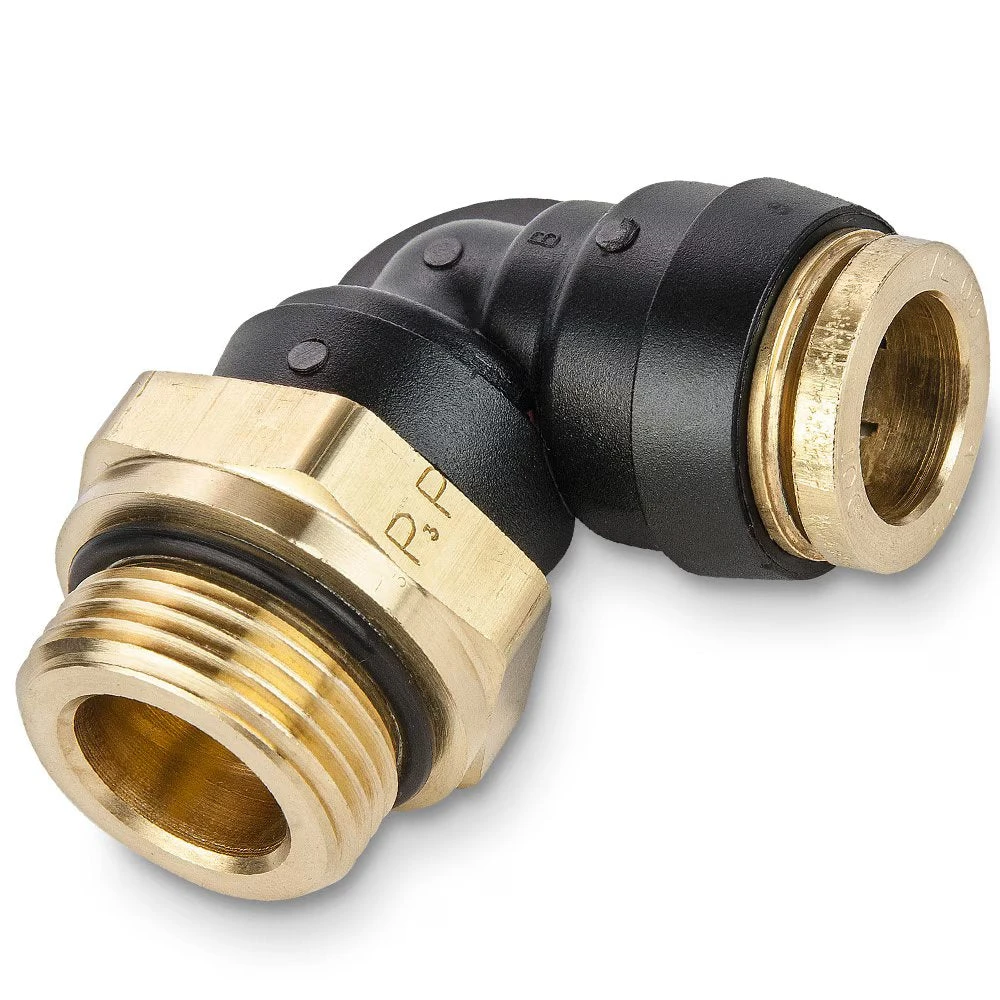

369PTCR-6-MA22 By Parker | Threaded Fitting | 3/8″ Rigid Swivel Push-to-Connect X M22X1.5 Male M22 Threads | 1-1/16″ Hex | 90° Elbow | Composite

Original price was: $17.52.Current price is: $12.26.

SKU: AG9ZZ 14646440296818 Categories: Fittings & Clamps, Tube Fittings Tags: Created in 2024, Matrixify3rd50kProducts

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Specification:
Product Features:	Brass Collet HNBR O-ring Stainless Steel Tube Support or Brass Meets D.O.T. FMVSS571.106 Meets SAE J2494-3 Composite Body – Strong, Lightweight, Compact and Impact Resistant Plug-in configurations
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Air Brakes Air Tanks Air Ride Sliders Tire Inflation Primary & Secondary Air Lines Cab Controls
Pressure Range:	15 to 145 psi (1.0 to 9.9 bar)
Temperature Range:	+32° to +158° F (0 to +70° C)
Compatible Tubing:	SAE J844 Type A & B nylon tubing


Part Number	Tube Size	Thread	Hex (B)	L	M
369PTCR-4-MA12	1/4″	M12x1.5	11/16″	.74″	1.13″
369PTCR-4-MA16	1/4″	M16x1.5	7/8″	.74″	1.16″
369PTCR-4-MA22	1/4″	M22x1.5	1-1/16″	.74″	1.28″
369PTCR-6-MA12	3/8″	M12x1.5	3/4″	1.01″	1.22″
369PTCR-6-MA16	1/4″	M16x1.5	7/8″	1.01″	1.29″
369PTCR-6-MA22	3/8″	M22x1.5	1-1/16″	1.01″	1.28″
369PTCR-8-MA12	1/2″	M12x1.5	15/16″	1.13″	1.39″
369PTCR-8-MA16	1/2″	M16x1.5	15/16″	1.13″	1.41″
369PTCR-8-MA22	1/2″	M22x1.5	1-1/16″	1.13″	1.40″
369PTCR-10-MA12	5/8″	M12x1.5	1-1/16″	1.36″	1.63″
369PTCR-10-MA16	5/8″	M16x1.5	1-1/16″	1.36″	1.58″
369PTCR-10-MA22	5/8″	M22x1.5	1-1/16″	1.36″	1.57″
369PTCR-12-MA22	3/4″	M12x1.5	1-3/16″	1.47″	1.84″
