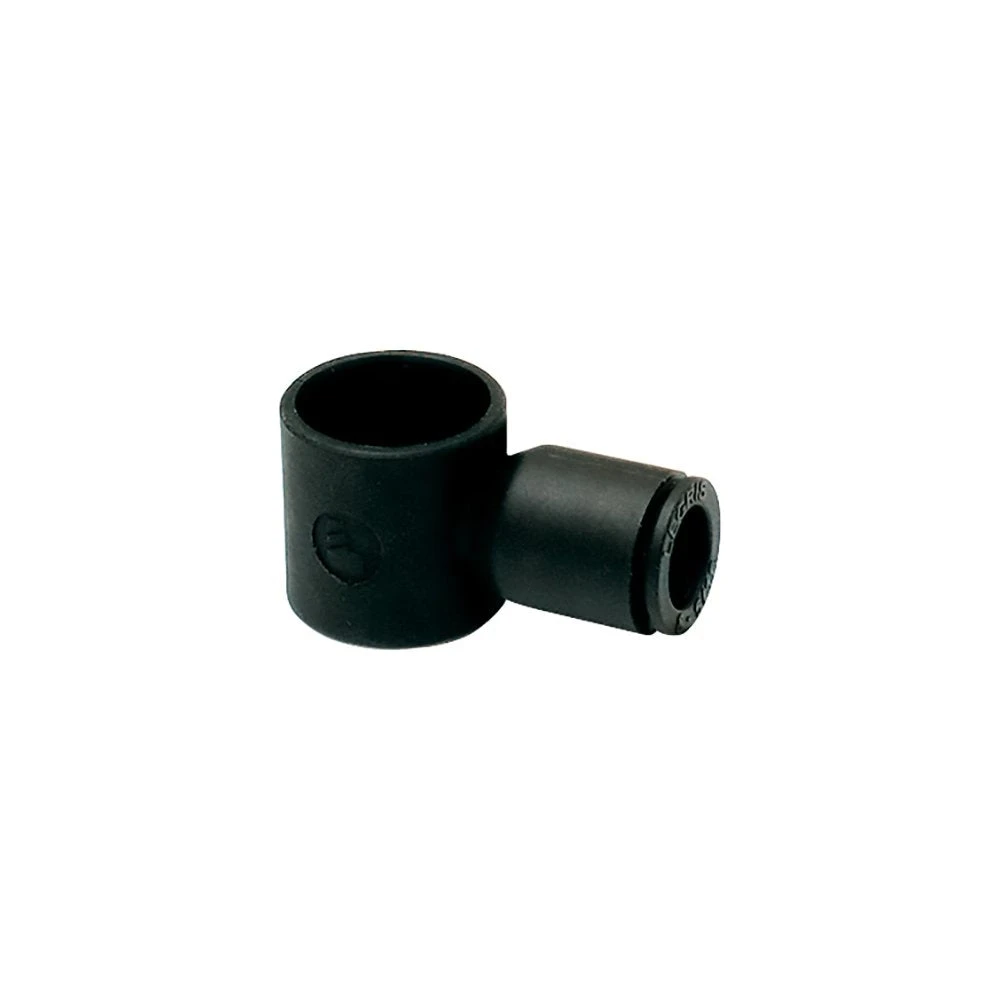

3538 10 17 By Parker | Legris Banjo Fitting Body | 10 Mm Tube Size X 3/8" Male Thread | 42.5 Mm Length | Banjo | Polymer | Pack Of 10

3538 10 17 By Parker | Legris Banjo Fitting Body | 10 Mm Tube Size X 3/8″ Male Thread | 42.5 Mm Length | Banjo | Polymer | Pack Of 10

Original price was: $61.31.Current price is: $42.92.

SKU: AG9ZZ 14646549938546 Categories: Fittings & Clamps, Tube Fittings Tags: Created in 2024, Matrixify3rd50kProducts

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Screwed from above, for minimum space between connections 360° orientable Stacking of banjo bodies to allow construction of 2 to 6 outlets
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Bolt: Nickel-plated brass, with or without pre-coating, depending on the configuration Body: Technical Polymer O-Ring: NBR Release Button Technical Polymer


Part Number	ØD	C	G	H	L	L1	Kg
3538 04 19	4 mm	M5x0.8	8.5 mm	13 mm	16 mm	5 mm	.001 Kg
3538 04 10	4 mm	1/8″	10.5 mm	14.5 mm	18.5 mm	7 mm	.002 Kg
3538 06 19	6 mm	M5x0.8	11 mm	13 mm	18.5 mm	5 mm	.002 Kg
3538 06 10	6 mm	1/8″	10.5 mm	14.5 mm	20 mm	7 mm	.002 Kg
3538 06 13	6 mm	1/4″	13.5 mm	18 mm	22 mm	9.5 mm	.003 Kg
3538 08 10	8 mm	1/8″	13.5 mm	14.5 mm	25 mm	7 mm	.003 Kg
3538 08 13	8 mm	1/4″	13.5 mm	18 mm	27 mm	9.5 mm	.004 Kg
3538 08 17	8 mm	3/8″	13.5 mm	21.5 mm	29 mm	11.5 mm	.005 Kg
3538 10 13	10 mm	1/4″	16 mm	18 mm	29 mm	9.5 mm	.005 Kg
3538 10 17	10 mm	3/8″	16 mm	21.5 mm	31 mm	11.5 mm	.006 Kg
3538 12 17	12 mm	3/8″	19 mm	21.5 mm	34.5 mm	11.5 mm	.008 Kg
