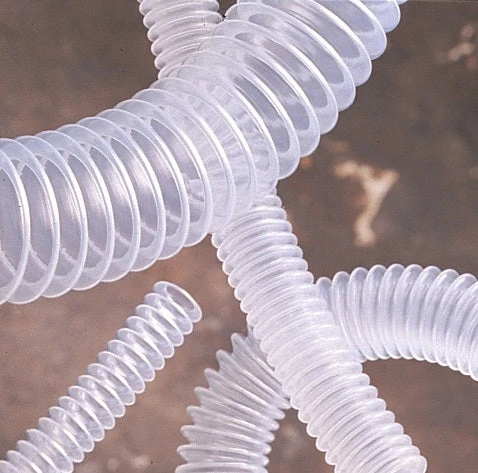

3400460-12 CORRTEF™ By NewAge | Corrugated FEP Tubing | NO CUFFS | 7/8″ ID X 1-1/4″ OD X 0.03″ Wall | Clear | 12ft

SPECIFICATIONS

Application:	Chemical Processing, Corrosives, Deionized Water, Hot Glue, Laboratory Uses, Paint Spray, Pure Fluid Transfer, Solvent Transfer	Tube:	Fluoropolymer FEP
Reinforcement:	N/A	Cover:	N/A
Temperature Range:	Min: -100°F Max: 200°F	Color:	Clear
Opacity:	Transparent	Specifications	FDA
Other Features:
Made from FEP fluoropolymer tubing Corrugations allow a nearly zero bend radius – easily flexed Can be extended or compressed without affecting the tube’s I.D. Made without plasticizers which can leach into critical streams Made from FDA compliant materials Has all the chemical and electrical properties of straight-walled FEP tubing May be overbraided with Kevlar® for higher pressures^ Made in the USA
Notes:
Vacuum Service at 72°F: 29.9 in./Hg. Bend Diameter at 72°F: 1/2 of tubing I.D. Optimal flow is achieved and turbulence minimized by passing fluids through CORRTEF in the direction of the corrugation angles (as noted). CORRTEF is heat sealable, and the cuffs (straight ends) are made to accept standard barbed fittings. The end may be flared or expanded to permit shrink-tight connections. CORRTEF is manufactured in an industrial atmosphere and should be properly sterilized for clean-flow applications. For optimal cleaning of CORRTEF the tube should be stretched to its maximum length and held vertically (direction of flow: down). NOTE: Due to the annular corrugations, it may not be possible to remove all traces of particulate from CORRTEF, even under optimal cleaning conditions. ^Overbraiding with Kevlar® will permit a minimum increase of 6X the listed pressures. Kevlar overbraiding is available for sizes up to 7/8″ I.D. – contact support.

Physical Properties**
	Corrugated FEP
Hardness, Shore D	55-60
Tensile Strength, psi	2800-5000
Elongation at Break, %	250-330
Brittle Temperature	-450°F
Min. Continuous Op. Temp. for Tubing^^	-100°F
Max. Continuous Op. Temp. for Tubing zero pressure ^^	200°F

**Values listed are typical and are meant only as a guide to aid in design. Field testing should be performed to find the actual values for the application.
^^Temperatures are for standard extruded non-corrugated tubing.

Part Number	Max. Inside Diameter (in.) (A)	Nominal Cuff Lengths (in.) (B)	Wall Thickness (in.)	Corrugation OD (in.) (D)	Max. Available Lengths including cuffs (ft) (E)	Working PSI (at 72°F)	Burst PSI (at 72°F)
3400075-12	0.250″ (1/4″)	0.750″ (3/4″)	0.015″	0.375″ (3/8″)	12ft	62 PSI	248 PSI
3400152-12	0.375″ (3/8″)	1.000″	0.02″	0.625″ (5/8″)	12ft	50 PSI	200 PSI
3400229-12	0.500″ (1/2″)	1.000″	0.025″	0.750″ (3/4″)	12ft	42 PSI	168 PSI
3400306-12	0.625″ (5/8″)	1.000″	0.025″	0.938″ (15/16″)	12ft	37 PSI	148 PSI
3400383-12	0.750″ (3/4″)	1.500″ (1-1/2″)	0.03″	1.063″ (1-1/16″)	12ft	30 PSI	120 PSI
3400460-12	0.875″ (7/8″)	1.500″ (1-1/2″)	0.03″	1.250″ (1-1/4″)	12ft	25 PSI	100 PSI
3400537-12	1.000″	2.000″	0.035″	1.438″ (1-7/16″)	12ft	20 PSI	80 PSI
3400691-12	1.500″ (1-1/2″)	2.000″	0.035″	1.813″ (1-13/16″)	12ft	15 PSI	60 PSI
3400768-12	2.000″	2.000″	0.04″	2.625″ (2-5/8″)	12ft	12 PSI	48 PSI

* Non-stock item; lead times and minimums may apply – contact support
The retracted length is approximately 1/4 of the maximum expanded length excluding tails.
Wall thickness for all standard sizes is 1/16. Tail length (item C) is six inches for all listed sizes.
