Sale!
33808B-Y28 Weatherhead By Danfoss | Male Connector Field Attachable Fitting | 338 'B' Series DOT | -08 Male Pipe (PTF SAE Short) X -08 Reusable Hose End | Brass
33808B-Y28 Weatherhead By Danfoss | Male Connector Field Attachable Fitting | 338 'B' Series DOT | -08 Male Pipe (PTF SAE Short) X -08 Reusable Hose End | Brass - Image 2
33808B-Y28 Weatherhead By Danfoss | Male Connector Field Attachable Fitting | 338 'B' Series DOT | -08 Male Pipe (PTF SAE Short) X -08 Reusable Hose End | Brass - Image 3

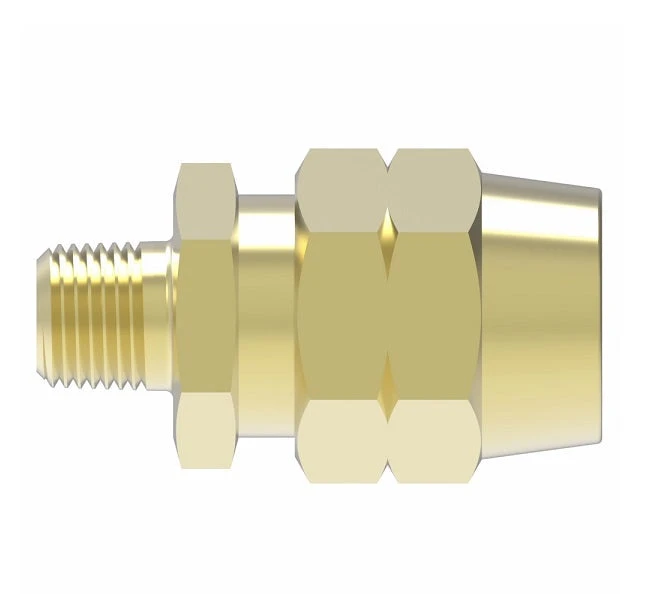

33808B-Y28 Weatherhead By Danfoss | Male Connector Field Attachable Fitting | 338 'B' Series DOT | -08 Male Pipe (PTF SAE Short) X -08 Reusable Hose End | Brass -Hose Ware House Danfoss Weatherhead 33806B DOT Fitting 2 371fde12 458a 4a51 9998 a541128ae141

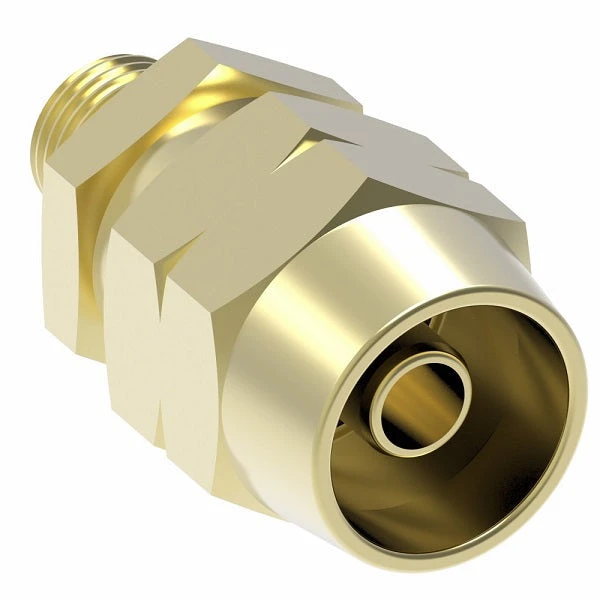

33808B-Y28 Weatherhead By Danfoss | Male Connector Field Attachable Fitting | 338 'B' Series DOT | -08 Male Pipe (PTF SAE Short) X -08 Reusable Hose End | Brass -Hose Ware House Danfoss Weatherhead 33806B DOT Fitting 3 42db3781 3153 494b 9e78 4db073bd895f

33808B-Y28 Weatherhead By Danfoss | Male Connector Field Attachable Fitting | 338 ‘B’ Series DOT | -08 Male Pipe (PTF SAE Short) X -08 Reusable Hose End | Brass

Original price was: $27.91.Current price is: $19.54.

SKU: AG9ZZ 8200203600037 Categories: , Tags: , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Notes:
  • Pressure: Determined by maximum working pressure for hose size.
  • Parts are stamped with DOT.
  • Label Set: FS-800
  • To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly.
Material:
  • CA360 Brass
Compatible Hose:
  • EC038
Assembly instructions:
  • 1. Slide nut and sleeve onto hose. Make sure bevel edge of sleeve faces out toward Fitting.
  • 2. Push hose into Fitting until it bottoms.
  • 3. Screw nut until contact is made with body hex.
  • 33808B-Y28 Weatherhead By Danfoss | Male Connector Field Attachable Fitting | 338 'B' Series DOT | -08 Male Pipe (PTF SAE Short) X -08 Reusable Hose End | Brass -Hose Ware House
Part Number Hose I.D. Pipe Size Over All Length Hose Cut-Off Factor
33806B-Y24 3/8″ 1/4″ 2.26″ 0.69
33806B-Y26 3/8″ 3/8″ 2.35″ 0.81
33806B-Y28 3/8″ 1/2″ 2.45″ 0.94
33808B-Y26 1/2″ 3/8″ 2.24″ 0.75
33808B-Y28 1/2″ 1/2″ 2.40″ 0.94

Note: Drawings may differ from actual parts.
