SPECIFICATIONS
| Application: | Fluids, Agriculture, Industrial | ||
|---|---|---|---|
| Product Manual: | 3″ & 4″ Cast Iron Centrifugal Pump Instruction Manual | Video: | N/A |
| Replacement Parts: | Replacement Parts for 3″ 333 Series Cast Iron Pumps with Electric or Gas Engines | ||
| Features: | |||
| |||
| Notes: | |||
| |||
| Part Number | Description | Horsepower | ||
|---|---|---|---|---|
| 3″ 333 Series Cast Iron Pumps with Electric Motors | ||||
| 333PIE15 | 3″ Cast Iron Pump w/15 HP Three Phase Electric Motor | 15 HP | (Made to Order) | |
| 3″ 333 Series Cast Iron Pumps with Gas Engines | ||||
| 333PIH13 | 3″ Cast Iron Pump w/13 HP Honda® Engine w/ electric Start & Pull Rope | 13 HP | (Made to Order) | |
| 3″ 333 Series Cast Iron Bearing Pedestal | ||||

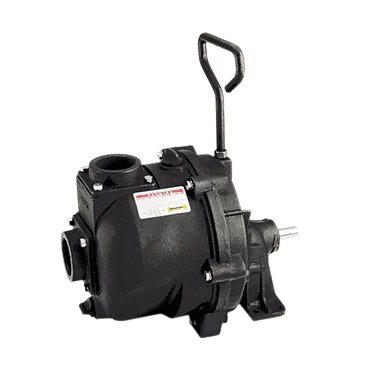

| 333PBI | 3″ Cast Iron Bearing Pedestal w/1″ Shaft | N/A | (Made to Order) | |
| 3″ 333 Series Cast Iron Pump Only | ||||
| 333POI | 3″ Cast Iron Pump Only w/1″ x 3 5.8″ Shaft & 5 Vane Impeller Unassembled | N/A | (Made to Order) | |
| Replacement Parts for 333PIH13 & 333PBI | |||
|---|---|---|---|
| Item | Part Number | Description | Quantity Required |
| Not Shown | 16099 | Impeller Removal Bolt | 1 |
| 1 | 18500 | Bearing Pedestal (333PBI) | 1 |
| 2 | 16704 | Rear Bracket | 1 |
| 3 | 16713 | Mechanical Seal | 1 |
| 4 | 16710 | O-Ring | 1 |
| 5 | 17704 | 3/8″ – 16 x 1.25″ SS Cap Screw (333PBI) | 4 |
| 6 | V20018 | 3/8″ SS Lock Washer | 17 |
| 7 | 16773 | 3″ Impeller (333PBI) | 1 |
| 7 | 16774 | 3″ Impeller (333PIH13 & 333POI) | 1 |
| 8 | 16901 | 1/4″ SQ. 3/4″ Key Stock | 1 |
| 9 | 16765 | Impeller Bolt (333PBI) | 1 |
| 9 | 13765 | Impeller Bolt (333PPIH13) | 1 |
| 10 | 16019 | Gasket Set | 1 |
| 11 | 16702 | Volute | 1 |
| 13 | 16733 | Body | 1 |
| 14 | 18511 | Adapter Plate (333PBI) | 1 |
| 15 | 18512 | 3/8″ – 16 x 0.875″ SS HHCS (333PBI) | 4 |
| Not Shown | 16751 | Bracket Shim Set | 1 |
| Not Shown | 16752 | Impeller Shim | 1 |
| Not Shown | 18033 | Handle | 1 |
| Not Shown | 18034 | 5/8″ SS Jam Nut | 1 |
| 16 | 16001 | Outlet Flange | 1 |
| 17 | 16003 | Inlet Flange | 1 |
| 18 | 16706 | FKM (viton type) Inlet Gasket with Check | 1 |
| 19 | 16011 | FKM (viton type) Outlet Gasket | 1 |
| 20 | 13777 | 3/4″ Plug | 2 |
| 21 | 18027 | 3/8″ – 16 x 1.50″ HHCS (333PIH13) | 8 |
| 22 | V20018 | 3/8″ SS Lock Washer | 8 |
| 23 | 13778 | O-Ring | 2 |
