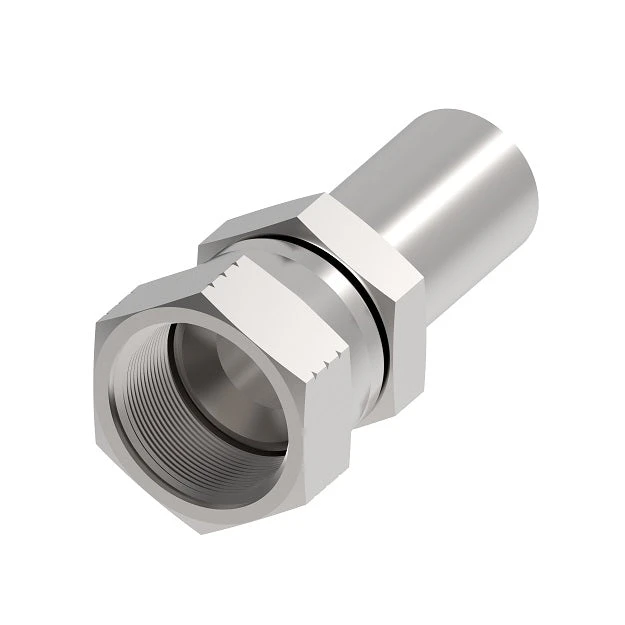

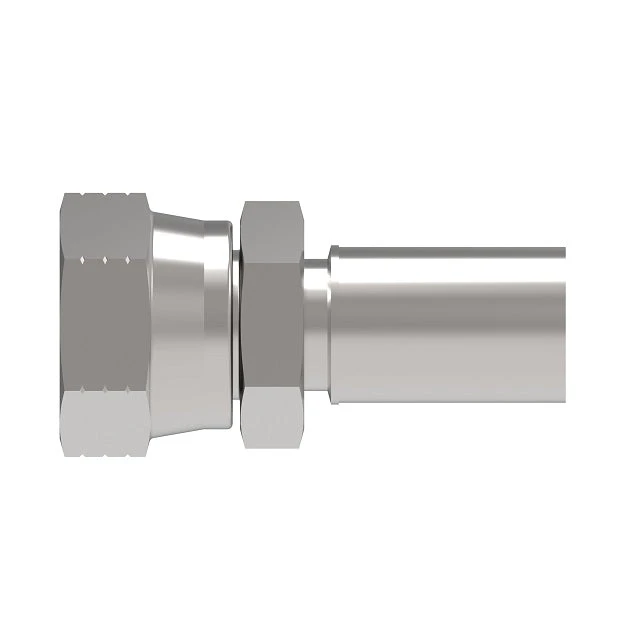

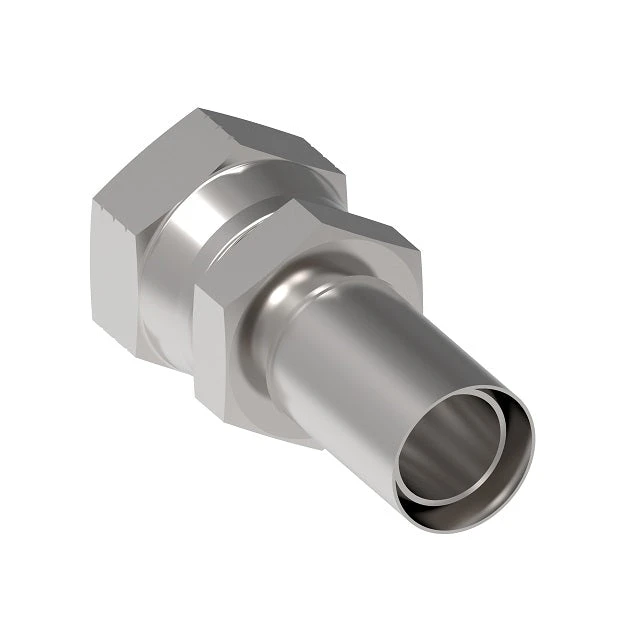

| About: | |||
|---|---|---|---|
| |||
| WARNING: | |||
| |||
| Compatible Hose: | |||
|
![]() |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number Insert: 316 S.S. Nut & Collar: 304 S.S. |
Part Number Insert: 316 S.S. Nut: 304 S.S. Collar: Carbon Steel |
Part Number All Components: Carbon Steel |
Hose Size | Hose ID | Thread | Overall Length A |
Hose Cut-Off Factor** | Nominal ID |
| 12-612-A | 12-612-B | 12-612-C | -12 | 3/4″ | 1-1/6-12 | 2.01″ | 1.46″ | 0.625″ |
| 16-616-A | 16-616-B | 16-616-C | -16 | 1″ | 1-5/16-12 | 2.14″ | 1.55″ | 0.828″ |
| – | – | 20-620-C | -20 | 1-1/4″ | 1-5/8-12 | 2.20″ | 1.64″ | 1.078″ |
| 24-624-A | – | 24-624-C | -24 | 1-1/2″ | 1-7/8-12 | 2.27″ | 1.81″ | 1.305″ |
| – | – | 32-632-C | -32 | 2″ | 2-1/2-12″ | 2.62″ | 2.10″ | 1.781″ |
** To determine the correct length of hose, subtract the cut-off factor for each end fitting from the overall length of assembly.
Note: Drawings may differ from actual parts.
