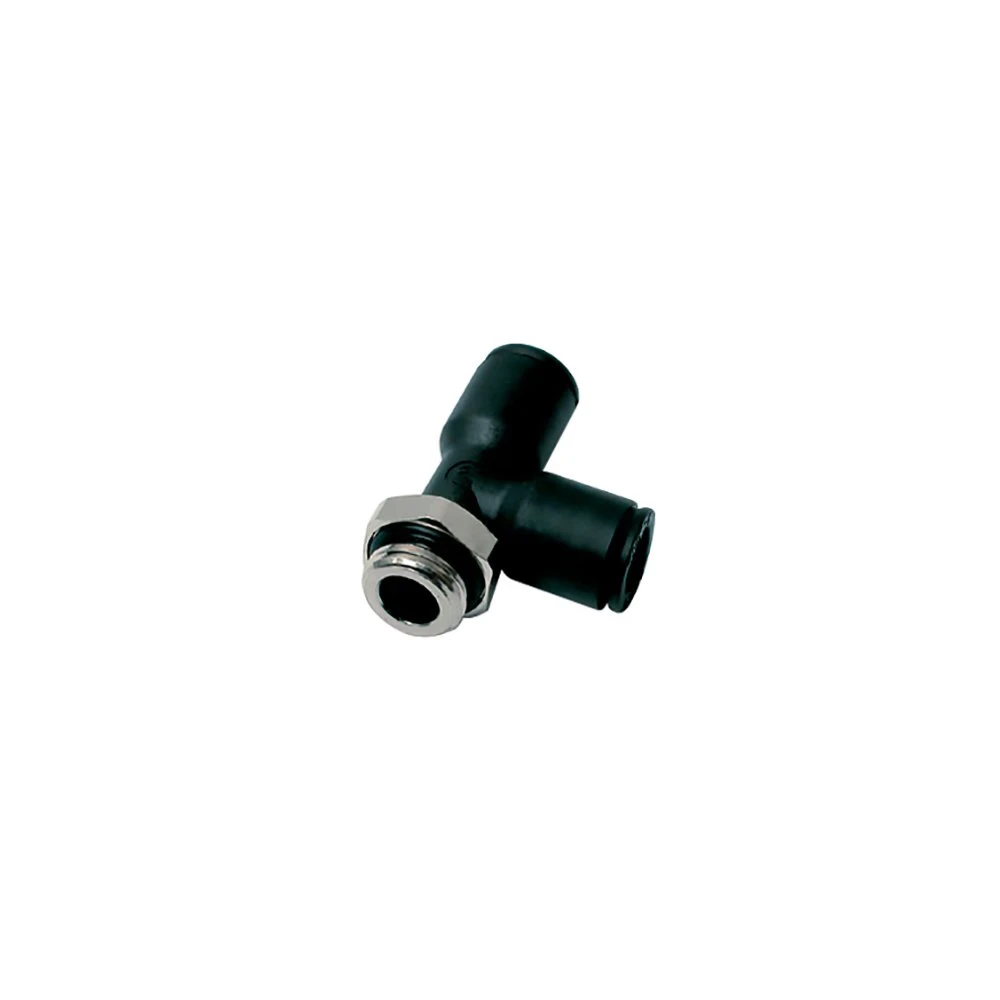

3193 06 19 By Parker | Legris Stud Fitting | 6 Mm Push-to-Connect X M5x0.8 Male Swivel M5 Thread | 8 Mm Hex | Tee | Polymer | Pack Of 10

3193 06 19 By Parker | Legris Stud Fitting | 6 Mm Push-to-Connect X M5x0.8 Male Swivel M5 Thread | 8 Mm Hex | Tee | Polymer | Pack Of 10

Original price was: $84.55.Current price is: $59.19.

SKU: AG9ZZ 14646538568050 Categories: Fittings & Clamps, Tube Fittings Tags: Created in 2024, Matrixify3rd50kProducts

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	C	E	F	G	H	H1	L	Kg
3193 04 19	4 mm	M5x0.8	3.5 mm	8 mm	8.5 mm	26 mm	11.5 mm	14.5 mm	.003 Kg
3193 04 10	4 mm	1/8″	5 mm	13 mm	8.5 mm	23 mm	8.5 mm	14.5 mm	.006 Kg
3193 04 13	4 mm	1/4″	5.5 mm	16 mm	8.5 mm	23 mm	8.5 mm	14.5 mm	.011 Kg
3193 06 19	6 mm	M5x0.8	3.5 mm	8 mm	10.5 mm	29.5 mm	12.5 mm	17.5 mm	.004 Kg
3193 06 10	6 mm	1/8″	5 mm	13 mm	10.5 mm	27 mm	10 mm	17.5 mm	.007 Kg
3193 06 13	6 mm	1/4″	5.5 mm	16 mm	10.5 mm	27 mm	10 mm	17.5 mm	.012 Kg
3193 08 10	8 mm	1/8″	4.5 mm	13 mm	13.5 mm	36.5 mm	14 mm	23 mm	.011 Kg
3193 08 13	8 mm	1/4″	5.5 mm	16 mm	13.5 mm	34.5 mm	12 mm	23 mm	.014 Kg
3193 08 17	8 mm	3/8″	5.5 mm	20 mm	13.5 mm	34.5 mm	12 mm	23 mm	.019 Kg
3193 10 13	10 mm	1/4″	5.5 mm	16 mm	16 mm	42 mm	15.5 mm	26.5 mm	.017 Kg
3193 10 17	10 mm	3/8″	5.5 mm	20 mm	16 mm	40.5 mm	14 mm	14 mm	.020 Kg
3193 10 21	10 mm	1/2″	7 mm	24 mm	16 mm	40.5 mm	14 mm	26.5 mm	.029 Kg
3193 12 13	12 mm	1/4″	5.5 mm	16 mm	19 mm	48 mm	17 mm	31 mm	.021 Kg
3193 12 17	12 mm	1/8″	5.5 mm	20 mm	19 mm	46.5 mm	15.5 mm	31 mm	.024 Kg
3193 12 21	12 mm	1/2″	7 mm	24 mm	19 mm	46.5 mm	15.5 mm	31 mm	.033 Kg
3193 14 17	14 mm	3/8″	5.5 mm	20 mm	22 mm	56.5 mm	21.5 mm	35.5 mm	.036 Kg
3193 14 21	14 mm	1/2″	7 mm	24 mm	22 mm	51 mm	16 mm	35.5 mm	.036 Kg
3193 16 17	16 mm	3/8″	7.5 mm	27 mm	27 mm	79.5 mm	41 mm	38.5 mm	.121 Kg
3193 16 21	16 mm	1/2″	9 mm	27 mm	27 mm	79.5 mm	41 mm	38.5 mm	.117 Kg

The body swivels for positioning purposes.
