Sale!

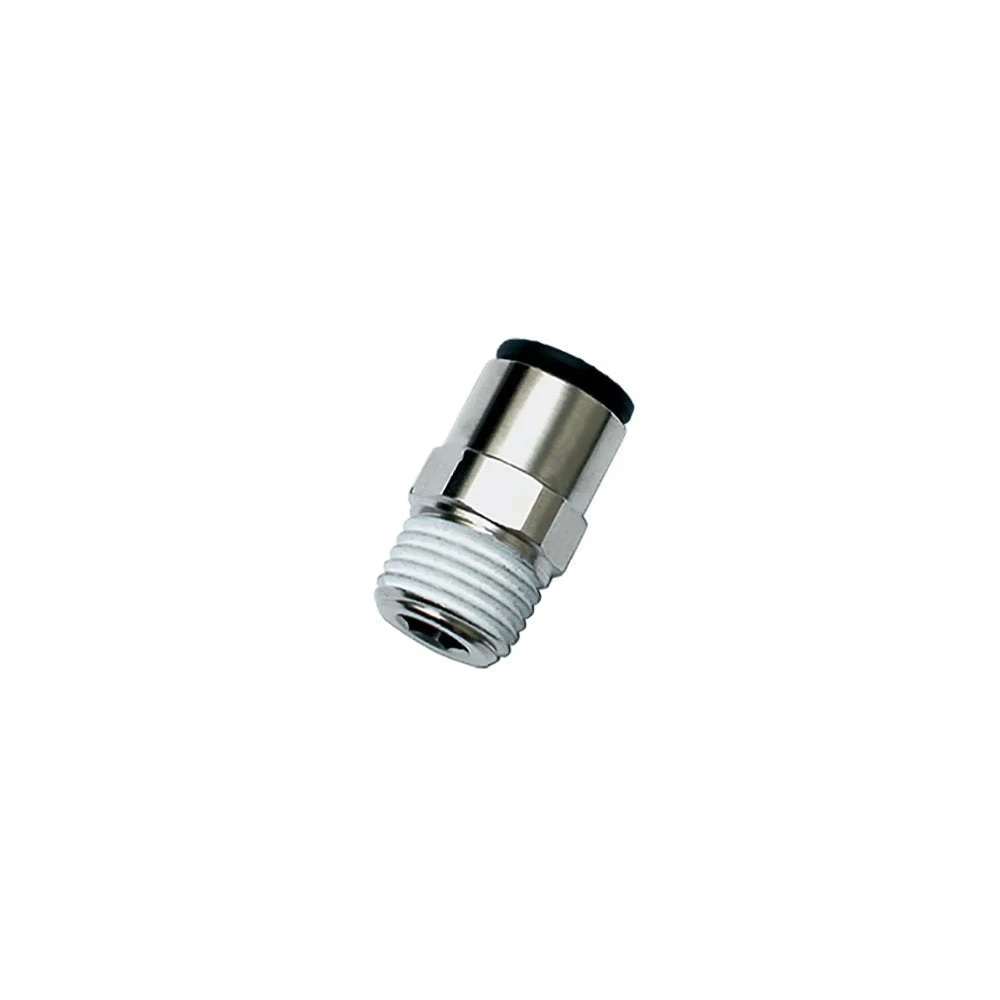

3175 62 22 By Parker | Legris Stud Fitting | 1/2" Push-to-Connect X 1/2" Male NPT Thread | 22 Mm Hex | Straight | Polymer | Pack Of 10

3175 62 22 By Parker | Legris Stud Fitting | 1/2″ Push-to-Connect X 1/2″ Male NPT Thread | 22 Mm Hex | Straight | Polymer | Pack Of 10

Original price was: $89.98.Current price is: $62.99.

SKU: AG9ZZ 14646528147826 Categories: , Tags: ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
3175 62 22 By Parker | Legris Stud Fitting | 1/2" Push-to-Connect X 1/2" Male NPT Thread | 22 Mm Hex | Straight | Polymer | Pack Of 10 -Hose Ware House Screenshot 2024 09 04 081727
Part Number ØD C F1 F2 H Kg
3175 53 08 1/8″ 1/8″ 10 mm .07″ .413″ .008 Kg
3175 53 11 1/8″ 1/8″ 11 mm 2 mm 7.2 mm .006 Kg
3175 53 14 1/8″ 1/4″ 14 mm 2 mm 8 mm .015 Kg
3175 56 11 1/4″ 1/8″ 11 mm 4 mm 11.9 mm .006 Kg
3175 55 11* 3/16″ 1/8″ 11 mm .12″ .61″ .0141 Kg
3175 55 14* 3/16″ 1/4″ 14 mm .16″ .59″ .0283 Kg
3175 56 14 1/4″ 1/4″ 14 mm 4 mm 9.4 mm .013 Kg
3175 56 18 1/4″ 3/8″ 18 mm 5 mm 7.6 mm .024 Kg
3175 60 11 3/8″ 1/8″ 16 mm 4 mm 22.7 mm .019 Kg
3175 60 14 3/8″ 1/4″ 16 mm 7 mm 20.5 mm .019 Kg
3175 60 18 3/8″ 3/8″ 18 mm 7 mm 17.5 mm .026 Kg
3175 60 22 3/8″ 1/8″ 22 mm .28″ .61″ .0546 Kg
3175 62 14 1/2″ 1/4″ 22 mm .25″ 1.10″ .0454 Kg
3175 62 18 1/2″ 3/8″ 22 mm 9.5 mm 25.5 mm .048 Kg
3175 62 22 1/2″ 1/2″ 24 mm 9.5 mm 22.1 mm .064 Kg

Pre-coated thread

* Collet technology – bare brass
