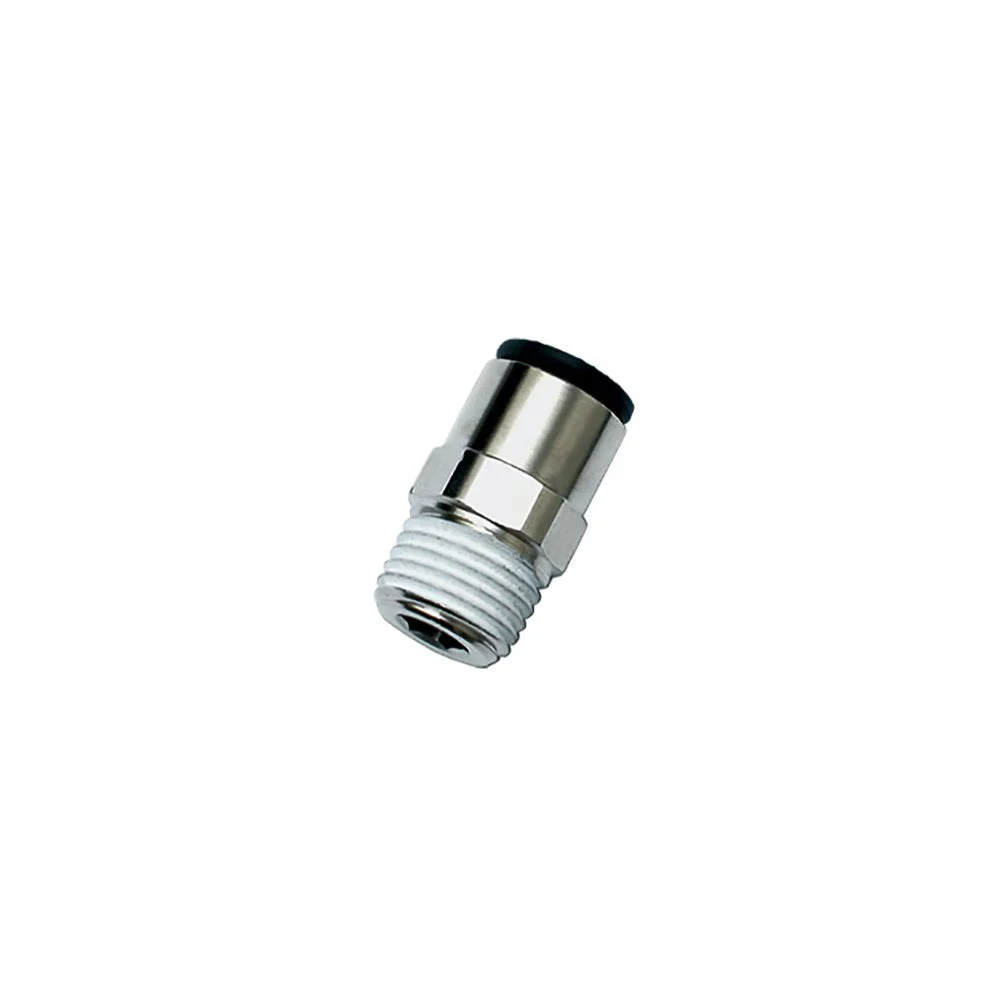

3175 60 21 By Parker | Legris Stud Fitting | 3/8" Push-to-Connect X 1/2" Male BSPT Thread | 21 Mm Hex | Straight | Polymer | Pack Of 10

3175 60 21 By Parker | Legris Stud Fitting | 3/8″ Push-to-Connect X 1/2″ Male BSPT Thread | 21 Mm Hex | Straight | Polymer | Pack Of 10

Original price was: $105.31.Current price is: $73.72.

SKU: AG9ZZ 14646528409970 Categories: , Tags: ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
3175 60 21 By Parker | Legris Stud Fitting | 3/8" Push-to-Connect X 1/2" Male BSPT Thread | 21 Mm Hex | Straight | Polymer | Pack Of 10 -Hose Ware House Screenshot 2024 09 04 081727
Part Number ØD C F1 F2 H Kg
3175 53 10 1/8″ 1/8″ 11 mm 3 mm 8.5 mm .005 Kg
3175 55 10 3/16″ 1/8″ 11.1 mm 3.2 mm 15.5 mm .009 Kg
3175 55 13 3/16″ 1/4″ 14.3 mm 4 mm 15 mm .020 Kg
3175 56 10 1/4″ 1/8″ 11 mm 4 mm 12 mm .006 Kg
3175 56 13 1/4″ 1/4″ 14 mm 4 mm 9.5 mm .021 Kg
3175 60 13 3/8″ 1/4″ 17 mm 7 mm 16.5 mm .019 Kg
3175 60 17 3/8″ 3/8″ 17 mm 7 mm 16.5 mm .019 Kg
3175 60 21 3/8″ 1/2″ 21 mm 7 mm 14 mm .037 Kg
3175 62 13 1/2″ 1/4″ 22 mm 6 mm 26.9 mm .044 Kg
3175 62 17 1/2″ 3/8″ 22 mm 7 mm 25.9 mm .048 Kg
3175 62 21 1/2″ 1/2″ 24 mm 7 mm 20.5 mm .049 Kg

Pre-coated thread
