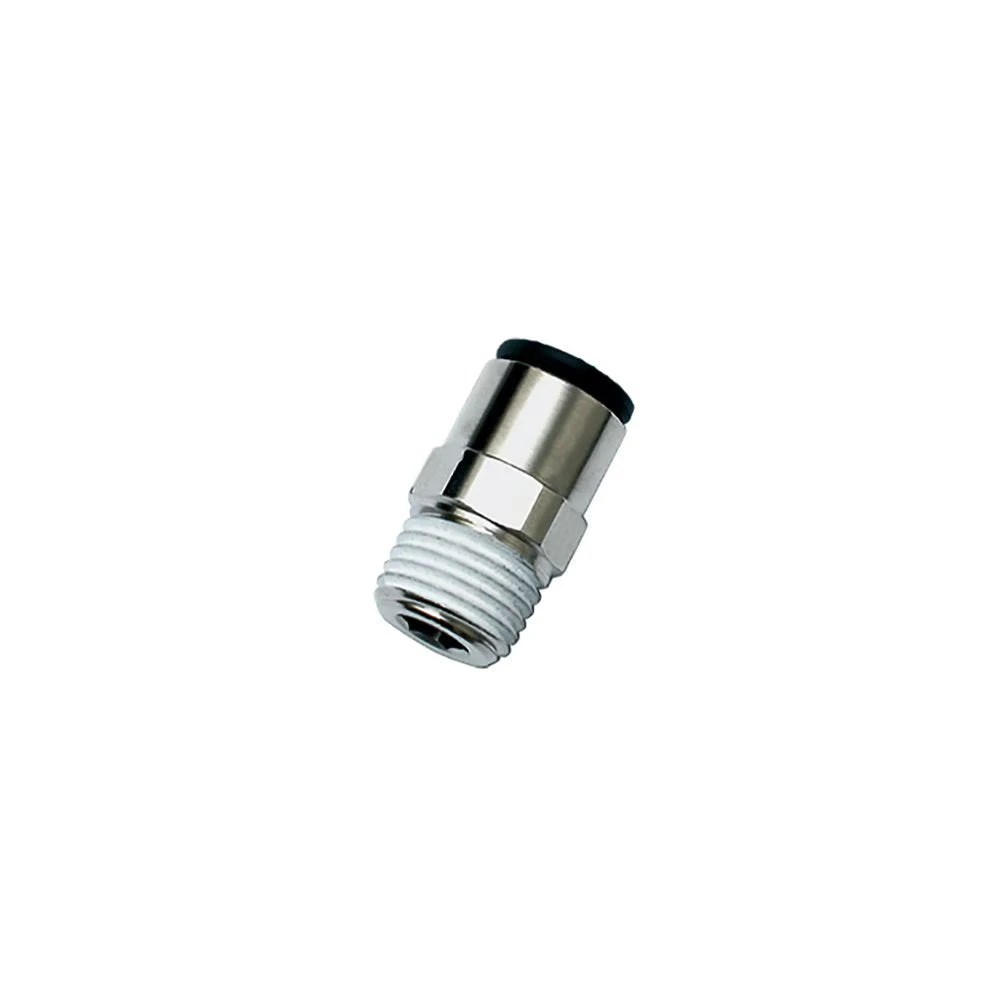

3175 56 14 By Parker | Legris Stud Fitting | 1/4″ Push-to-Connect X 1/4″ Male NPT Thread | 14 Mm Hex | Straight | Polymer | Pack Of 10
Original price was: $36.45.$25.52Current price is: $25.52.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | ØD | C | F1 | F2 | H | Kg |
| 3175 53 08 | 1/8″ | 1/8″ | 10 mm | .07″ | .413″ | .008 Kg |
| 3175 53 11 | 1/8″ | 1/8″ | 11 mm | 2 mm | 7.2 mm | .006 Kg |
| 3175 53 14 | 1/8″ | 1/4″ | 14 mm | 2 mm | 8 mm | .015 Kg |
| 3175 56 11 | 1/4″ | 1/8″ | 11 mm | 4 mm | 11.9 mm | .006 Kg |
| 3175 55 11* | 3/16″ | 1/8″ | 11 mm | .12″ | .61″ | .0141 Kg |
| 3175 55 14* | 3/16″ | 1/4″ | 14 mm | .16″ | .59″ | .0283 Kg |
| 3175 56 14 | 1/4″ | 1/4″ | 14 mm | 4 mm | 9.4 mm | .013 Kg |
| 3175 56 18 | 1/4″ | 3/8″ | 18 mm | 5 mm | 7.6 mm | .024 Kg |
| 3175 60 11 | 3/8″ | 1/8″ | 16 mm | 4 mm | 22.7 mm | .019 Kg |
| 3175 60 14 | 3/8″ | 1/4″ | 16 mm | 7 mm | 20.5 mm | .019 Kg |
| 3175 60 18 | 3/8″ | 3/8″ | 18 mm | 7 mm | 17.5 mm | .026 Kg |
| 3175 60 22 | 3/8″ | 1/8″ | 22 mm | .28″ | .61″ | .0546 Kg |
| 3175 62 14 | 1/2″ | 1/4″ | 22 mm | .25″ | 1.10″ | .0454 Kg |
| 3175 62 18 | 1/2″ | 3/8″ | 22 mm | 9.5 mm | 25.5 mm | .048 Kg |
| 3175 62 22 | 1/2″ | 1/2″ | 24 mm | 9.5 mm | 22.1 mm | .064 Kg |
Pre-coated thread
* Collet technology – bare brass
