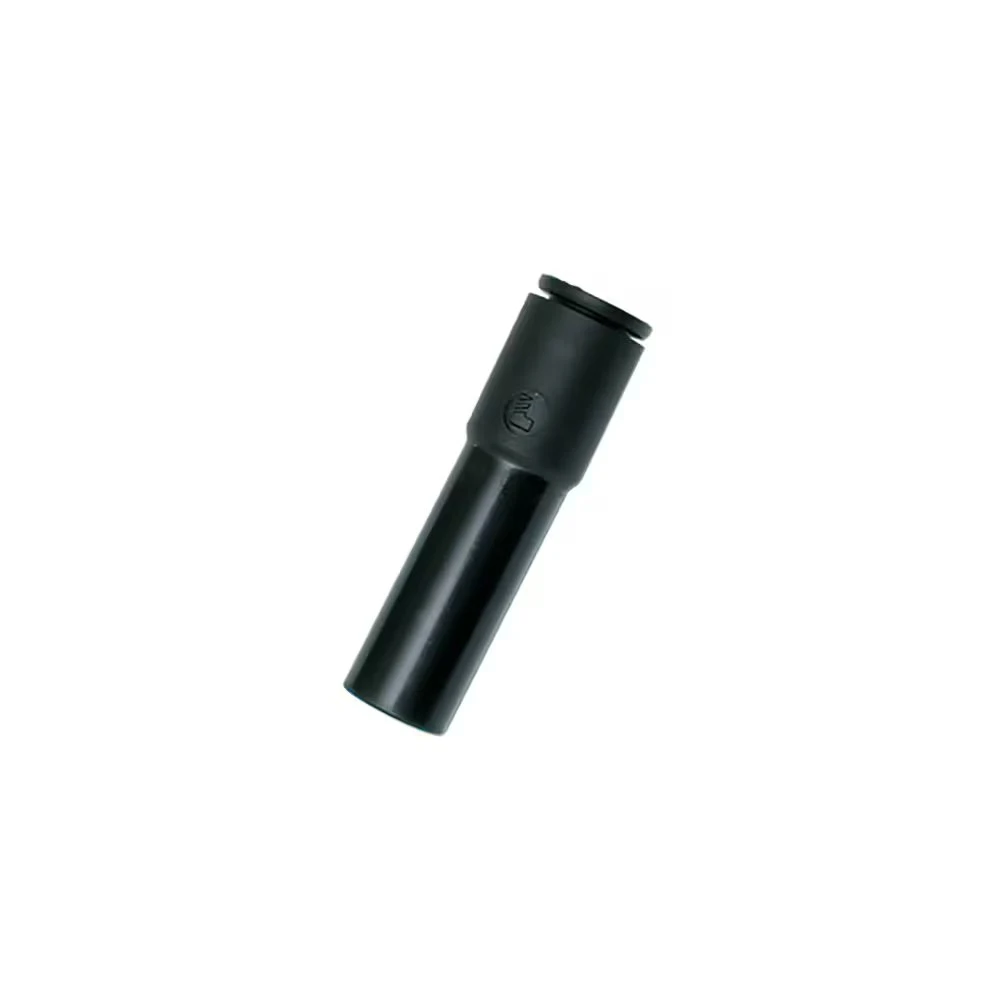

3166 04 10 By Parker | Legris Plug-In Fittings | 4 Mm Push-to-Connect X 10 Mm Tube Stem Reducer | 38 Mm Length | Straight | Polymer | Pack Of 10

Compatible Fluids: Compressed air
Working Pressure: Vacuum to 20 bar
Working Temperature: -20°C to +80°C

Original price was: $45.17.Current price is: $31.62.

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD1	ØD2	G	L	L1	Kg
3166 03 04	3 mm	4 mm	8.5 mm	37.5 mm	23.5 mm	.002 Kg
3166 04 06	4 mm	6 mm	8.5 mm	37.5 mm	23.5 mm	.001 Kg
3166 04 08	4 mm	8 mm	8.5 mm	37.5 mm	19 mm	.001 Kg
3166 04 10	4 mm	10 mm	10.5 mm	38 mm	18 mm	.003 Kg
3166 06 08	6 mm	8 mm	10.5 mm	37.5 mm	20 mm	.001 Kg
3166 06 10	6 mm	10 mm	10.5 mm	38 mm	17.5 mm	.002 Kg
3166 06 12	6 mm	12 mm	14.5 mm	46 mm	23 mm	.005 Kg
3166 06 14	6 mm	14 mm	14.5 mm	48 mm	23 mm	.007 Kg
3166 08 10	8 mm	10 mm	13.5 mm	49 mm	28.5 mm	.003 Kg
3166 08 12	8 mm	12 mm	13.5 mm	49 mm	23 mm	.004 Kg
3166 08 14	8 mm	14 mm	17 mm	48 mm	23 mm	.007 Kg
3166 10 12	10 mm	12 mm	21.5 mm	56.5 mm	33.5 mm	.005 Kg
3166 10 14	10 mm	14 mm	21.5 mm	58.5 mm	33.5 mm	.005 Kg
3166 12 14	12 mm	14 mm	23.5 mm	58.5 mm	33.5 mm	.007 Kg
