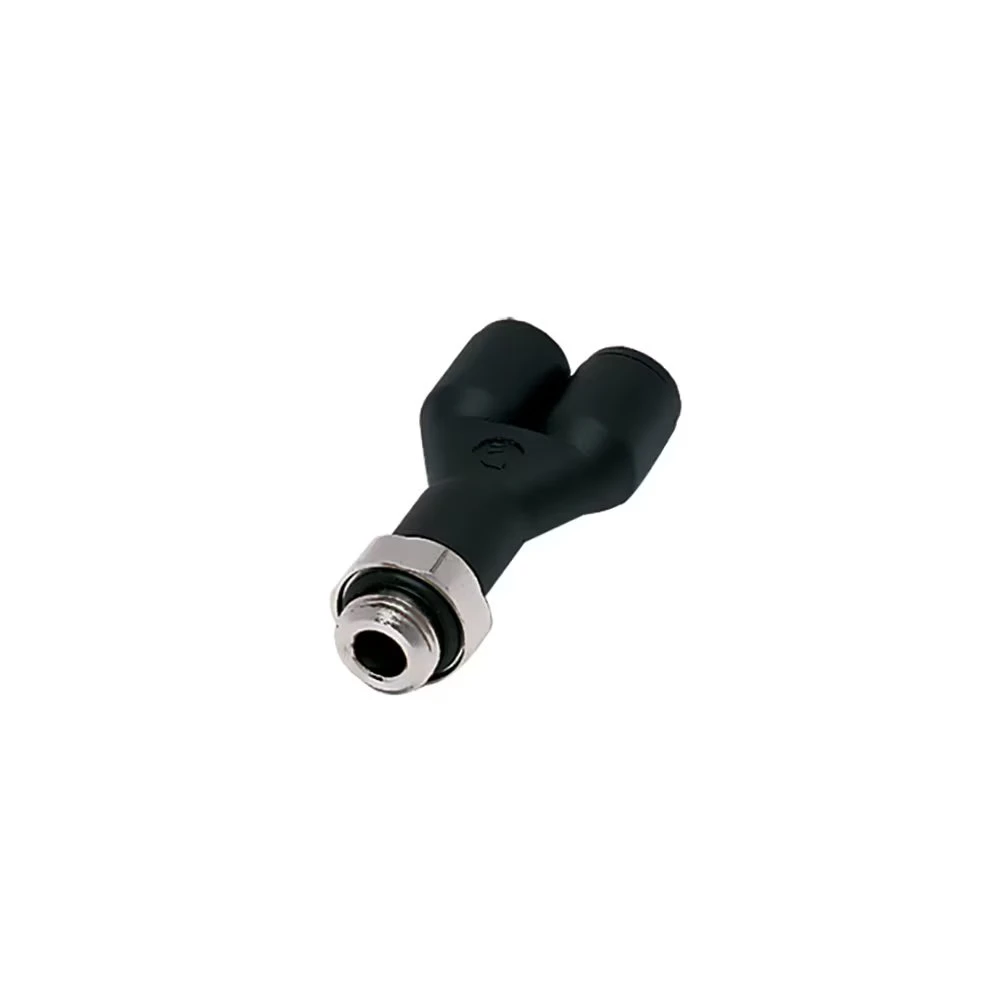

3158 06 13 By Parker | Legris Stud Fitting | 6 Mm Push-to-Connect X 1/4″ Male Swivel BSPP Thread | 16 Mm Hex | Y | Polymer | Pack Of 10
Original price was: $89.47.$62.63Current price is: $62.63.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | ØD | C | E | F | H | K | L | N | Kg |
| 3158 04 19 | 4 mm | M5x0.8 | 3.5 mm | 8 mm | 32.5 mm | 8.5 mm | 17.5 mm | 9 mm | .006 Kg |
| 3158 06 19 | 6 mm | M5x0.8 | 3.5 mm | 10 mm | 39.5 mm | 10.5 mm | 21.5 mm | 11 mm | .009 Kg |
| 3158 06 10 | 6 mm | 1/8″ | 5 mm | 13 mm | 39 mm | 10.5 mm | 21.5 mm | 11 mm | .012 Kg |
| 3158 06 13 | 5.5 mm | 1/4″ | 5.5 mm | 16 mm | 39.5 mm | 10.5 mm | 21.5 mm | 11 mm | .017 Kg |
| 3158 08 10 | 8 mm | 1/8″ | 5 mm | 13 mm | 49 mm | 13.5 mm | 28 mm | 14.5 mm | .020 Kg |
| 3158 08 13 | 8 mm | 1/4″ | 5.5 mm | 16 mm | 49.5 mm | 13.5 mm | 28 mm | 14.5 mm | .023 Kg |
| 3158 08 17 | 6 mm | 3/8″ | 6 mm | 19 mm | 48 mm | 13.5 mm | 28 mm | 14.5 mm | .031 Kg |
| 3158 10 13 | 10 mm | 1/4″ | 5.5 mm | 16 mm | 58 mm | 16 mm | 33 mm | 17 mm | .032 Kg |
| 3158 10 17 | 10 mm | 3/8″ | 6 mm | 20 mm | 57.5 mm | 16 mm | 33 mm | 17 mm | .040 Kg |
| 3158 10 21 | 10 mm | 1/2″ | 7 mm | 24 mm | 58 mm | 16 mm | 33 mm | 17 mm | .054 Kg |
| 3158 12 17 | 12 mm | 3/8″ | 6 mm | 20 mm | 62 mm | 19 mm | 39 mm | 20 mm | .044 Kg |
| 3158 12 21 | 12 mm | 1/2″ | 7 mm | 24 mm | 63 mm | 19 mm | 39 mm | 20 mm | .050 Kg |
The body swivels for positioning purposes.
