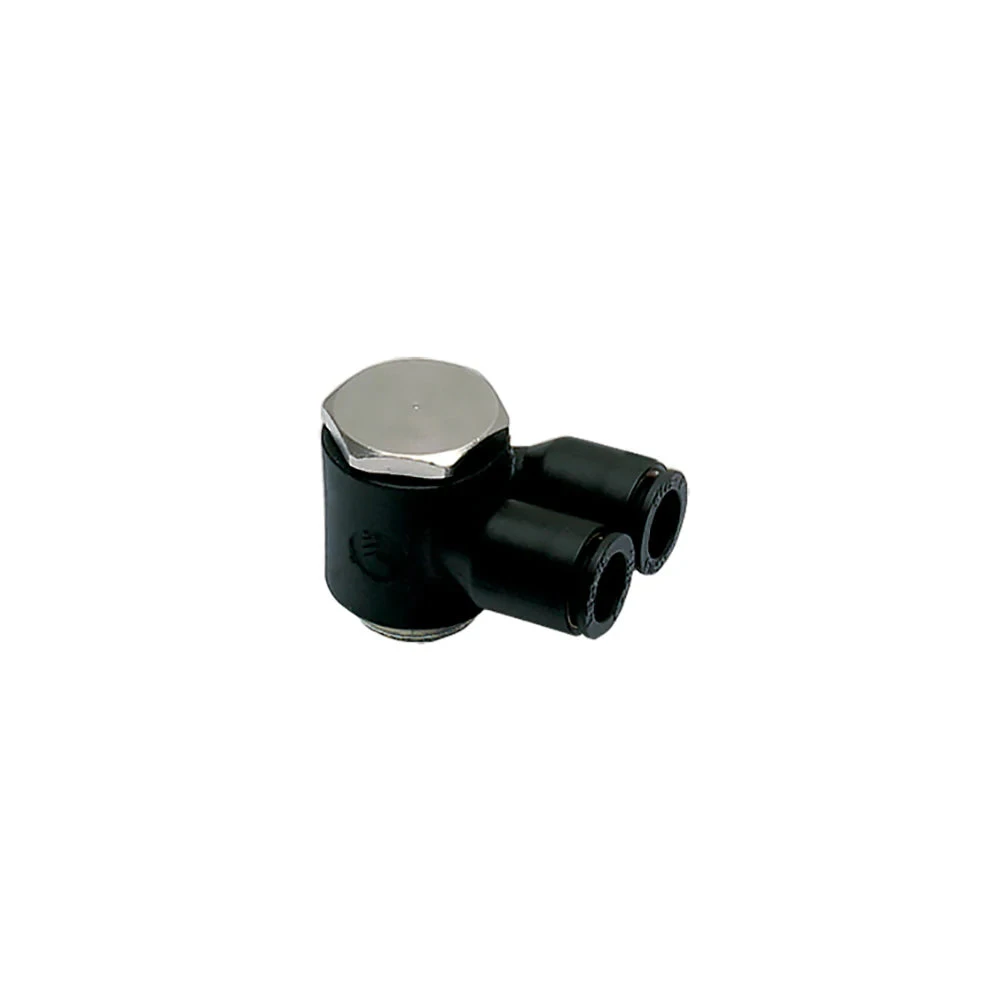

3149 06 13 By Parker | Legris Banjo Fittings | 6 Mm Tube Size X 1/4" Male BSPP Thread | 36.50 Mm Length | Twin Banjo | Polymer | Pack Of 10

3149 06 13 By Parker | Legris Banjo Fittings | 6 Mm Tube Size X 1/4″ Male BSPP Thread | 36.50 Mm Length | Twin Banjo | Polymer | Pack Of 10

Original price was: $173.29.Current price is: $98.99.

SKU: AG9ZZ 14646549283186 Categories: Fittings & Clamps, Tube Fittings Tags: Created in 2024, Matrixify3rd50kProducts

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Screwed from above, for minimum space between connections 360° orientable Stacking of banjo bodies to allow construction of 2 to 6 outlets
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Bolt: Nickel-plated brass, with or without pre-coating, depending on the configuration Body: Technical Polymer O-Ring: NBR Release Button Technical Polymer


Part Number	ØD	C	E	F	G	H	L	L1	N	Kg
3149 04 19*	4 mm	M5x0.8	4 mm	–	8.5 mm	13 mm	16 mm	4.5 mm	9 mm	.005 Kg
3149 04 10	4 mm	1/8″	4 mm	13 mm	10.5 mm	16.5 mm	18.5 mm	7 mm	11.5 mm	.018 Kg
3149 06 10	6 mm	1/8″	4 mm	13 mm	10.5 mm	16.5 mm	18.5 mm	7 mm	11.5 mm	.014 Kg
3149 06 13	6 mm	1/4″	5.5 mm	17 mm	13.5 mm	21 mm	27 mm	9.5 mm	14 mm	.035 Kg
3149 08 13	8 mm	1/4″	5.5 mm	17 mm	13.5 mm	21 mm	27 mm	9.5 mm	14.5 mm	.026 Kg
3149 08 17	8 mm	3/8″	5.5 mm	20 mm	16 mm	24.5 mm	31 mm	11 mm	17 mm	.053 Kg
3149 10 17	10 mm	3/8″	5.5 mm	20 mm	16 mm	24.5 mm	31 mm	11 mm	17 mm	.042 Kg

*With screwdriver slot
