Sale!

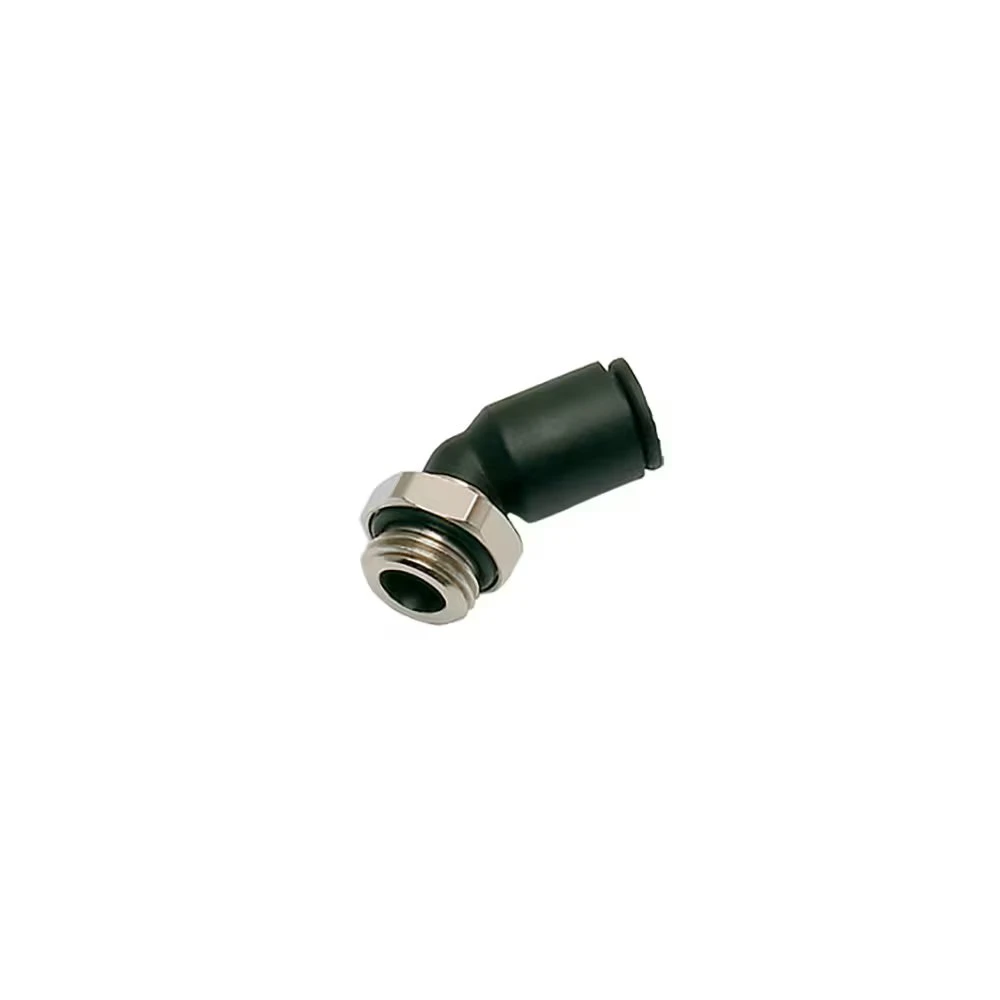

3133 10 21 By Parker | Legris Stud Fitting | 10 Mm Push-to-Connect X 1/2″ Male Swivel BSPP Thread | 24 Mm Hex | 45° Elbow | Polymer | Pack Of 10
Original price was: $112.13.$78.49Current price is: $78.49.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | ØD | C | E | F | G | H | L | Kg |
| 3133 04 19 | 4 mm | M5x0.8 | 3.5 mm | 8 mm | 9 mm | 23 mm | 13 mm | .003 Kg |
| 3133 04 10 | 4 mm | 1/8″ | 4.5 mm | 13 mm | 9 mm | 20.5 mm | 13 mm | .006 Kg |
| 3133 06 19 | 6 mm | M5x0.8 | 3.5 mm | 8 mm | 11 mm | 28 mm | 14.5 mm | .003 Kg |
| 3133 06 10 | 6 mm | 1/8″ | 4.5 mm | 13 mm | 11 mm | 24 mm | 14.5 mm | .006 Kg |
| 3133 06 13 | 6 mm | 1/4″ | 5.5 mm | 16 mm | 1 mm | 24 mm | 14.5 mm | .011 Kg |
| 3133 08 10 | 8 mm | 1/8″ | 4.5 mm | 13 mm | 13.5 mm | 31 mm | 19.5 mm | .009 Kg |
| 3133 08 13 | 8 mm | 1/4″ | 5.5 mm | 16 mm | 13.5 mm | 29 mm | 19.5 mm | .012 Kg |
| 3133 08 17 | 8 mm | 3/8″ | 5.5 mm | 20 mm | 13.5 mm | 29 mm | 19.5 mm | .017 Kg |
| 3133 10 13 | 10 mm | 1/4″ | 5.5 mm | 16 mm | 16 mm | 35 mm | 23 mm | .014 Kg |
| 3133 10 17 | 10 mm | 3/8″ | 5.5 mm | 20 mm | 16 mm | 33.5 mm | 23 mm | .017 Kg |
| 3133 10 21 | 10 mm | 1/2″ | 7 mm | 24 mm | 16 mm | 33.5 mm | 23 mm | .026 Kg |
| 3133 12 13 | 12 mm | 1/4″ | 5.5 mm | 16 mm | 19 mm | 40.5 mm | 26 mm | .016 Kg |
| 3133 12 17 | 12 mm | 3/8″ | 5.5 mm | 20 mm | 19 mm | 39 mm | 26 mm | .019 Kg |
| 3133 12 21 | 12 mm | 1/2″ | 7 mm | 24 mm | 19 mm | 39 mm | 26 mm | .029 Kg |
The body swivels for positioning purposes.
This model prevents distortion of the tube.
