Sale!

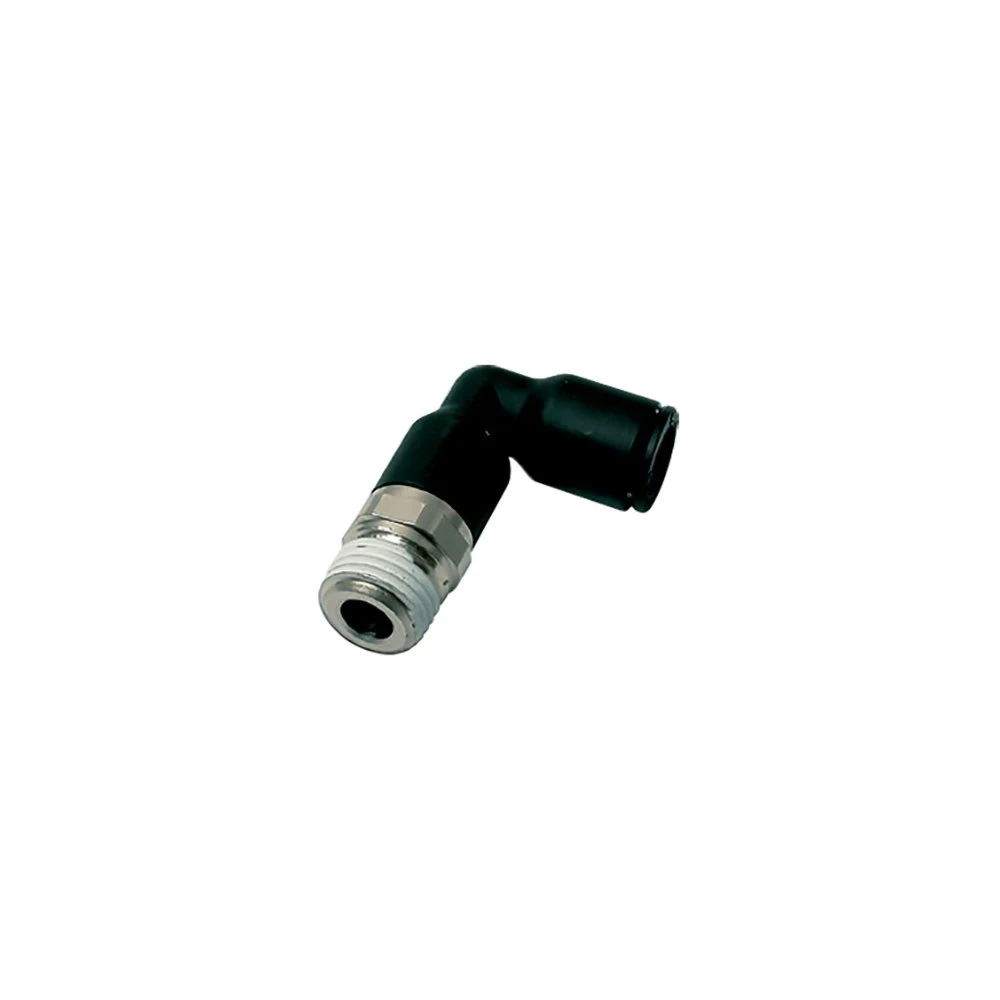

3129 04 10 By Parker | Legris Stud Fitting | 4 Mm Push-to-Connect X 1/8″ Male Swivel BSPT Thread | 10 Mm Hex | 90° Elbow | Polymer | Pack Of 10

Original price was: $128.92.Current price is: $90.24.

SKU: AG9ZZ 14646534668658 Categories: Fittings & Clamps, Tube Fittings Tags: Created in 2024, Matrixify3rd50kProducts

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	C	F	G	H	L	Kg
3129 04 10	4 mm	1/8″	10 mm	8.5 mm	23 mm	19 mm	.008 Kg
3129 04 13	4 mm	1/4″	14 mm	8.5 mm	23.5 mm	19 mm	.018 Kg
3129 06 10	6 mm	1/8″	10 mm	10.5 mm	27 mm	22.5 mm	.010 Kg
3129 06 13	6 mm	1/4″	14 mm	10.5 mm	27.5 mm	22.5 mm	.020 Kg
3129 08 10	8 mm	1/8″	13 mm	13.5 mm	34.5 mm	29.5 mm	.018 Kg
3129 08 13	8 mm	1/4″	14 mm	13.5 mm	32.5 mm	29.5 mm	.022 Kg
3129 08 17	8 mm	3/8″	17 mm	13.5 mm	33 mm	29.5 mm	.032 Kg
3129 10 13	10 mm	1/4″	15 mm	16 mm	39.5 mm	34.5 mm	.031 Kg
3129 10 17	10 mm	3/8″	17 mm	16 mm	39.5 mm	34.5 mm	.042 Kg
3129 10 21	10 mm	1/2″	21 mm	16 mm	39.5 mm	34.5 mm	.058 Kg
3129 12 13	12 mm	1/4″	19 mm	19 mm	45.5 mm	40.5 mm	.051 Kg
3129 12 17	12 mm	3/8″	19 mm	19 mm	45.5 mm	40.5 mm	.047 Kg
3129 12 21	12 mm	1/2″	21 mm	19 mm	45.5 mm	40.5 mm	.053 Kg
3129 14 17	14 mm	3/8″	21 mm	22 mm	51.5 mm	46.5 mm	.065 Kg
3129 14 21	14 mm	1/2″	21 mm	2 mm	51.5 mm	46.5 mm	.071 Kg
