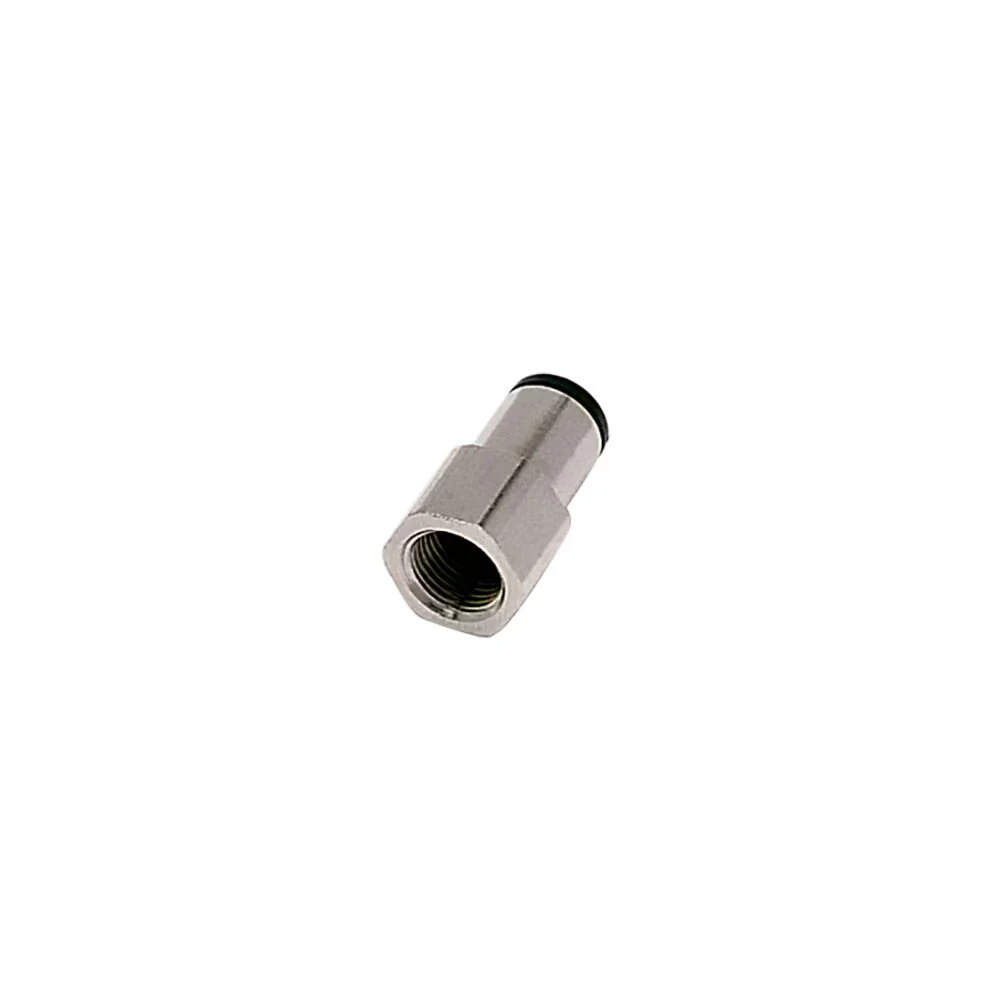

3114 08 13 By Parker | Legris Stud Fitting | 8 Mm Push-to-Connect X 1/4″ Female BSPP Thread | 16 Mm Hex | 33 Mm Length | Straight | Polymer | Pack Of 10

Compatible Fluids: Compressed air
Working Pressure: Vacuum to 20 bar
Working Temperature: -20°C to +80°C

Original price was: $81.03.Current price is: $56.72.

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	C	E	F	H	Kg
3114 04 19	4 mm	M5x0.8	6.5 mm	8 mm	19.5 mm	.005 Kg
3114 04 10	4 mm	1/8″	9.5 mm	13 mm	22.5 mm	.010 Kg
3114 04 13	4 mm	1/4″	13.5 mm	16 mm	26.5 mm	.015 Kg
3114 06 10	6 mm	1/8″	9.5 mm	13 mm	24.5 mm	.011 Kg
3114 06 13	6 mm	1/4″	13.5 mm	16 mm	28.5 mm	.016 Kg
3114 08 10	8 mm	1/8″	9.5 mm	13 mm	29 mm	.015 Kg
3114 08 13	8 mm	1/4″	13.5 mm	16 mm	33 mm	.021 Kg
3114 08 17	8 mm	3/8″	14 mm	19 mm	34 mm	.025 Kg
3114 10 13	10 mm	1/4″	13.5 mm	16 mm	36 mm	.028 Kg
3114 10 17	10 mm	3/8″	14 mm	19 mm	36 mm	.027 Kg
3114 10 21	10 mm	1/2″	19.5 mm	24 mm	41.5 mm	.047 Kg
3114 12 13	12 mm	1/4″	14 mm	19 mm	39.5 mm	.09 Kg
3114 12 17	12 mm	3/8″	14 mm	19 mm	40 mm	.033 Kg
3114 12 21	12 mm	1/2″	19.5 mm	24 mm	45.5 mm	.052 Kg
3114 14 17	14 mm	3/8″	14 mm	22 mm	42.5 mm	.057 Kg
3114 16 21	16 mm	1/2″	15 mm	27 mm	49 mm	.096 Kg
