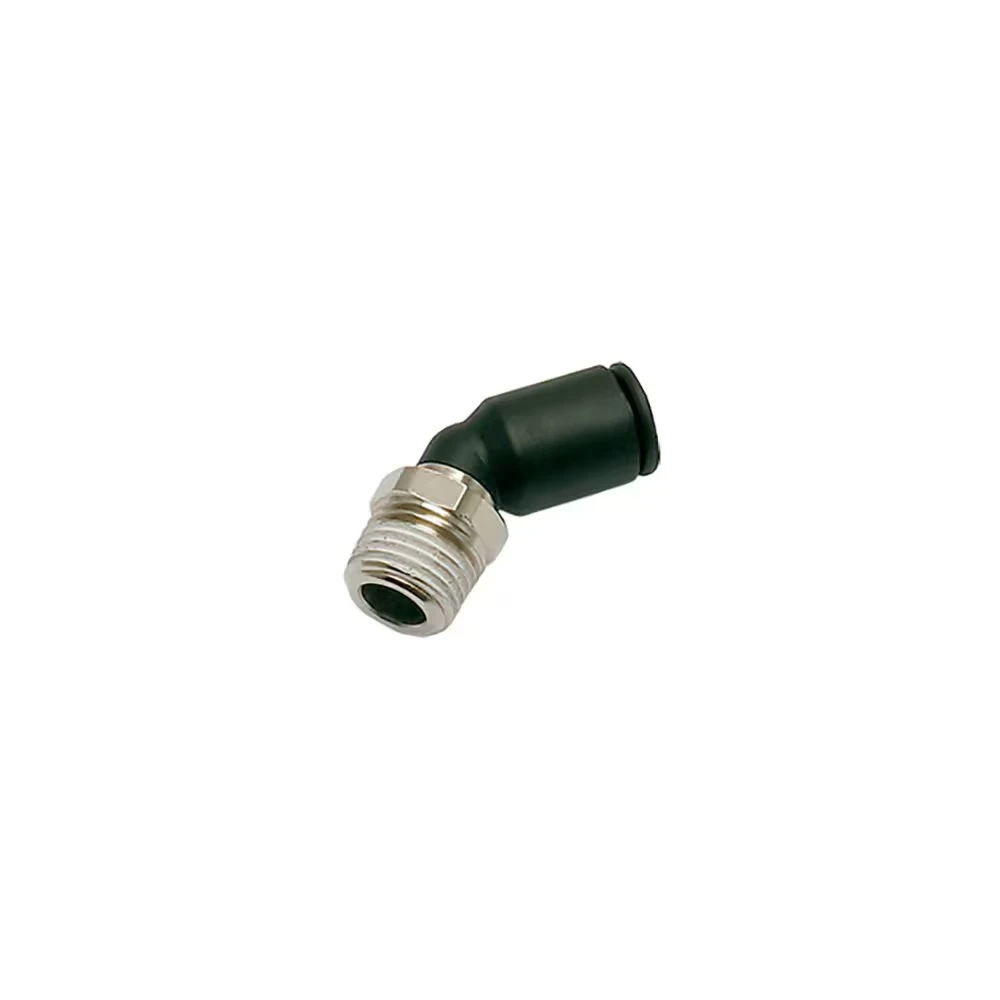

3113 56 20 By Parker | LF3000® Push-to-Connect Fittings | 1/4″ Push-to-Connect X 10-32 Male UNF Thread | 8 Mm Hex | 45° Elbow | Nylon | Pack Of 10

Original price was: $145.79.Current price is: $96.99.

SKU: AG9ZZ 14646663643506 Category: Fittings & Clamps Tags: Created in 2024, Matrixify3rd50kProducts

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance Silicone-Free
Markets:	Pneumatic Industrial Automation Robotic Printing Packaging Textile
Applications:	Air Cutting Fluids Inert Gases Vacuum
Pressure Range	Up to 290 psi (20 bar) 3/16″ diameter up to 260 psi (8 bar) Maximum working pressure and temperature range are dependent on the type of tubing used
Temperature Range	-4° to +175° F (-20° to +80° C) 3/16″ diameter 5° to +155° F (-15° to +68° C)
Vacuum Capability	28″ Hg


Part Number	ØD	NPT / UNF (C)	F	G	H	L	Oz
3133 53 20	1/8″	10-32	8 mm	.35″	.91″	.49″	.28 Oz
3113 53 08	1/8″	1/16″	10 mm	.35″	.83″	.49″	.21 Oz
3113 53 11	1/8″	1/8″	11 mm	.35″	.81″	.49″	.28 Oz
3113 53 14	1/8″	1/4″	–	–	–	–	–
3113 55 11*	3/16″	1/8″	11 mm	.43″	1.06″	.67″	.28 Oz
3113 04 11	5/32″	1/8″	–	–	–	–	–
3113 04 14	5/32″	1/4″	–	–	–	–	–
3113 04 20	5/32″	10-32	8 mm	.43″	1.06″	.57″	.28 Oz
3113 56 20	1/4″	10-32	8 mm	.35″	.92″	.51″	.26 Oz
3113 56 11	1/4″	1/8″	11 mm	.43″	.98″	.57″	.28 Oz
3113 56 14	1/4″	1/4″	14 mm	.43″	.98″	.57″	.60 Oz
3113 08 11	5/16″	1/8″	–	–	–	–	–
3113 08 14	5/16″	1/4″	–	–	–	–	–
3113 08 18	5/16″	3/8″	–	–	–	–	–
3113 60 11	3/8″	1/8″	15 mm	.63″	1.36″	.90″	.65 Oz
3113 60 14	3/8″	1/4″	17 mm	.63″	1.36″	.91″	.71 Oz
3113 60 18	3/8″	3/8″	18 mm	.63″	1.36″	.91″	.81 Oz
