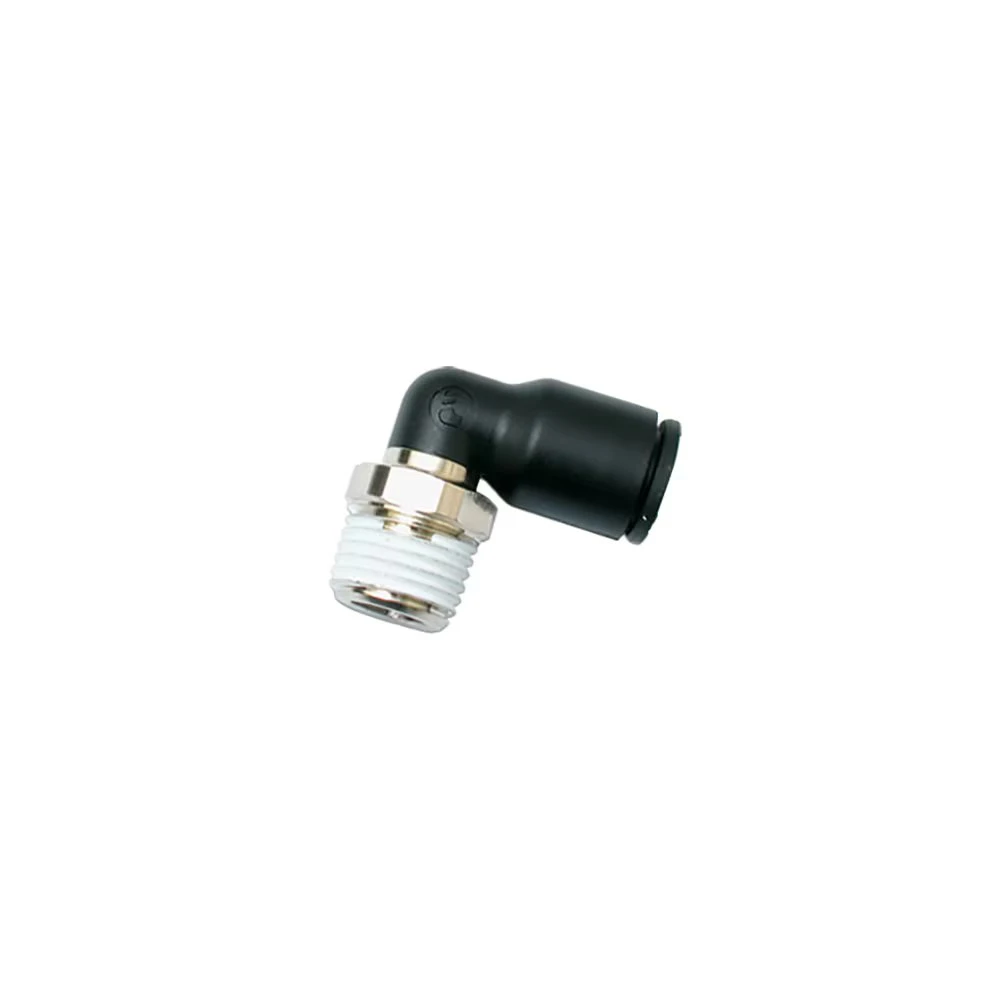

3109 56 20 By Parker | LF3000® Push-to-Connect Fittings | 1/4″ Push-to-Connect X 10-32 Male UNF Thread | 11 Mm Hex | 90° Elbow | Nylon | Pack Of 10
Original price was: $52.21.$36.55Current price is: $36.55.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Part Number | ØD | C | F | G | H | L | Kg |
| 3109 53 20 | 1/8″ | 10-32 | 8 mm | .34″ | .52″ | .57″ | .0089 Kg |
| 3109 53 08 | 1/8″ | 1/16″ | 10 mm | .34″ | .53″ | .57″ | .0147 Kg |
| 3109 53 11 | 1/8″ | 1/8″ | 11 mm | 8.6 mm | 13.5 mm | 14.5 mm | .007 Kg |
| 3109 53 14 | 1/8″ | 1/4″ | 14 mm | 8.6 mm | 14 mm | 14.5 mm | .015 Kg |
| 3109 55 11* | 3/16″ | 1/8″ | 11 mm | .43″ | .67″ | .85″ | .0132 Kg |
| 3109 56 20 | 1/8″ | 10-32 | 11 mm | .43″ | .63″ | .71″ | .0089 Kg |
| 3109 56 11 | 1/4″ | 1/8″ | 11 mm | 11 mm | 17 mm | 18 mm | .008 Kg |
| 3109 56 14 | 1/4″ | 1/4″ | 14 mm | 11 mm | 16 mm | 18 mm | .014 Kg |
| 3109 56 18 | 1/4″ | 3/8″ | 18 mm | 11 mm | 16.5 mm | 18 mm | .021 Kg |
| 3109 60 11 | 3/8″ | 1/8″ | 15 mm | 16 mm | 23.1 mm | 27.4 mm | .014 Kg |
| 3109 60 14 | 3/8″ | 1/4″ | 15 mm | 16 mm | 23.1 mm | 27.4 mm | .017 Kg |
| 3109 60 18 | 3/8″ | 3/8″ | 18 mm | 16 mm | 22.1 mm | 27.4 mm | .024 Kg |
| 3109 60 22 | 3/8″ | 1/2″ | 22 mm | .63″ | .91″ | 1.08″ | .0526 Kg |
| 3109 62 14 | 1/2″ | 1/4″ | 20 mm | .87″ | 1.22″ | 1.38″ | .0419 Kg |
| 3109 62 18 | 1/2″ | 3/8″ | 20 mm | .87″ | 1.22″ | 1.38″ | .0434 Kg |
| 3109 62 22 | 1/2″ | 1/2″ | 24 mm | 22.1 mm | 28.4 mm | 35.1 mm | .045 Kg |
Pre-coated thread
The body swivels for positioning purposes.
5/32”(4 mm) and 5/16”(8 mm) are also available.
