Sale!

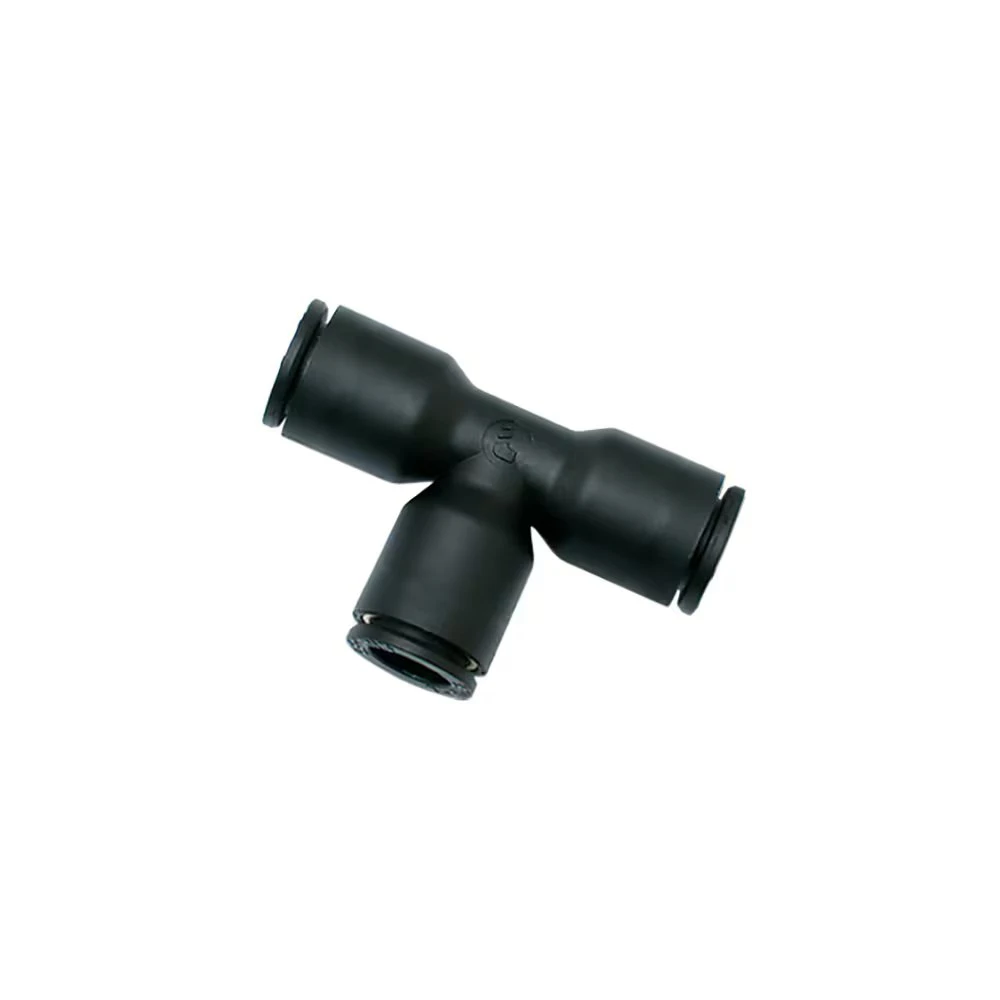

3104 08 06 By Parker | Legris Push-In Fitting | 8 Mm Push-to-Connect X 6 Mm Push-to-Connect | 56 Mm Length | Tee | Polymer | Pack Of 10

Compatible Fluids: Compressed air
Working Pressure: Vacuum to 20 bar
Working Temperature: -20°C to +80°C

Original price was: $65.05.Current price is: $45.54.

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	ØD1	G	H	L/2	Kg
3104 03 00	3 mm	3 mm	8.5 mm	19 mm	14.5 mm	.004 Kg
3104 04 00	4 mm	4 mm	8.5 mm	19 mm	14.5 mm	.002 Kg
3104 04 06	4 mm	6 mm	10.5 mm	22.5 mm	17.5 mm	.007 Kg
3104 06 04	6 mm	4 mm	10.5 mm	22.5 mm	17.5 mm	.005 Kg
3104 06 00	6 mm	6 mm	10.5 mm	22.5 mm	17.5 mm	.003 Kg
3104 06 08	6 mm	8 mm	13.5 mm	29.5 mm	23 mm	.015 Kg
3104 08 06	8 mm	6 mm	13.5 mm	29.5 mm	23 mm	.009 Kg
3104 08 00	8 mm	8 mm	13.5 mm	29.5 mm	23 mm	.006 Kg
3104 08 10	8 mm	10 mm	16 mm	34.5 mm	26.5 mm	.020 Kg
3104 10 08	10 mm	8 mm	16 mm	34.5 mm	26.5 mm	.014 Kg
3104 10 00	10 mm	10 mm	16 mm	34.5 mm	26.5 mm	.009 Kg
3104 10 12	10 mm	12 mm	19 mm	40.5 mm	31 mm	.033 Kg
3104 12 10	12 mm	10 mm	19 mm	40.5 mm	31 mm	.023 Kg
3104 12 00	12 mm	12 mm	19 mm	40.5 mm	31 mm	.014 Kg
3104 14 08	14 mm	8 mm	22 mm	46 mm	35.5 mm	.054 Kg
3104 14 00	14 mm	14 mm	22 mm	26 mm	35.5 mm	.022 Kg
3104 16 12	16 mm	12 mm	27 mm	52.5 mm	39 mm	.088 Kg
3104 16 00	16 mm	16 mm	27 mm	52 mm	39 mm	.063 Kg
