Sale!

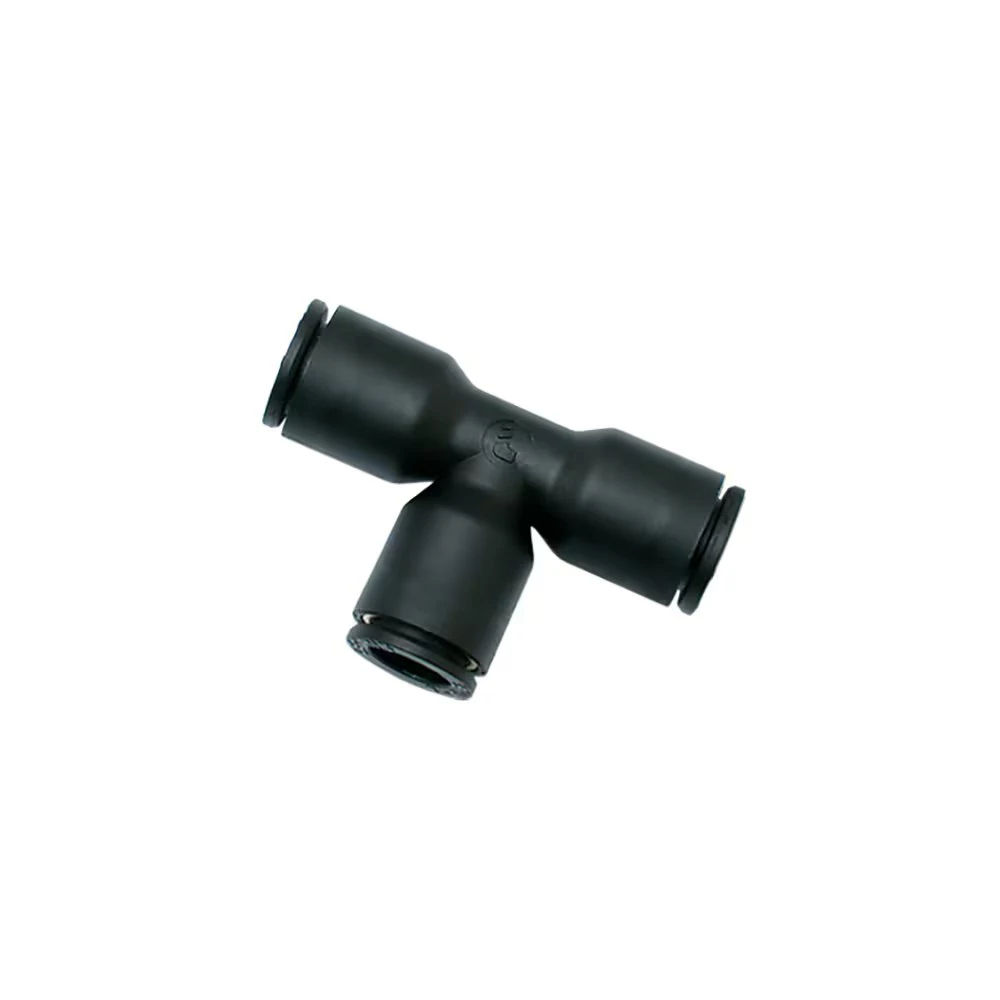

3104 04 56 By Parker | Legris Push-In Fitting | 5/32″ Push-to-Connect X 1/4″ Push-to-Connect | 36 Mm Length | Tee | Polymer | Pack Of 10

Compatible Fluids: Compressed air
Working Pressure: Vacuum to 20 bar
Working Temperature: -20°C to +80°C

Original price was: $59.62.Current price is: $41.73.

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	ØD1	G	H	L/2	Kg
3104 04 56	5/32″	1/4″	11 mm	23.5 mm	18 mm	.008 Kg
3104 53 00	1/8″	1/8″	8.4 mm	19 mm	14.5 mm	.003 Kg
3104 53 56	1/8″	1/4″	11 mm	23.5 mm	18 mm	.011 Kg
3104 55 00	3/16″	3/16″	11 mm	27.2 mm	21.6 mm	.016 Kg
3104 56 04	1/4″	5/32″	11 mm	23.5 mm	18.5 mm	.014 Kg
3104 56 00	1/4″	1/4″	11 mm	23 mm	24 mm	.003 Kg
3104 56 53	1/4″	1/8″	11 mm	23.5 mm	18.5 mm	.007 Kg
3104 56 60	1/4″	1/8″	16 mm	33.5 mm	24.5 mm	.017 Kg
3104 60 56	3/8″	1/4″	16 mm	32.5 mm	25.5 mm	.019 Kg
3104 60 00	3/8″	3/8″	16 mm	34 mm	26 mm	.009 Kg
3104 62 00	1/2″	1/2″	22 mm	46 mm	35 mm	.026 Kg
3104 62 56	1/2″	1/4″	22.1 mm	45.2 mm	35.3 mm	.059 Kg
3104 62 60	1/2″	3/8″	22 mm	46 mm	35 mm	.047 Kg
