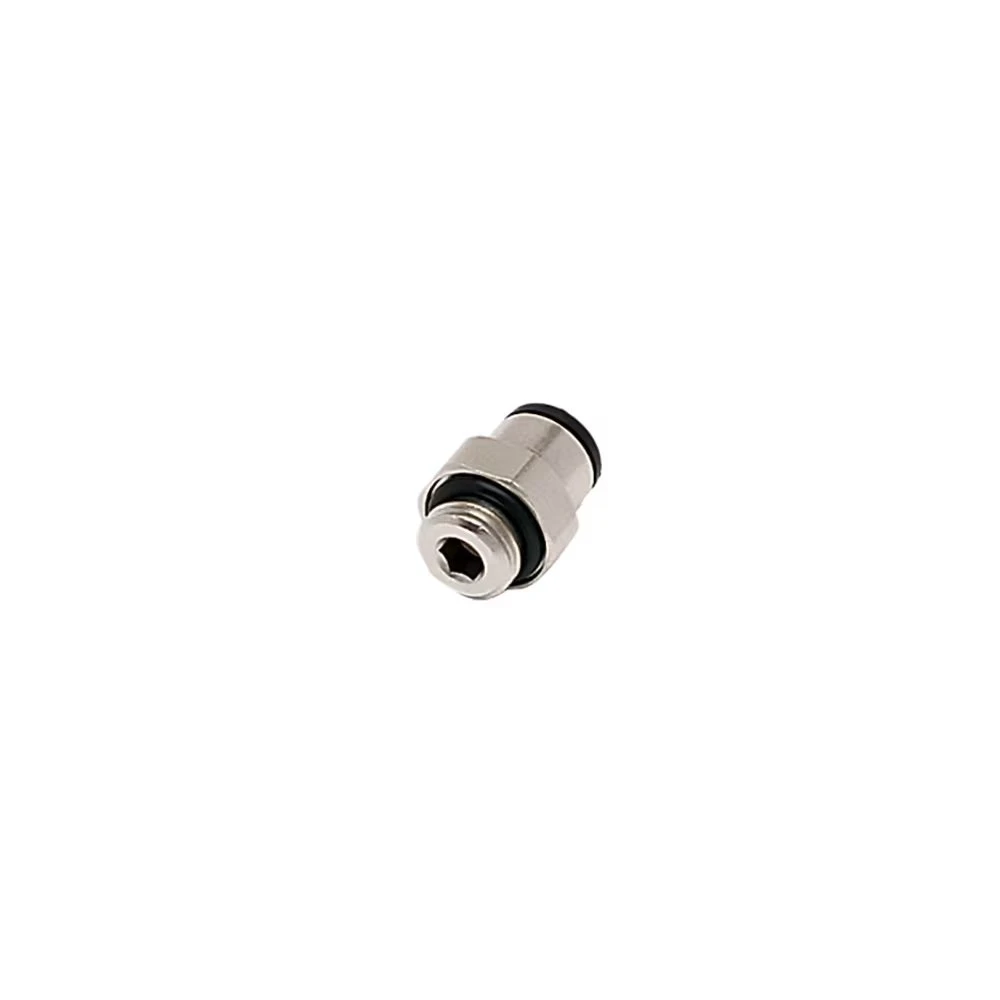

3101 08 10 By Parker | Legris Stud Fitting | 8 Mm Push-to-Connect X 1/8" Male BSPP Thread | 13 Mm Hex | Straight | Polymer | Pack Of 10

3101 08 10 By Parker | Legris Stud Fitting | 8 Mm Push-to-Connect X 1/8″ Male BSPP Thread | 13 Mm Hex | Straight | Polymer | Pack Of 10

Original price was: $63.65.Current price is: $44.56.

SKU: AG9ZZ 14646529687922 Categories: Fittings & Clamps, Tube Fittings Tags: Created in 2024, Matrixify3rd50kProducts

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	C	E	F1	F2	H	Kg
3101 03 09*	3 mm	M3x0.5	2.5 mm	8 mm	–	12.5 mm	.003 Kg
3101 03 19	3 mm	M5x0.8	2.5 mm	8 mm	2.5 mm	12.5 mm	.004 Kg
3101 04 09*	4 mm	M3x0.5	2.5 mm	8 mm	–	14.5 mm	.003 Kg
3101 04 19	4 mm	M5x0.8	3 mm	9 mm	2.5 mm	14 mm	.004 Kg
3101 04 55	4 mm	M7x1	5 mm	10 mm	2.5 mm	14 mm	.004 Kg
3101 04 10	4 mm	1/8″	5 mm	13 mm	3 mm	11.5 mm	.007 Kg
3101 04 13	4 mm	1/4″	5.5 mm	16 mm	3 mm	10.5 mm	.011 Kg
3101 06 19	6 mm	M5x0.8	3.5 mm	11 mm	2.5 mm	16 mm	.005 Kg
3101 06 55	6 mm	M7x1	5 mm	10 mm	3 mm	16 mm	.006 Kg
3101 06 60	6 mm	M10x1	5 mm	13 mm	4 mm	13 mm	.007 Kg
3101 06 67	6 mm	M12x1.5	5.5 mm	15 mm	4 mm	13 mm	.009 Kg
3101 06 10	6 mm	1/8″	5 mm	13 mm	4 mm	13 mm	.007 Kg
3101 06 13	6 mm	1/4″	5.5 mm	16 mm	4 mm	12.5 mm	.011 Kg
3101 06 17	6 mm	3/8″	5.5 mm	20 mm	4 mm	13 mm	.020 Kg
3101 06 21	6 mm	1/2″	7 mm	24 mm	4 mm	20 mm	.039 Kg
3101 08 60	8 mm	M10x1	5 mm	13 mm	5 mm	21 mm	.011 Kg
3101 08 67	8 mm	M12x1.5	5.5 mm	15 mm	5 mm	21 mm	.015 Kg
3101 08 10	8 mm	1/8″	4.5 mm	13 mm	5 mm	20.5 mm	.011 Kg
3101 08 13	8 mm	1/4″	5.5 mm	16 mm	6 mm	19.5 mm	.016 Kg
3101 08 17	8 mm	3/8″	5.5 mm	20 mm	6 mm	18 mm	.022 Kg
3101 08 21	8 mm	1/2″	7 mm	24 mm	6 mm	16.5 mm	.038 Kg
3101 10 13	10 mm	1/4″	5.5 mm	16 mm	7 mm	23 mm	.018 Kg
3101 10 17	10 mm	3/8″	5.5 mm	20 mm	8 mm	19.5 mm	.021 Kg
3101 10 21	10 mm	1/2″	7 mm	24 mm	8 mm	18.5 mm	.033 Kg
3101 12 13	12 mm	1/4″	5.5 mm	19 mm	7 mm	27.5 mm	.027 Kg
3101 12 17	12 mm	3/8″	5.5 mm	20 mm	9 mm	27 mm	.028 Kg
3101 12 21	12 mm	1/2″	7 mm	24 mm	11 mm	22.5 mm	.035 Kg
3101 14 17	14 mm	3/8″	5.5 mm	22 mm	9 mm	29.5 mm	.041 Kg
3101 14 21	14 mm	1/2″	7 mm	24 mm	11 mm	28 mm	.046 Kg
3101 16 17	16 mm	3/8″	7.5 mm	27 mm	9 mm	32.5 mm	.061 Kg
3101 16 21	16 mm	1/2″	9 mm	27 mm	12 mm	32.5 mm	.068 Kg

*Bi-material O ring sea
