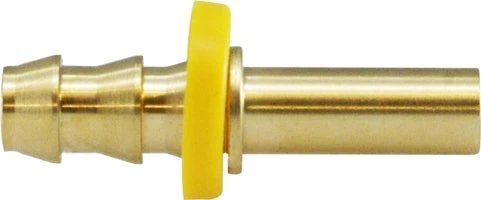

30298 (30-298) By Midland | Push On Hose Barb Fitting | Rigid Tube Adapter | 5/8″ Hose ID X 5/8″ Tube OD | Straight | Brass

Original price was: $12.00.Current price is: $8.40.

SKU: AG9ZZ 14659904471410 Categories: Fittings & Clamps, Tube Fittings Tags: 5/8 Hose ID, 5/8" Tube OD, Brass, Brass Fittings, Hose Barb x Tube, Matrixify2nd50kProducts, Midland Industries, Push On Hose Barb Fittings, Rigid Tube Adapter

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Applications:	Low Pressure Air, Fuel, Lube, and Oil Lines Pressure determined by tube material and hardness. Midland Parts have been tested to max 150 PSI	Advantages:	Easy assembly. No clamps needed.
SAE Rating:	N/A	Lead Free:	No

Assembly Instructions:
1) Lubricate insert. 2) Hold hose at angle as shown & push on and up over first barb. 3) Continue to push straight on until hose is seated under protective plastic cap. Keep hands back from hose end area so that hose can expand.
Disassembling Instructions:
1) Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged. 2) Bend hose and remove with a quick pull.

Crossover Series:
29PO1D	129PO15	294	100B-X	KA-RL	303	732	694


Part Number	Hose ID x Tube OD	A	B	Approx. Weight (Lbs.)
30290 (30-290)	1/4″ x 3/16″	1.68″	0.77″	0.04
30291 (30-291)	1/4″ x 1/4″	1.88″	0.77″	0.04
30292 (30-292)	1/4″ x 5/16″	1.88″	0.77″	0.04
30293 (30-293)	5/16″ x 5/16″	1.91″	0.79″	0.04
30294 (30-294)	3/8″ x 3/8″	2.03″	0.92″	0.06
30426 (30-426)	3/8″ x 1/2″	1.81″	0.97″	0.04
30297 (30-297)	1/2″ x 1/2″	2.13″	1.02″	0.06
30298 (30-298)	5/8″ x 5/8″	2.61″	1.50″	0.10
30299 (30-299)	3/4″ x 3/4″	2.61″	1.50″	0.25
