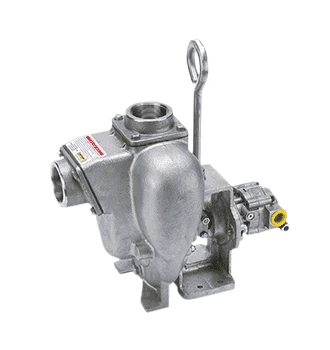

300PHYSS By Banjo | Centrifugal Pumps | 3″ Pump With 21 HP Hydraulic Motor | Min. 600 PSI, Max. 3000 PSI | Stainless Steel

Original price was: $337.00.Current price is: $95.99.

SKU: AG9ZZ 1480721072164 Categories: Pumps, Tools & Equipment Tags: 3" Self-Priming Centrifugal Pumps, 3" Stainless Steel Pumps with Hydraulic Motors & Replacement Parts, 3" Stainless Steel Pumps with Hydraulic Motors Spool Valves, All-categories, Banjo Liquid Handling Products, Collection-lvl1_All Equipment, Collection-lvl2_Pumps, Industrial Hose Fittings, LegacyProductTypeReplacement_All Categories, Matrixify1st50kProducts, Pumps, Self-Priming Centrifugal Pumps

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Hydraulic Motor Data:
Application:	Fluids, Agriculture, Industrial
U.S. Gallons/Rev.	0.0038	Cubic Inches/Rev.	0.878
Liters/Rev.	0.0144	Max Hydraulic Pressure	3000 PSI
Min Hydraulic Pressure	600 PSI	Inlet Port	1-1/16-12UN-2B
Outlet Port	1-5/16-12UN-2B	Minimum GPM Required	9 GPM 2370 RPM
Maximum GPM Required	13 GPM 3450 RPM	Ideal GPM Required	9 GPM 3600 RPM
Connection Information
Inlet	“A” Port	Outlet	“B” Port
Supplied check valve is to ensure proper rotation of the Banjo pump. Place check valve in outlet port (marked “B”) for proper right hand rotation. It is recommended that a minimum 3/4″ inlet line & a minimum 1″ outlet line be used. The outlet port must be connected directly back to the hydraulic fluid reservoir & not to any valving, regulators or flow diverters. The outlet port/return line back pressure must not exceed 250 PSI.
Spool Valve Information
Required Outlet Flow	Min 9 GPM / Max 13 GPM	Required System Pressure	Min 600 PSI / Max 3000 PSI
Pump Features:
Rugged construction for dependable service Carbon ceramic seal with stainless steel cup and spring with FKM (viton type) rubber Replaceable inlet and outlet flanges Dynamically balanced impeller
Hydraulic Motor Features:
Hydraulic fluid capacity: Minimum 9 Gallons / Maximum 13 Gallons 21 H.P. Motor Open or closed system Minimum 600 P.S.I. / Maximum 3000 P.S.I.
Notes:
CAUTION-WARNING: Please do not run pumps dry, restrict or reduce port sizes or dead head pumps. This could cause component failure to pump. DO NOT USE WITH FLAMMABLE LIQUIDS. Recommendation: Banjo recommends using the motor spool control valve or a suitable equivalent. The lack of such a valve in this circuit may cause failure to the hydraulic motor.

Part Number	Description	Horsepower
2″ Stainless Steel Pumps with Hydraulic Motors
300PHYSS	3″ Stainless Steel Pump with 21 HP Hydraulic Motor	21 HP	(Made to Order)
Hydraulic Motor Spool Valve
HSV1000	Hydraulic Motor Spool Valve	N/A	—


Replacement Parts for 2″ Stainless Steel Hydraulic Pumps
Item	Part Number	Description	Quantity Required
1	18001SS	Pump Housing	1
2	18004SS	Wear Plate	1
3	18106SS	3/8″-16 x 1.25″ HHCS	2
4	18023SS	Impeller & Drive Shaft	1
5	18025SS	FKM (viton type) Mechanical Seal	1
6	18218	3/8″-16 x 24 x 2-1/8″ SS Stud	6
7	V20018	3/8″ Split Lock Washer	14
8	V20019	3/8″ 16 SS Hex Nut	6
9	18010SS	3/8″ – 16 x 1.25″ HHCS	8
10	18044	FKM (viton type) Outlet Gasket	1
13	18042	FKM(viton type) Gasket Check Valve Assembly	1
14	18033	Handle	1
15	18034	5/8″ SS Jam Nut	1
16	13777SS	3/4″ Stainless Steel Plug	1
17	12777SS	1/2″ Stainless Steel Plug	1
18	18021	Adapter Gasket	1
19	18049SS	Hydraulic Motor Adapter	1
20	18055	Hydraulic Adapter Shaft	1
21	18502	Bearing	1
22	18056	1/2″-13 x 2″ HHCS	2
25	17010	1/2″ Hex Nut	2
26	HY1012	UM16-45A-HX Hydraulic Motor Assembly	1
27	18029	Clamp Assembly Unkeyed	1
28	13778V	O-Ring FKM (viton type)	1
29	UV15163V	O-Ring FKM (viton type)	1
Not Shown	18100SS	Repair Kit(Consist of items 2, 3, 4, 5 & 18)	1


Replacement Parts for 2″ Stainless Steel Hydraulic Adapter
Item	Part Number	Description	Quantity Required
1	18049SS	C-Flange Hydraulic Motor Adapter	1
2	18021	Gasket Adapter	1
3	18025SS	Seal Assembly	1
4	18502	SKF 66306-2RS1/C3 Bearing	1
5	18055	Hydraulic Adapter Shaft	1
6	HY1012	Tyrone® Hydraulic Motor	1
9	18056	1/2″-13 x 2″ HHCS Bolt	2
10	17010	1/2″ Hex Nut	2
