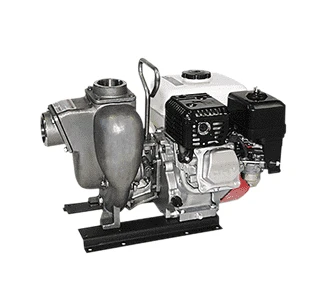

300PH13SS By Banjo | Centrifugal Pumps | 3″ Pump With 13 HP Honda® Engine With Electric Start & Pull Rope | 316 Stainless Steel

SPECIFICATIONS

Application:	Fluids, Agriculture, Industrial
Pump Features:
Carbon ceramic seal consists of 316 stainless steel cup and spring with FKM (viton type) Elastomer All 316 stainless steel wettable internal components: Impeller, Sleeve, Wear plate, Fasteners 316 stainless steel housing Dynamically balanced impeller
Notes:
NOTE: Engine warranty service available at authorized Briggs & Stratton® and Honda® dealers. CAUTION-WARNING: Please do not run pump dry, restrict or reduce port sizes, or dead head pump. This could cause component failure to pump. DO NOT USE WITH FLAMMABLE LIQUIDS

Part Number	Description	Horsepower		EPDM Repair Kit Number	EPDM Seal Kit Number
3″ Stainless Steel Pumps with Gas Engines
300PH13SS	3″ SS Pump with 13 HP Honda® Engine with Electric Start & Pull Rope	13 HP	(Made to Order)	18100SS	18025SS
3″ Stainless Steel Bearing Pedestal Pump
300PB-SS	3″ SS Bearing Pedestal with 1″ Straight Shaft Note: * Straight shaft for long coupling to electric motors	N/A	(Made to Order)	18100SS	18025SS
3″ Stainless Steel Pump Only
300PO-SS	3″ SS Pump Only with 1″ Shaft Sleeve	N/A	(Made to Order)	18100SS	18025SS
Universal Base Plate Assembly
18700	Base Plate Assembly for 1-1/2″, 2″ & 3″ Cast Iron or Poly Pump (Plate, Coupling Guard, Bolt Bag & Shims)	N/A	N/A	N/A	N/A
18702	Replacement Coupling Guard	N/A	N/A	N/A	N/A

Note: Recommendation for 5.8″ Shaft: 56C Frame Size, 3 HP, 3450 RPM, & 5″ Max Impeller for close coupling to electric motors.
Recommendation for 7.8″ Shaft:145TC Frame Size, 3 HP, 3450 RPM, & 5″ Max Impeller for close coupling to electric motors

Replacement Parts for 3″ Stainless Steel Pumps
Item	Part Number	Description	Quantity Required
3	18026SS	Adapter for Gas Engine	1
4	13777SS	3/4″ Stainless Steel Plug	1
5	18023SS	1″ SS Impeller & Drive Shaft for Gas Engine	1
6	12777SS	1/2″ Stainless Steel Plug	1
7	18034	5/8″ SS Jam Nut	1
8	18004SS	SS Wear Plate	1
9	18044	FKM (viton type) Outlet Gasket	1
10	18042	FKM (viton type)Gasket Check Valve Assembly	1
11	18021	Adapter Gasket	1
12	18010SS	3/8″ – 16 x 1-1/8″ SS Cap Screw HXHD	8
13	18033	Handle	1
14	18129	Clamp Assembly	1
15	18001SS	SS Pump Housing	1
17	18106SS	Wear Plate Flat Head Screw	2
18	V20018	3/8″ Lock Washer	8
20	18504	1″ Shaft	1
21	18500	Bearing Pedestal	1
22	18027	3/8″-16 x 1-1/2″ HHCS	1
23	18025SS	FKM (viton type) Seal Assembly	1
24	V20019	3/8″ 16 SS Hex Nut	6
25	V20018	3/8″ SS Lock Washer	6
26	18218	3/8″-16 x 24 x 2-1/8″ SS Stud	6
27	13778V	O-Ring FKM (viton type)	1
28	UV15163V	O-Ring FKM (viton type)	1
Not Shown	18100SS	Repair Kit (Consist of items 5, 8, 11, 17 & 23)	1
