Sale!

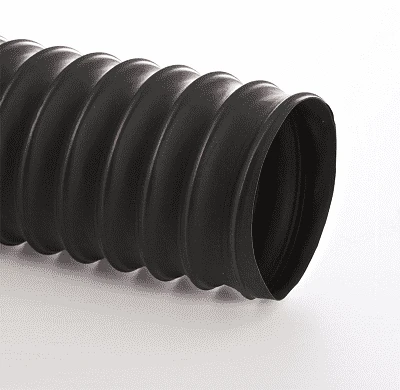

3-LT-50 By Flexaust | #8411030050 | LT | Air And Fume Duct Hose | 3 Inch | 50ft

Original price was: $216.00.Current price is: $99.99.

SPECIFICATIONS

Other Features:
Applications:	Bus Ventilation, Dry Cleaning, Pipe Organs, Race Car Helmet Ventilation, Stereo Speakers, Transmission Cooling	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Light weight black thermoplastic rubber
Reinforcement:	Spring steel wire helix	Cover:	N/A
Temperature Range:	-60 deg. F to 275 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A
Excellent compressibility & flexibility. Designed for applications with wide temperature ranges. Great moisture & UV resistance. Excellent chemical resistance. Smooth interior assures minimal friction loss & efficient air flow.

Part Number 25 ft Reels	Part Number 50 ft Reels	Inside Diameter	Wall Thickness (In)	Centerline Bend Radius (In)	Compression Ratio	Negative Pressure (In/Hg)	Working Pressure (PSI)	Weight – 25ft (Lbs/Ft)	Weight – 50ft (Lbs/Ft)
LT 1.5in	LT 1.5in	1.5″	.020″	1.08″	5:1	29	16	3.5 lbs	7 lbs
LT 2in	LT 2in	2″	.020″	2″	5:1	29	12	4.5 lbs	9 lbs
LT 2.5in	LT 2.5in	2.5″	.020″	2.46″	5:1	19	9	5.25 lbs	10.5 lbs
LT 3in	LT 3in	3″	.020″	2.92″	5:1	11	7.7	6 lbs	12 lbs
LT 4in	LT 4in	4″	.020″	3.58″	8:1	9	5.1	7.75 lbs	15.5 lbs
LT 5in	LT 5in	5″	.020″	3.79″	8:1	4.7	4.1	9.75 lbs	19.5 lbs
LT 6in	LT 6in	6″	.020″	4″	8:1	2.7	3.4	11.5 lbs	23 lbs
LT 7in	LT 7in	7″	.020″	4.25″	8:1	2.8	2.4	12 lbs	24 lbs
LT 8in	LT 8in	8″	.020″	4.5″	8:1	1.9	2.1	14 lbs	28 lbs
LT 10in	LT 10in	10″	.020″	5.8″	8:1	1	1.7	17.25 lbs	34.5 lbs
LT 12in	LT 12in	12″	.020″	7″	8:1	.6	1.4	21 lbs	42 lbs
LT 14in	LT 14in	14″	.020″	8.1″	8:1	.4	1.2	24.25 lbs	48.5 lbs
LT 16in	LT 16in	16″	.020″	9.3″	8:1	.24	1.07	27.5 lbs	55 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
