Sale!

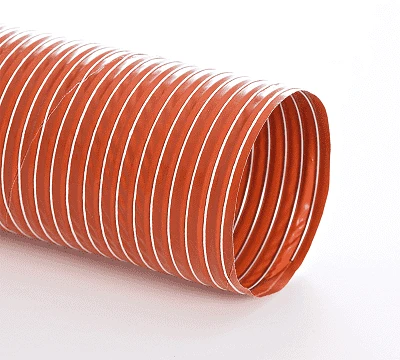

3-BDS-12 By Flexaust | #2600300012 | BDS | Air And Fume Duct Hose | 3 Inch | 12ft

Original price was: $142.88.Current price is: $98.99.

SPECIFICATIONS

Other Features:
Applications:	Brake Ducting, Dry Cleaning, Drying Systems	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Single-ply iron oxide red silicone coated fiberglass fabric
Reinforcement:	Spring steel wire helix & external filament fiberglass cord	Cover:	N/A
Temperature Range:	-65 deg. F to 500 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A
Suited for high temperature air handling applications. The narrow pitch allows for tight bending radius while maintaining a smooth air flow. Non-kinking. Resistant to many oils & solvents, ozone, water, fungus & alkalis. Not recommended for continuous flexing.

Part Number 12 ft Reels	Inside Diameter	Wall Thickness (In)	Centerline Bend Radius (In)	Compression Ratio	Negative Pressure (In/Hg)	Working Pressure (PSI)	Weight – 12ft (Lbs/Ft)
BDS 1in	1″	N/A	1.2″	3:1	29	30	1.44 lbs
BDS 1.5in	1.5″	N/A	1.5″	3:1	29	30	18 lbs
BDS 2in	2″	N/A	2.5″	3:1	29	30	2.4 lbs
BDS 2.5in	2.5″	N/A	2.7″	3:1	29	30	30 lbs
BDS 3in	3″	N/A	3″	3:1	22	30	3.6 lbs
BDS 3.5in	3.5″	N/A	N/A	N/A	N/A	N/A	N/A
BDS 4in	4″	N/A	3.4″	4:1	19	27	4.68 lbs
BDS 4.5in	4.5″	N/A	3.7″	4:1	13	25	5.28 lbs
BDS 5in	5″	N/A	4.1″	4:1	7	21	5.88 lbs
BDS 6in	6″	N/A	4.5″	5:1	4	11	6.24 lbs
BDS 7in	7″	N/A	N/A	N/A	N/A	N/A	N/A
BDS 8in	8″	N/A	7″	5:1	3.5	10	11.4 lbs
BDS 10in	10″	N/A	N/A	N/A	N/A	N/A	N/A
BDS 12in	12″	N/A	N/A	N/A	N/A	N/A	N/A

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
