Sale!

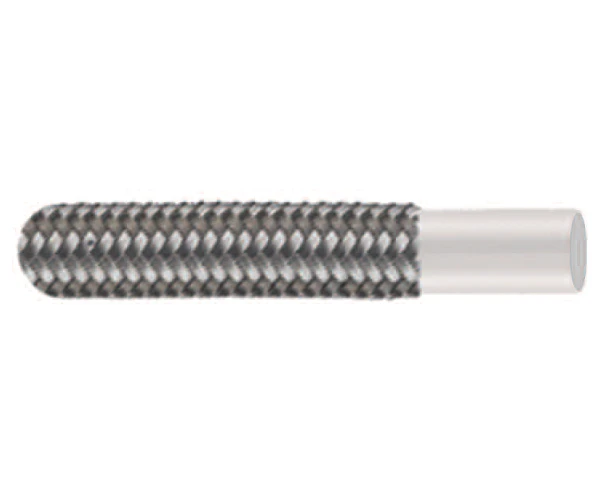

3/8″ TR14 By Couplamatic | PTFE Hydraulic Hose | One Stainless Braid | 3/8″ ID | 50ft Bulk Length
Original price was: $204.00.$96.99Current price is: $96.99.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Applications: | Fuel, Lubricant, Steam, Hydraulic, & Compressed Gas | SAE Rating: | SAE 100R14 |
|---|---|---|---|
| Cover: | 304 Stainless Braid | Reinforcement: | One (3/16″-3/4″) or Two (1″) Stainless Braids |
| Temperature: | -65F to +400F (-54C to +204C), -100F to +500F (-73C to +260 C) Intermittent | Compatible Coupling Series: |
| Part Number | Hose ID | Hose OD | Working Pressure (lbs) | Min. Burst Pressure (lbs) | Min. Bend Radius | Weight per 100ft | Coil Footage |
|---|---|---|---|---|---|---|---|
| 3/16″ TR14 | 3/16″ | 0.312″ | 3,000 lbs. | 12,000 lbs. | 2.0″ | 5 lbs. | Bulk |
| 1/4″ TR14 | 1/4″ | 0.375″ | 3,000 lbs. | 12,000 lbs. | 3.0″ | 7 lbs. | Bulk |
| 5/16″ TR14 | 5/16″ | 0.445″ | 2,500 lbs. | 10,000 lbs. | 4.0″ | 11 lbs. | Bulk |
| 3/8″ TR14 | 3/8″ | 0.503″ | 2,250 lbs. | 9,000 lbs. | 4.5″ | 12 lbs. | Bulk |
| 1/2″ TR14 | 1/2″ | 0.648″ | 1,500 lbs. | 6,000 lbs. | 6.5″ | 15 lbs. | Bulk |
| 3/4″ TR14 | 3/4″ | 0.886″ | 1,100 lbs. | 4,400 lbs. | 8.2″ | 20 lbs. | Bulk |
| 1″ TR14 | 1″ | 1.135″ | 900 lbs. | 3,600 lbs. | 10.0″ | 30 lbs. | Bulk |
Working pressure and Burst Pressure rated at room temperature.
