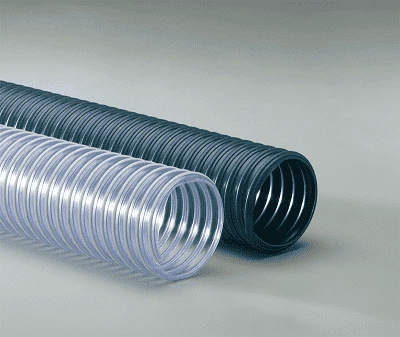

3.5-R-3-50 By Flexaust | R-3 Series | Material Handling Duct Hose | 3.5 Inch | 50ft
Original price was: $364.67.$95.99Current price is: $95.99.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
SPECIFICATIONS
| Application: | Excellent choice for ventilation applications, dust & fume removal | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Heavy weight PVC hose |
| Reinforcement: | Coated spring steel wire helix (Sizes 14″ I.D. and above – not available with a coated wire.) | Cover: | N/A |
| Temperature Range: | 20 deg. F to 160 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
| |||
| Part Number 25 ft Reels | Part Number 50 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight – 25ft (Lbs/Ft) | Weight – 50ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|---|---|
| R-3 1.25in | R-3 1.25in | 1.25″ | .035″ | 1.4″ | 2:1 | 29 | 30 | 7.5 lbs | 15 lbs |
| R-3 1.5in | R-3 1.5in | 1.5″ | .035″ | 1.5″ | 2:1 | 29 | 30 | 9 lbs | 18 lbs |
| R-3 2in | R-3 2in | 2″ | .035″ | 2.42″ | 2:1 | 29 | 30 | 11.5 lbs | 23 lbs |
| R-3 2.5in | R-3 2.5in | 2.5″ | .035″ | 2.84″ | 2:1 | 29 | 30 | 13.5 lbs | 27 lbs |
| R-3 3in | R-3 3in | 3″ | .035″ | 3.25″ | 2:1 | 28 | 20 | 16.25 lbs | 32.5 lbs |
| R-3 3.5in | R-3 3.5in | 3.5″ | .035″ | 3.51″ | 2:1 | 29 | 20 | 18.25 lbs | 36.5 lbs |
| R-3 4in | R-3 4in | 4″ | .045″ | 4.42″ | 2:1 | 29 | 20 | 22.75 lbs | 45.5 lbs |
| R-3 5in | R-3 5in | 5″ | .045″ | 5.53″ | 2:1 | 16 | 17 | 28.25 lbs | 56.5 lbs |
| R-3 6in | R-3 6in | 6″ | .045″ | 6.63″ | 2:1 | 8 | 15 | 34 lbs | 68 lbs |
| R-3 7in | R-3 7in | 7″ | .045″ | 7.17″ | 2:1 | 5 | 13 | 39.5 lbs | 79 lbs |
| R-3 8in | R-3 8in | 8″ | .045″ | 7.7″ | 2:1 | 3 | 11 | 45 lbs | 90 lbs |
| R-3 10in | R-3 10in | 10″ | .045″ | 9.92″ | 2.5:1 | 3 | 8 | 50 lbs | 100 lbs |
| R-3 12in | R-3 12in | 12″ | .045″ | 12″ | 2.5:1 | 2 | 7 | 60 lbs | 120 lbs |
| R-3 14in* | R-3 14in* | 14″ | .045″ | 14″ | 2.5:1 | 1.27 | 6 | 72.5 lbs | 145 lbs |
| R-3 16in* | R-3 16in* | 16″ | .045″ | 16″ | 2.5:1 | .7 | 5 | 82.5 lbs | 165 lbs |
*Wire not coated
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
| Color | Clear, Blue |
|---|
