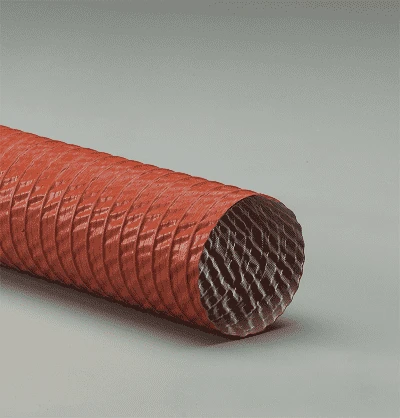

3.5-CWGS-25 By Flexaust | #2700350025 | CWGS | Air And Fume Duct Hose | 3.5 Inch | 25ft

Original price was: $360.00.Current price is: $97.99.

SPECIFICATIONS

Other Features:
Applications:	Aircraft	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Single-ply iron oxide red silicone coated fiberglass fabric
Reinforcement:	Spring steel wire helix	Cover:	N/A
Temperature Range:	-65 deg. F to 550 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A
Light weight & flexible. Available in longer lengths than traditional mandrel-built hose. Resistant to many oils & solvents, ozone, water, fungus & alkalis. Not recommended for continuous flexing.

Part Number 25 ft Reels	Inside Diameter	Wall Thickness (In)	Centerline Bend Radius (In)	Compression Ratio	Negative Pressure (In/Hg)	Working Pressure (PSI)	Weight – 25ft (Lbs/Ft)
CWGS 2in	2″	N/A	1.4″	5:1	29	30	5.25 lbs
CWGS 2.5in	2.5″	N/A	1.8″	5:1	24	30	7.25 lbs
CWGS 3in	3″	N/A	2.1″	5:1	14	30	7.75 lbs
CWGS 3.5in	3.5″	N/A	2.5″	5:1	9	30	9.75 lbs
CWGS 4in	4″	N/A	2.7″	6.6:1	12	18	10 lbs
CWGS 4.5in	4.5″	N/A	3″	6.6:1	8.5	16	12.25 lbs
CWGS 5in	5″	N/A	3.3″	6.6:1	6	14	12.5 lbs
CWGS 6in	6″	N/A	3.7″	6.6:1	5	7	13.5 lbs
CWGS 8in	8″	N/A	4.9″	6.6:1	2	5	18.25 lbs
CWGS 10in	10″	N/A	6.1″	6.6:1	1	4	22.75 lbs
CWGS 12in	12″	N/A	7.3″	6.6:1	.7	.3	27 lbs
