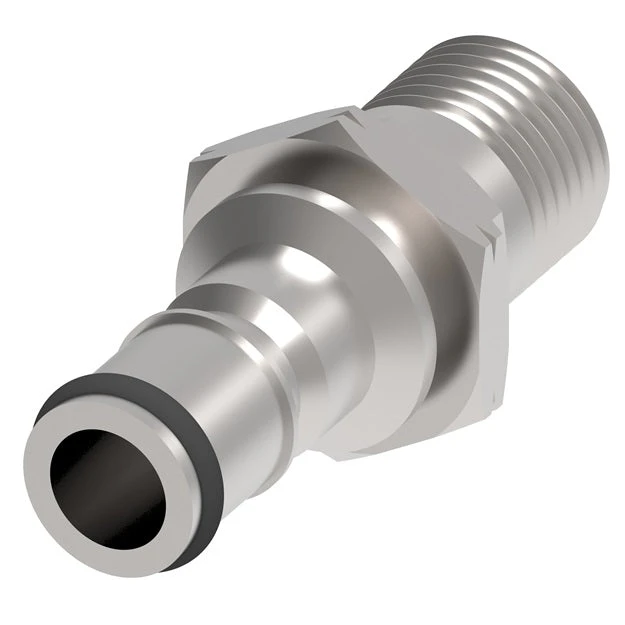

2KLF15 Hansen® By Danfoss | Food & Beverage Quick Disconnect Coupling | 2HKGL Series | 1/4" Male NPT X 1/4" Body Size | Plug For Liquid | NBR Seal | Stainless Steel

2KLF15 Hansen® By Danfoss | Food & Beverage Quick Disconnect Coupling | 2HKGL Series | 1/4″ Male NPT X 1/4″ Body Size | Plug For Liquid | NBR Seal | Stainless Steel

Original price was: $31.38.Current price is: $21.97.

SKU: AG9ZZ 8690870780069 Categories: Adapters & More, Quick Disconnects w/o Barb Tags: Collection-lvl1_All Hose Ends, Collection-lvl2_Quick Disconnects, Created in 2024, Matrixify2nd50kProducts

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Features:	The coupling is a push/pull and the material used is stainless steel. The socket part has 3 locking balls. This series was made based on the 2HKIL/2HKIG Danfoss Hansen series.
Applications & Markets:	Food and beverage Military Aerospace Chemical
Materials:	Standard body material: Stainless Steel

Body Size	Max. Operating Pressure		Min. Burst Pressure		Nominal Flow Diameter	Rated Flow		Air Inclusion	Fluid Loss
1/4″	110 bar	1595 psi	438 bar	6352 psi	5.9 mm	8,3 lpm	2,2 gpm	2,2 cc. max	1 cc. max


Figure 1			Figure 2		Figure 3	Figure 4	Figure 5
2HKGL Series \| Sockets
Part Number	Coupling Type	For Use with:	Body Size	End Connection	Figure	Dimensions
Part Number	Coupling Type	For Use with:	Body Size	End Connection	Figure	A	B	Hex
2HGRB	Socket/Female	Gas	1/4″	1/4″ Hose Barb	3	2.16″ (54,8mm)	1.65″ (41,9mm)	–
2HLRB	Socket/Female	Liquid	1/4″	1/4″ Hose Barb	3	2.16″ (54,8mm)	1.65″ (41,9mm)	–

2HGLLRA720	Socket/Female	Gas	1/4″	7/16-20 Male UNF	4	2.10″ (53,3mm)	1.43″ (36,3mm)	–
2HLLLRA720	Socket/Female	Liquid	1/4″	7/16-20 Male UNF	4	2.10″ (53,3mm)	1.43″ (36,3mm)	–

2HGBNB	Socket/Female	Gas	1/4″	1/4″ Hose Barb	5	2.73″ (69,3mm)	1.00″ (25,4mm)	–
2HLBNB	Socket/Female	Liquid	1/4″	1/4″ Hose Barb	5	1.64″ (41,6mm)	0.83″ (21,0mm)	–

2HGDNB	Socket/Female	Gas	1/4″	3/8″ Hose Barb	5	2.73″ (69,3mm)	1.00″ (25,4mm)	–
2HLDNB	Socket/Female	Liquid	1/4″	3/8″ Hose Barb	5	1.64″ (41,6mm)	0.83″ (21,0mm)	–

2HG720	Socket/Female	Gas	1/4″	7/16-20 Male UNF	1	2.16″ (54,8mm)	1.65″ (41,91mm)	0.81″ (20,57mm)
2HL720	Socket/Female	Liquid	1/4″	7/16-20 Male UNF	1	2.80″ (71,1mm)	1.00″ (25,4mm)	0.81″ (20,57mm)

2HG15	Socket/Female	Gas	1/4″	1/4″ Male NPT	1	2.73″ (69,3mm)	1.00″ (25,4mm)	0.81″ (20,57mm)
2HL15	Socket/Female	Liquid	1/4″	1/4″ Male NPT	1	1.60″ (40,6mm)	0.83″ (21,08mm)	0.81″ (20,57mm)

2HG20	Socket/Female	Gas	1/4″	3/8″ Male NPT	1	2.73″ (69,3mm)	1.00″ (25,4mm)	0.81″ (20,57mm)
2HL20	Socket/Female	Liquid	1/4″	3/8″ Male NPT	1	2.80″ (71,1mm)	1.00″ (25,4mm)	0.81″ (20,57mm)

2HG16	Socket/Female	Gas	1/4″	1/4″ Male NPT	2	2.73″ (69,3mm)	1.00″ (25,4mm)	0.81″ (20,57mm)
2HL16	Socket/Female	Liquid	1/4″	1/4″ Male NPT	2	2.16″ (54,8mm)	1.09″ (27,68mm)	0.81″ (20,57mm)


Figure 1			Figure 2			Figure 3
2HKGL Series \| Plugs
Part Number	Coupling Type	For Use with:	Body Size	End Connection	Figure	Dimensions
Part Number	Coupling Type	For Use with:	Body Size	End Connection	Figure	C	D	Hex
2KGF16	Plug/Male	Gas	1/4″	1/4″ Female NPT	8	1.98″ (50,29mm)	1.00″ (25,4mm)	0.88″ (22,35mm)
2KLF16	Plug/Male	Liquid	1/4″	1/4″ Female NPT	8	1.82″ (46,22mm)	0.90″ (22,8mm)	0.88″ (22,35mm)

2KLF720	Plug/Male	Liquid	1/4″	7/16-20 Female UNF	8	1.60″ (40,64mm)	0.90″ (22,8mm)	0.88″ (22,35mm)

2KGF15	Plug/Male	Gas	1/4″	1/4″ Female NPT	7	1.17″ (29,71mm)	1.00″ (25,4mm)	0.88″ (22,35mm)
2KLF15	Plug/Male	Liquid	1/4″	1/4″ Female NPT	7	2.00″ (50,8mm)	0.95″ (24,1mm)	0.88″ (22,35mm)

2KGF20	Plug/Male	Gas	1/4″	3/8″ Male NPT	7	1.97″ (50,03mm)	0.95″ (24,1mm)	0.88″ (22,35mm)
2KLF20	Plug/Male	Liquid	1/4″	3/8″ Male NPT	7	1.98″ (50,29mm)	1.00″ (25,4mm)	0.88″ (22,35mm)

2KGC	Plug/Male	Gas	1/4″	11/16-18 Female UNF	6	1.46″ (37,08mm)	0.80″ (20,3mm)	0.81″ (20,57mm)
2KLC	Plug/Male	Liquid	1/4″	11/16-18 Female UNF	6	1.46″ (37,08mm)	1.00″ (25,4mm)	0.88″ (22,35mm)

2KLS3	Plug/Male	Liquid	1/4″	7/16-20 Female UNF	6	1.45″ (36,83mm)	0,75″ (19,5mm)	0.86″ (21,84mm)
