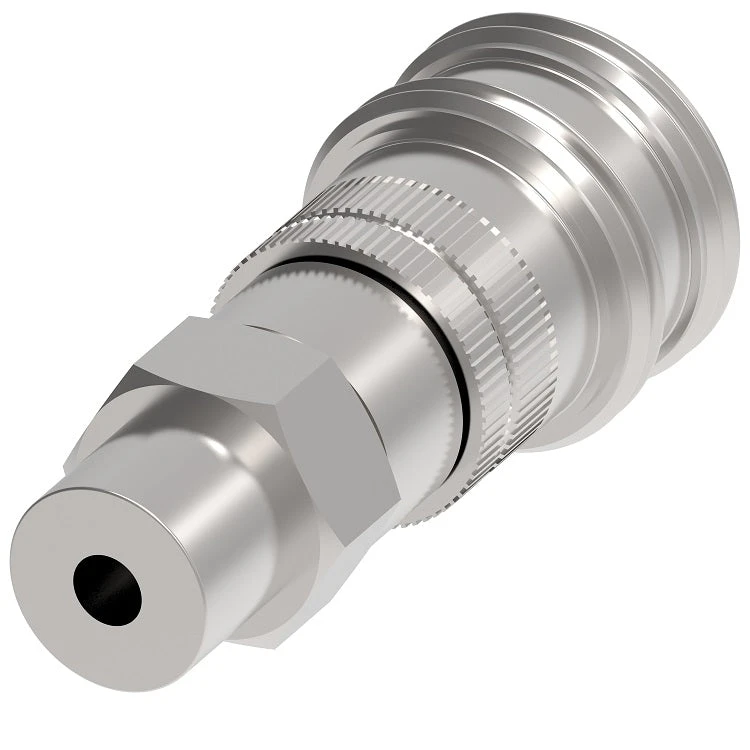

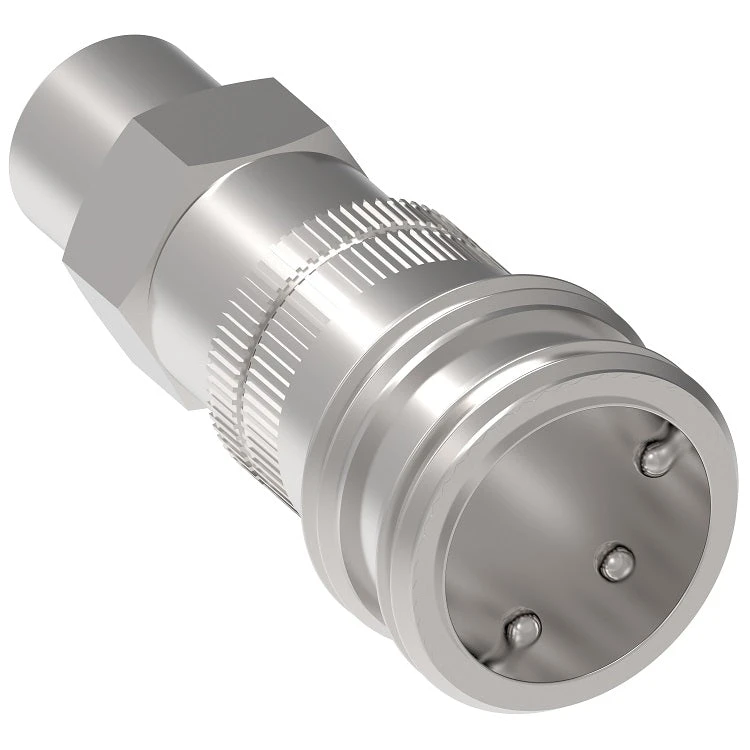

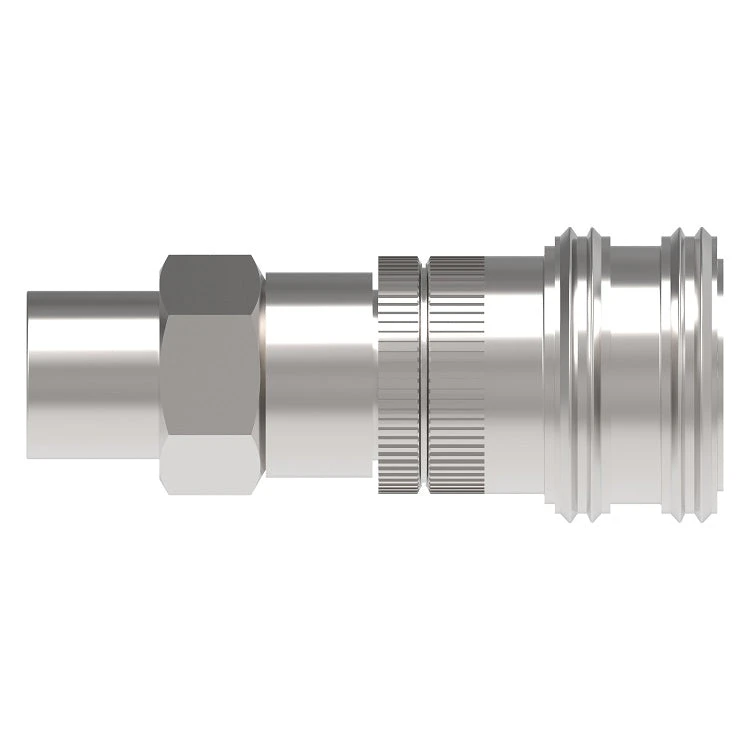

2HIG16 Hansen® By Danfoss | Quick Disconnect Coupling | 2HKIG Series | 1/4″ Female NPTF X 1/4″ Body Size | Socket | NBR Seal | Stainless Steel
Original price was: $101.68.$71.18Current price is: $71.18.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Product Features: |
|
|---|---|
| Applications & Markets: |
|
| Materials: |
|
| Body Size | Max. Operating Pressure Connected | Min. Burst Pressure | Rated Flow | All Inclusion | Fluid Loss | |||
|---|---|---|---|---|---|---|---|---|
| bar | psi | bar | psi | |||||
| 1/4 | 103 bar | 1,500 psi | 412 bar | 6,000 psi | 8.3 lpm | 2.2 gpm | 2.2 cc. Max | 1 cc. Max |
 |
 |
 |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
Socket/Female (Figure 1) |
Plugs (Male) (Figure 2) |
90° Elbow Socket/Female (Figure 3) |
||||||||
| 2HKIG Series | Male Threaded Ends | ||||||||||
| Part Number | Body Size | Type | Female Thread |
Figure | Dimensions | |||||
| NBR Seal | A | B | Hex | C | D | Hex | ||||
| 2HIG15 | 1/4″ | Socket/Female | 1/4-18 Male NPTF | 1 | 2.31″ (58.7mm) |
1.06″ (26.9mm) |
0.81″ (20.6mm) |
– | – | – |
| 2HIG20 | 1/4″ | Socket/Female | 3/8-18 Male NPTF | 1 | 2.31″ (58.7mm) |
1.06″ (26.9mm) |
0.81″ (20.6mm) |
– | – | – |
| 2HIG720 | 1/4″ | Socket/Female | 7/16-20 Male NPTF | 1 | 2.27″ (57.7mm) |
1.06″ (26.9mm) |
0.81″ (20.6mm) |
– | – | – |
| 2HIGLLRA720 | 1/4″ | Socket/Female | 7/16-20 Male NPTF | 3 | 2.09″ (53.1mm) |
1.06″ (26.9mm) |
– | – | – | – |
| 2KIGF15 | 1/4″ | Plug/Male | 1/4-18 Male NPTF | 2 | – | – | – | 1.98″ (50.3mm) |
1.01″ (25.7mm) |
0.69″ (17.5mm) |
| 2KIGF20 | 1/4″ | Plug/Male | 3/8-18 Male NPTF | 2 | – | – | – | 1.98″ (50.3mm) |
1.01″ (25.7mm) |
0.69″ (17.5mm) |
 |
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
Socket/Female (Figure 4) |
Plugs (Male) (Figure 5) |
|||||||||
| 2HKIG Series | Female Threaded Ends | ||||||||||
| Part Number | Body Size | Type | Female Thread |
Figure | Dimensions | |||||
| NBR Seal | A | B | Hex | C | D | Hex | ||||
| 2HIG16 | 1/4″ | Socket/Female | 1/4-18 Fem. NPTF | 4 | 2.26″ (57.4mm) |
1.06″ (26.9mm) |
0.81″ (20.6mm) |
– | – | – |
| 2KIGF16 | 1/4″ | Plug/Male | 1/4-18 Fem. NPTF | 5 | – | – | – | 1.84″ (46.7mm) |
1.01″ (25.7mm) |
0.69″ (17.5mm) |
| 2KIGF720 | 1/4″ | Plug/Male | 7/16-20 Fem. UNF | 5 | – | – | – | 1.61″ (40.9mm) |
1.01″ (25.7mm) |
0.69″ (17.5mm) |
| 2KIGF | 1/4″ | Plug/Male | 5/8-18 Fem. UNF | 5 | – | – | – | 1.17″ (29.7mm) |
1.01″ (25.7mm) |
0.68″ (17.3mm) |
