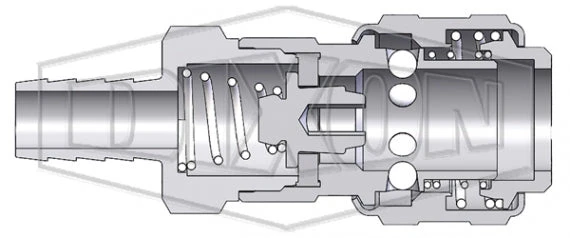

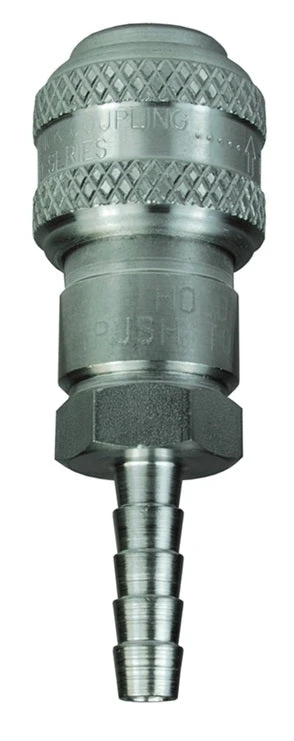

2DS2-S By Dixon Valve | Pneumatic Quick Disconnect Coupling | D-Series | Hose Barb | 1/4" Hose ID X 1/4" Automatic Industrial Interchange | Socket | Nitrile Seal | 303 Stainless Steel

2DS2-S By Dixon Valve | Pneumatic Quick Disconnect Coupling | D-Series | Hose Barb | 1/4″ Hose ID X 1/4″ Automatic Industrial Interchange | Socket | Nitrile Seal | 303 Stainless Steel

Original price was: $37.93.Current price is: $26.55.

SKU: AG9ZZ 1477976260644 Categories: Fittings & Clamps, Quick Disconnects with Barb Tags: All-categories, Collection-lvl1_All Hose Ends, Collection-lvl2_Quick Disconnects, Collection-lvl3_Pneumatic Quick Disconnects, D-Series - Automatic Industrial Interchange, D-Series Automatic Industrial Interchange Couplers (Standard Hose Barb), DF-Series - Automatic and Manual Industrial Interchange, Dixon Quick Disconnect Couplings, Hydraulic Couplings, Hydraulic Hoses and Fittings, LegacyProductTypeReplacement_All Categories, Material_stainless-steel, Matrixify2nd50kProducts, Pl_pneumatic-quick-disconnects, Pneumatic Couplings, Pneumatic Fittings, Quick-disconnects

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Compatibility & Interchange:	Foster 3, 4, 5 and 6 Series Parker 30 – Series Automatic Interchange Hansen 3000, 4000, 5000 and 6000
Construction:	Machined components are manufactured using solid bar stock. Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life. Nitrile (Nitrile Rubber) seals are standard. Steel componentry is plated using ROHS Compliant Trivalent Chrome. Steel tubular valve.
Safety Notes:	It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18″ long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure. Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer’s catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application. Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

D-Series \| Automatic Industrial Interchange Coupler (Standard Hose Barb)

Part Number	Coupling Type	Body Size	Hose I.D.	Material	Length	Max. OD	Hex	Max. Working Pressure		Burst Pressure
Part Number	Coupling Type	Body Size	Hose I.D.	Material	Length	Max. OD	Hex	Brass Coupler & Brass Plug:	Brass Coupler & Steel Plug:	Brass Coupler & Brass Plug:	Brass Coupler & Steel Plug:
2DS2-B	Socket/Female	1/4″	1/4″	Brass	2.90″ (73.7mm)	0.98″ (24.9mm)	11/16″	300 PSI PSI (20 bar)	500 PSI (35 bar)	16,000 PSI (1,100 bar)	16,000 PSI (1,100 bar)
2DS2-S	Socket/Female	1/4″	1/4″	303 Stainless	2.90″ (73.7mm)	0.98″ (24.9mm)	11/16″	303 S.S. Coupler & 303 S.S. Plug: 500 PSI (35 bar)		303 S.S. Coupler & 303 S.S. Plug: 26,000 PSI (1,795 bar)
2DS3-B	Socket/Female	1/4″	3/8″	Brass	2.90″ (73.7mm)	0.98″ (24.9mm)	11/16″	300 PSI PSI (20 bar)	500 PSI (35 bar)	16,000 PSI (1,100 bar)	16,000 PSI (1,100 bar)
2DS3-S	Socket/Female	1/4″	3/8″	303 Stainless	2.90″ (73.7mm)	0.98″ (24.9mm)	11/16″	303 S.S. Coupler & 303 S.S. Plug: 500 PSI (35 bar)		303 S.S. Coupler & 303 S.S. Plug: 26,000 PSI (1,795 bar)
3DS2-B	Socket/Female	3/8″	1/4″	Brass	3.00″ (76.2mm)	1.18″ (30.0mm)	7/8″	300 PSI PSI (20 bar)	500 PSI (35 bar)	14,500 PSI (1,000 bar)	15,500 PSI (1,070 bar)
3DS3-B	Socket/Female	3/8″	3/8″	Brass	3.00″ (76.2mm)	1.18″ (30.0mm)	7/8″	300 PSI PSI (20 bar)	500 PSI (35 bar)	14,500 PSI (1,000 bar)	15,500 PSI (1,070 bar)
3DS3-S	Socket/Female	3/8″	3/8″	303 Stainless	3.00″ (76.2mm)	1.18″ (30.0mm)	7/8″	303 S.S. Coupler & 303 S.S. Plug: 500 PSI (35 bar)		303 S.S. Coupler & 303 S.S. Plug: 25,500 PSI (1,760 bar)
3DS4-B	Socket/Female	3/8″	1/2″	Brass	3.00″ (76.2mm)	1.18″ (30.0mm)	7/8″	300 PSI PSI (20 bar)	500 PSI (35 bar)	14,500 PSI (1,000 bar)	15,500 PSI (1,070 bar)
4DS3-B	Socket/Female	1/2″	3/8″	Brass	3.51″ (89.2mm)	1.34″ (34.0mm)	1-1/16″	300 PSI PSI (20 bar)	500 PSI (35 bar)	10,500 PSI (1,000 bar)	14,000 PSI (965 bar)
4DS4-B	Socket/Female	1/2″	1/2″	Brass	3.51″ (89.2mm)	1.34″ (34.0mm)	1-1/16″	300 PSI PSI (20 bar)	500 PSI (35 bar)	10,500 PSI (1,000 bar)	14,000 PSI (965 bar)
4DS4-S	Socket/Female	1/2″	1/2″	303 Stainless	3.51″ (89.2mm)	1.34″ (34.0mm)	1-1/16″	303 S.S. Coupler & 303 S.S. Plug: 500 PSI (35 bar)		303 S.S. Coupler & 303 S.S. Plug: 20,500 PSI (1,415 bar)
4DS6-B	Socket/Female	1/2″	3/4″	Brass	3.51″ (89.2mm)	1.34″ (34.0mm)	1-1/16″	300 PSI PSI (20 bar)	500 PSI (35 bar)	10,500 PSI (1,000 bar)	14,000 PSI (965 bar)
6DS4-B	Socket/Female	3/4″	1/2″	Brass	3.00″ (76.2mm)	1.73″ (43.9mm)	1-5/16″	500 PSI (35 bar)	–	10,000 PSI (670 bar)	–
6DS6-B	Socket/Female	3/4″	3/4″	Brass	3.00″ (76.2mm)	1.73″ (43.9mm)	1-5/16″	500 PSI (35 bar)	–	10,000 PSI (670 bar)	–
6DS8-B	Socket/Female	3/4″	1″	Brass	3.24″ (82.3mm)	1.73″ (43.9mm)	1-5/16″	500 PSI (35 bar)	–	10,000 PSI (670 bar)	–

DF-Series \| Industrial Interchange Plug (Standard Hose Barb)

Part Number	Coupling Type	Body Size	Hose I.D.	Material	Length	Maximum OD	Hex	Working Pressure / Burst Pressure when Connected to:
D2S2	Plug/Male	1/4″	1/4″	Steel	2.09″ (53.1mm)	0.56″ (14.2mm)	–	Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 16,000 PSI (1,100 bar) Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 11,500 PSI (790 bar) Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 6,500 PSI (448 bar)
D2S2-B	Plug/Male	1/4″	1/4″	Brass	2.09″ (53.1mm)	0.56″ (14.2mm)	–	Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 16,000 PSI (1,100 bar) Brass F-Series Manual Couplers: Max. Working: 300 PSI (20 bar) \| Burst: 8,500 PSI (586 bar)
D2S2-S	Plug/Male	1/4″	1/4″	303 Stainless	2.09″ (53.1mm)	0.56″ (14.2mm)	–	303 S.S. D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 26,000 PSI (1,795 bar) 303 S.S. F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 11,500 PSI (795 bar)
D2S2.5	Plug/Male	1/4″	5/16″	Steel	2.09″ (53.1mm)	0.56″ (14.2mm)	–	Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 16,000 PSI (1,100 bar) Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 11,500 PSI (790 bar) Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 6,500 PSI (448 bar)
D2S3	Plug/Male	1/4″	3/8″	Steel	2.09″ (53.1mm)	0.56″ (14.2mm)	–	Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 16,000 PSI (1,100 bar) Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 11,500 PSI (790 bar) Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 6,500 PSI (448 bar)
D2S3-B	Plug/Male	1/4″	3/8″	Brass	2.09″ (53.1mm)	0.56″ (14.2mm)	–	Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 16,000 PSI (1,100 bar) Brass F-Series Manual Couplers: Max. Working: 300 PSI (20 bar) \| Burst: 8,500 PSI (586 bar)
D2S3-S	Plug/Male	1/4″	3/8″	303 Stainless	2.09″ (53.1mm)	0.56″ (14.2mm)	–	303 S.S. D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 26,000 PSI (1,795 bar) 303 S.S. F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 11,500 PSI (795 bar)
D3S2	Plug/Male	3/8″	1/4″	Steel	2.21″ (56.1mm)	0.75″ (19.1mm)	–	Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 15,500 PSI (1,070 bar) Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 11,500 PSI (790 bar) Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 19,500 PSI (1,345 bar)
D3S3	Plug/Male	3/8″	3/8″	Steel	2.21″ (56.1mm)	0.75″ (19.1mm)	–	Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 15,500 PSI (1,070 bar) Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 11,500 PSI (790 bar) Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 19,500 PSI (1,345 bar)
D3S3-B	Plug/Male	3/8″	3/8″	Brass	2.21″ (56.1mm)	0.75″ (19.1mm)	–	Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 14,500 PSI (1,000 bar) Brass F-Series Manual Couplers: Max. Working: 300 PSI (20 bar) \| Burst: 10,000 PSI (690 bar)
D3S3-S	Plug/Male	3/8″	3/8″	303 Stainless	2.21″ (56.1mm)	0.75″ (19.1mm)	–	303 Stainless Steel D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 25,500 PSI (1,760 bar) 303 Stainless Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 20,500 PSI (1,415 bar)
D3S4	Plug/Male	3/8″	1/2″	Steel	2.21″ (56.1mm)	0.75″ (19.1mm)	–	Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 15,500 PSI (1,070 bar) Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 11,500 PSI (790 bar) Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 19,500 PSI (1,345 bar)
D4S3	Plug/Male	1/2″	3/8″	Steel	2.53″ (64.3mm)	0.75″ (19.1mm)	–	Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 14,000 PSI (965 bar) Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 15,500 PSI (1,070 bar)
D4S3-B	Plug/Male	1/2″	3/8″	Brass	2.53″ (64.3mm)	0.75″ (19.1mm)	–	Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 10,500 PSI (725 bar)
D4S4	Plug/Male	1/2″	1/2″	Steel	2.53″ (64.3mm)	0.75″ (19.1mm)	–	Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 14,000 PSI (965 bar) Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 15,500 PSI (1,070 bar)
D4S4-B	Plug/Male	1/2″	1/2″	Brass	2.53″ (64.3mm)	0.75″ (19.1mm)	–	Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 10,500 PSI (725 bar)
D4S4-S	Plug/Male	1/2″	1/2″	303 Stainless	2.53″ (64.3mm)	0.75″ (19.1mm)	–	303 S.S. D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 20,500 PSI (1,415 bar) 303 S.S. F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 15,000 PSI (1,035 bar)
D4S6	Plug/Male	1/2″	3/4″	Steel	2.53″ (64.3mm)	0.94″ (23.9mm)	–	Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 14,000 PSI (965 bar) Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 15,500 PSI (1,070 bar)
D4S6-B	Plug/Male	1/2″	3/4″	Brass	2.53″ (64.3mm)	0.94″ (23.9mm)	–	Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 10,500 PSI (725 bar)
D6S4	Plug/Male	3/4″	1/2″	Steel	3.49″ (88.7mm)	1.52″ (38.6mm)	–	Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 10,000 PSI (670 bar)
D6S6	Plug/Male	3/4″	3/4″	Steel	3.49″ (88.7mm)	1.52″ (38.6mm)	–	Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 10,000 PSI (670 bar)
D6S8	Plug/Male	3/4″	1″	Steel	3.49″ (88.7mm)	1.52″ (38.6mm)	–	Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) \| Burst: 10,000 PSI (670 bar)
