Sale!

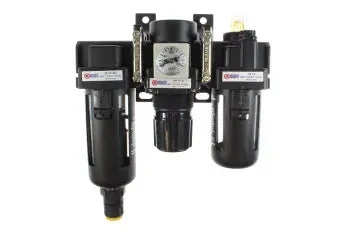

29-2T14-00D By Coilhose | 29 Series Integral Assembly | Filter, Regulator, & Lubricator | Auto Drain | Mini | 1/4" Pipe Size | Aluminum

29-2T14-00D By Coilhose | 29 Series Integral Assembly | Filter, Regulator, & Lubricator | Auto Drain | Mini | 1/4″ Pipe Size | Aluminum

Original price was: $121.26.Current price is: $84.88.

SKU: AG9ZZ 14699076223346 Categories: , Tags: , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Overview:
  • The 29 Series of Filters – Regulators – Lubricators are made from lightweight aluminum bodies, which lend themselves
    to a wide variety of applications. These filters, regulators and lubricators are also “modular” in design, meaning the
    individual units can be removed from the line without disturbing the piping or other components. The 29 Series modular
    connecting system is designed to save space, making it ideal for OEM equipment as well as suitable for tight areas in
    shop or factory air lines and assembly areas.
Features:
  • Modular design
  • Metal bowl option
  • Low pressure spring option
  • 40 micron element standard
  • 5, 20 micron element option
Warning:
  • Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly
    burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions
    regarding their compatibility with your applications, consult the factory or use a metal bowl.
Proof Pressure: 220 PSI Max Operating Pressure: 145 PSI
Maximum Operating Temp.: Plastic Bowl: 140° F
Metal Bowl: 150° F		 Ambient & Fluid Temp: 32° F to 140° F
Nominal Filtration Rating1: Standard: 40 Micron
Optional: 5, 20 Micron		 Materials: Plastic Bowl: Polycarbonate
Metal Bowl2: Aluminum
Body: Aluminum
Filter Element: Polypropylene
Bowl Guard3 Steel Regulating Range4: 5 PSI – 120 PSI
Regulator Construction: Relieving Type Gauge5: Square

ManualModel Auto DrainModel Pipe Size Max. FlowRate CFM Individual Parts Features
Filter / Regulator + Lubricator
29-2D18-00 29-2D18-00D 1/8″ 20 Filter/Regulator: 29-2C18-00D
Lubricator: 29-2L18 		Mini
– 29-2D18-00DM 1/8″ 20 Filter/Regulator: 29-2C18-00DM
Lubricator: 29-2L18-M 		Mini, Metal Bowl
29-2D14-00 29-2D14-00D 1/4″ 20 Filter/Regulator: 29-2C14-00D
Lubricator: 29-2L14 		Mini
– 29-2D14-00DM 1/4″ 20 Filter/Regulator: 29-2C14-00DM
Lubricator: 29-2L14-M 		Mini, Metal Bowl
29-3D14-00 29-3D14-00D 1/4″ 60 Filter/Regulator: 29-3C14-00D
Lubricator: 29-3L14 		Compact
– 29-3D14-00DM 1/4″ 60 Filter/Regulator: 29-3C14-00DM
Lubricator: 29-3L14-M 		Compact, Metal Bowl
29-3D38-00 29-3D38-00D 3/8″ 60 Filter/Regulator: 29-3C38-00D
Lubricator: 29-3L38 		Compact
– 29-3D38-00DM 3/8″ 60 Filter/Regulator: 29-3C38-00DM
Lubricator: 29-3L38-M 		Compact, Metal Bowl
29-4D38-00 29-4D38-00D 3/8″ 106 Filter/Regulator: 29-4C38-00D
Lubricator: 29-4L38 		Standard
– 29-4D38-00DM 3/8″ 106 Filter/Regulator: 29-4C38-00DM
Lubricator: 29-4L38-M 		Standard, Metal Bowl
29-4D12-00 29-4D12-00D 1/2″ 106 Filter/Regulator: 29-4C12-00D
Lubricator: 29-4L12 		Standard
– 29-4D12-00DM 1/2″ 106 Filter/Regulator: 29-4C12-00DM
Lubricator: 29-4L12-M 		Standard, Metal Bowl
Filter + Regulator + Lubricator
29-2T18-00 29-2T18-00D 1/8″ 20 Filter: 29-2F18-0D
Regulator: 29-2R18-0
Lubricator: 29-2L18 		Mini
– 29-2T18-00DM 1/8″ 20 Filter: 29-2F18-0DM
Regulator: 29-2R18-0
Lubricator: 29-2L18-M 		Mini, Metal Bowl
29-2T14-00 29-2T14-00D 1/4″ 20 Filter: 29-2F14-0D
Regulator: 29-2R14-0
Lubricator: 29-2L14 		Mini
– 29-2T14-00DM 1/4″ 20 Filter: 29-2F14-0DM
Regulator: 29-2R14-0
Lubricator: 29-2L14-M 		Mini, Metal Bowl
29-3T14-00 29-3T14-00D 1/4″ 70 Filter: 29-3F14-0D
Regulator: 29-3R14-0
Lubricator: 29-3L14 		Compact
– 29-3T14-00DM 1/4″ 70 Filter: 29-3F14-0D
Regulator: 29-3R14-0
Lubricator: 29-3L14 		Compact, Metal Bowl
29-3T38-00 29-3T38-00D 3/8″ 70 Filter: 29-3F38-0D
Regulator: 29-3R38-0
Lubricator: 29-3L38 		Compact
– 29-3T38-00DM 3/8″ 70 Filter: 29-3F38-0DM
Regulator: 29-3R38-0
Lubricator: 29-3L38-M 		Compact, Metal Bowl
29-4T38-00 29-4T38-00D 3/8″ 110 Filter: 29-4F38-0D
Regulator: 29-4R38-0
Lubricator: 29-4L38 		Standard
– 29-4T38-00DM 3/8″ 110 Filter: 29-4F38-0DM
Regulator: 29-4R38-0
Lubricator: 29-4L38-M 		Standard, Metal Bowl
29-4T12-00 29-4T12-00D 1/2″ 140 Filter: 29-4F12-0D
Regulator: 29-4R12-0
Lubricator: 29-4L12 		Standard
– 29-4T12-00DM 1/2″ 140 Filter: 29-4F12-0DM
Regulator: 29-4R12-0
Lubricator: 29-4L12-M 		Standard, Metal Bowl
29-5T34-00 29-5T34-00D 3/4″ 175 Filter: 29-5F34-0D
Regulator: 29-5R34-0
Lubricator: 29-5L34 		HiFlow
– 29-5T34-00DM 3/4″ 175 Filter: 29-5F34-0DM
Regulator: 29-5R34-0
Lubricator: 29-5L34-M 		HiFlow, Metal Bowl
29-5T10-00 29-5T10-00D 1″ 175 Filter: 29-5F10-0D
Regulator: 29-5R10-0
Lubricator: 29-5L10 		HiFlow
– 29-5T10-00DM 1″ 175 Filter: 29-5F10-0DM
Regulator: 29-5R10-0
Lubricator: 29-5L10-M 		HiFlow, Metal Bowl

1Standard: 40 micron – Options: 5, 20 micron
2Metal Bowl is available on all Series
3No bowl guard on Series 2D, 2T
4Option: Low Pressure Regulating Range 5 – 35 psi
5Option: Round gauge
