Sale!

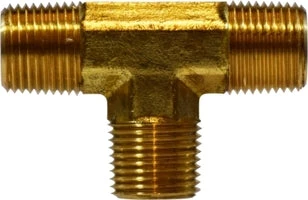

28291 By Midland | Forged All | 1/4″ Male NPTF X 1/4″ Male NPTF X 1/4″ Male NPTF | Tee | Brass
Original price was: $12.00.$8.40Current price is: $8.40.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
SPECIFICATIONS
| Applications: |
Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems |
Used With: | Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe |
|---|---|---|---|
| SAE Rating: | N/A | Conformance: | Meets specifications and standards of ASA, ASME and SAE |
| Vibration: | Fair Resistance. | Temperature Range: | -65°F to +250°F (-53°C to +121°C) |
| Tolerance: | +/- .02 on all dimensions. Dimension Data can change without notice. | Lead Free: | Not Lead Free |
| Pipe Size | 1/16″ | 1/8″ | 1/4″ | 3/8″ | 1/2″ | 3/4″ | 1″ |
|---|---|---|---|---|---|---|---|
| Thread Size | 1/16-27 | 1/8-27 | 1/4-18 | 3/8-18 | 1/2-14 | 3/4-14 | 1-11-1/2 |
| Working Pressure | 1200 PSI | 1200 PSI | 1200 PSI | 1200 PSI | 1200 PSI | 1000 PSI | 1000 PSI |
| Thread OD | 1/4″ | 3/8″ | 1/2″ | 5/8″ | 3/4″ | 1″ | 1-1/4″ |
| Crossover Series: | ||||
|---|---|---|---|---|
| 132F | T12 | M101 | ||
 |
|||||
|---|---|---|---|---|---|
| Part Number | Thread Size Male NPTF |
A | B | Body Width | Approx. Weight (Lbs.) |
| 28290 (28-290) |
1/8″ | 0.75″ | 0.75″ | 0.43″ | 0.06 |
| 28291 (28-291) |
1/4″ | 0.86″ | 0.86″ | 0.43″ | 0.08 |
| 28292 (28-292) |
3/8″ | 1.09″ | 1.09″ | 0.60″ | 0.16 |
| 28293 (28-293) |
1/2″ | 1.22″ | 1.22″ | 0.68″ | 0.22 |
| 28294 (28-294) |
3/4″ | 1.43″ | 1.43″ | 0.87″ | 0.38 |
