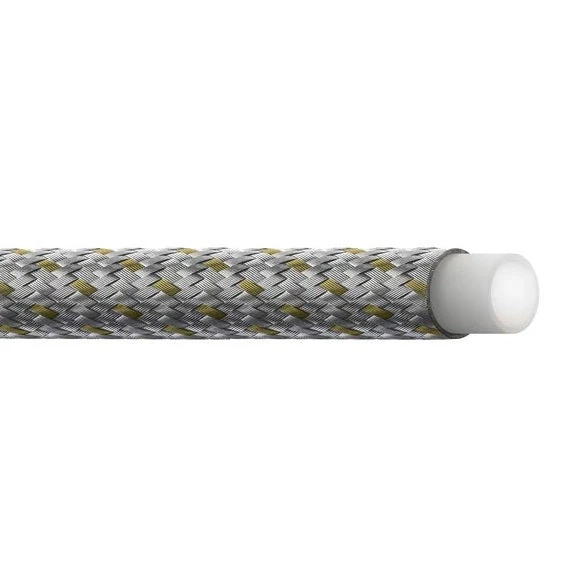

2807-16 Everflex By Danfoss | PTFE Hose | SAE 100R14A | 0.88″ Hose ID | 1.03″ Hose OD | Stainless Steel Braid
Original price was: $59.95.$41.97Current price is: $41.97.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Hose Properties: | |||
|---|---|---|---|
| Applications: | Hot air, steam, compressor discharge. Most chemical applications. Not recommended for steam-cold water cycling. | SAE Ratings: | Meets: SAE 100R14A, DNV, USCG, ABS |
| Other Ratings: | N/A | Tube: | Extruded PTFE Tube |
| Reinforcement: | N/A | Cover: | Single Layer Stainless Steel Wire Braid |
| Operating Parameters: | -100°F to +500°F (-73°C to +260°C) Steam 200 psi at +388°F max | ||
| Part Number | Hose ID | Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | Vacuum Service | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | kPa | in. Hg | |
| 2807-3 | 3,6mm | 0.14″ | 6,4mm | 0.25″ | 210,0 bar | 3000 psi | 840,0 bar | 12000 psi | 38,1mm | 1.50″ | 0,06 kg/m | 0.04 lbs/ft | 94,8 kPa | 28 In/Hg |
| 2807-4 | 4,8mm | 0.19″ | 7,6mm | 0.30″ | 210,0 bar | 3000 psi | 840,0 bar | 12,000 psi | 50,8mm | 2.00″ | 0,09 kg/m | 0.06 lbs/ft | 94,8 kPa | 28 In/Hg |
| 2807-5 | 6,6mm | 0.26″ | 9,4mm | 0.37″ | 210,0 bar | 3000 psi | 840,0 bar | 12,000 psi | 76,2mm | 3.00″ | 0,12 kg/m | 0.08 lbs/ft | 94,8 kPa | 28 In/Hg |
| 2807-6 | 8,1mm | 0.32″ | 10,9mm | 0.43″ | 175,0 bar | 2500 psi | 700,0 bar | 10,000 psi | 101,6mm | 4.00″ | 0,15 kg/m | 0.10 lbs/ft | 94,8kPa ‡ | 28 In/Hg ‡ |
| 2807-8 | 10,7mm | 0.42″ | 13,7mm | 0.54″ | 140,0 bar | 2000 psi | 560,0 bar | 8000 psi | 133,4mm | 5.25″ | 0,18 kg/m | 0.12 lbs/ft | 94,8 kPa ‡ | 28 In/Hg ‡ |
| 2807-10 | 13,0mm | 0.51″ | 16,0mm | 0.63″ | 105,0 bar | 1500 psi | 420,0 bar | 6000 psi | 165,1mm | 6.50″ | 0,24 kg/m | 0.16 lbs/ft | 94,8 kPa ‡ | 28 In/Hg ‡ |
| 2807-12 | 16,3mm | 0.64″ | 19,3mm | 0.76″ | 84,0 bar | 1200 psi | 335,0 bar | 4800 psi | 196,9mm | 7.75″ | 0,27 kg/m | 0.18 lbs/ft | 94,8 kPa ‡ | 28 In/Hg ‡ |
| 2807-16 | 22,4mm | 0.88″ | 26,2mm | 1.03″ | 70,0 bar | 1000 psi | 280,0 bar | 4000 psi | 228,6mm | 9.00″ | 0,39 kg/m | 0.26 lbs/ft | 40,6 kPa ‡ | 12 In/Hg ‡ |
| 2807-20 | 28,4mm | 1.12″ | 32,8mm | 1.29″ | 43,0 bar | 625 psi | 175,0 bar | 2500 psi | 406,4mm | 16.00″ | 0,51 kg/m | 0.34 lbs/ft | 40,6 kPa ‡ | 12 In/Hg ‡ |
Warning: These hoses can be used to convey hazardous chemicals, steam,
hot liquids or other dangerous materials which can cause death, serious
bodily injury including burns, pressure wounds or chemical exposure if
released accidentally. They should, therefore, only be handled or worked
on by personnel properly trained in the safe handling of the materials or
chemicals conveyed in the hoses.
‡ Maximum negative pressure for -16 and larger are suitable for hose which
has suffered no external damage or kinking. If greater negative pressures
are required for -16 and larger hoses, the use of an internal support coil
is recommended. Use of an internal support coil in -06 and larger hose is
recommended for tube support where extended or continuous service at
high temperature together with low or negative pressure is expected.
Bulk / By the Foot: We sell Danfoss hose in “Bulk Length” unless otherwise specified in the title or option selector as “Exact Length”. When you buy “Bulk Length” hose you are agreeing to buy
multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you
need a single piece then you can select an “Exact Length” option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose
supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc.,
or any other entity. Consult current master catalog for additional warnings and cautions.
