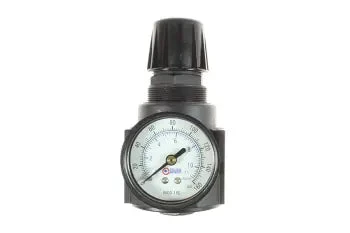

27R3-GP By Coilhose | 27 Modular Series Regulator | Gauge | Panel Mount | 3/8″ Pipe Size | Die Cast Aluminum

Original price was: $87.82.Current price is: $61.47.

SKU: AG9ZZ 14699082776946 Categories: Pneumatic Equipment, Tools & Equipment Tags: 029292497442, 27 Modular Series, 27R3-GP, 3/8" Pipe size, Balanced poppet valve, Coilhose, Gauge, Gauge port, Locking adjustment knob, Modular, Non-rising, Panel Mount, Pressure build-up, Regulator, Secondary outlet port, Self relieving

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Overview:
The 27 Series Regulators are engineered for exceptional installation flexibility. These units have a 1/2″ body for higher flow rates and are constructed of die-cast aluminum with a non-rising adjusting knob. These Regulators can be connected to other 27 Series units using modular clamps or pipe nipples and can be individually connected to an airline using a panel mount bracket.
Features:
1/4″ inch gauge ports can be used as secondary outlet ports. Balanced poppet valve design assures superior performance. 0-250 PSI, 0-125 PSI, 0-60 PSI, 0-25 PSI pressure ranges. Self relieving feature prevents excessive pressure build-up. Locking adjustment knob. Panel mount and gauge options available.
Warning:
Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.

Maximum Supply Pressure:	250 PSI	Maximum Operating Temp:	250° F
Materials:	Adjusting Knob: High Impact Plastic Body: Die Cast Aluminum	Height:	5-1/2″
Maximum Diameter:	2-3/4″	Bowl Capacity:	1-3/4 lbs
Regulator Pressure Ranges:	0-200 – Optional 0-125 – Standard 0-60 – Optional 0-25 – Optional

Supply 100 PSI Regulated Pressure	Pressure Drop
Supply 100 PSI Regulated Pressure	5	10	20
3/8″ at 25 PSI	20 SCFM	70 SCFM	80 SCFM
1/2″ at 25 PSI	20 SCFM	80 SCFM	120 SCFM
3/8″ at 50 PSI	20 SCFM	40 SCFM	100 SCFM
1/2″ at 50 PSI	20 SCFM	40 SCFM	120 SCFM
3/8″ at 75 PSI	10 SCFM	20 SCFM	100 SCFM
1/2″ at 75 PSI	10 SCFM	20 SCFM	120 SCFM
Note: All values are approximate.

Model	Pipe Size	Gauge	Panel Mount	Max Pressure	Pressure Range
27R3	3/8″	No	No	250 PSI	0-125 PSI
27R3-L	3/8″	No	No	250 PSI	0-60 PSI
27R3-J	3/8″	No	No	250 PSI	0-25 PSI
27R3-H	3/8″	No	No	250 PSI	0-250 PSI
27R3-GP	3/8″	Yes	Yes	250 PSI	0-125 PSI
27R3-GL	3/8″	Yes	No	250 PSI	0-60 PSI
27R3-GJ	3/8″	Yes	No	250 PSI	0-25 PSI
27R3-GHP	3/8″	Yes	Yes	250 PSI	0-250 PSI
27R3-GH	3/8″	Yes	No	250 PSI	0-250 PSI
27R3-G	3/8″	Yes	No	250 PSI	0-125 PSI
27R3-P	3/8″	No	Yes	250 PSI	0-125 PSI

27R4	1/2″	No	No	250 PSI	0-125 PSI
27R4-L	1/2″	No	No	250 PSI	0-60 PSI
27R4-J	1/2″	No	No	250 PSI	0-25 PSI
27R4-HP	1/2″	No	Yes	250 PSI	0-250 PSI
27R4-H	1/2″	No	No	250 PSI	0-250 PSI
27R4-GP	1/2″	Yes	Yes	250 PSI	0-125 PSI
27R4-GL	1/2″	Yes	No	250 PSI	0-60 PSI
27R4-GJP	1/2″	Yes	Yes	250 PSI	0-25 PSI
27R4-GJ	1/2″	Yes	No	250 PSI	0-25 PSI
27R4-GHP	1/2″	Yes	Yes	250 PSI	0-250 PSI
27R4-GH	1/2″	Yes	No	250 PSI	0-250 PSI
27R4-G	1/2″	Yes	No	250 PSI	0-125 PSI
27R4-P	1/2″	No	Yes	250 PSI	0-125 PSI

27R6	3/4″	No	No	250 PSI	0-125 PSI
27R6-HP	3/4″	No	Yes	250 PSI	0-250 PSI
27R6-H	3/4″	No	No	250 PSI	0-250 PSI
27R6-GP	3/4″	Yes	Yes	250 PSI	0-125 PSI
27R6-GL	3/4″	Yes	No	250 PSI	0-60 PSI
27R6-GJ	3/4″	Yes	No	250 PSI	0-25 PSI
27R6-GHP	3/4″	Yes	Yes	250 PSI	0-250 PSI
27R6-GH	3/4″	Yes	No	250 PSI	0-250 PSI
27R6-G	3/4″	Yes	No	250 PSI	0-125 PSI
27R6-L	3/4″	No	No	250 PSI	0-60 PSI
