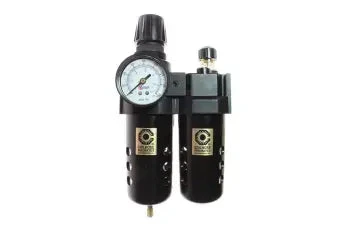

27FCL4-GX By Coilhose | 27 Modular Series Integral Filter/Regulator + Lubricator | Gauge | 5 Micron Element | 1/2″ Pipe Size

Overview:
27 Series combination units offer pre-assembled units for fast installations. The integral filter/regulator offers a space saving design. Duo and trio assemblies utilize the modular clamping system to ease installation.
Features:
Trio performance in a duo assembly. Gauge packaged uninstalled for installation on either side. Bowl guard supplied standard. Filter, regulator and lubricator options available.
Warning:
Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.

Model	Pipe Size	Drain	Gauge	Material	Max Pressure	Micron Level	Pressure Range
27FCL3-G	3/8″	Manual	Yes	Polycarbonate	150 PSI	40 Micron Element	0-125 PSI
27FC3-GHS	3/8″	Manual	Yes	Metal w/ Sight glass	250 PSI	40 Micron Element	0-250 PSI
27FCL3-GM	3/8″	Manual	Yes	Metal Bowl	250 PSI	40 Micron Element	0-125 PSI
27FCL3-GS	3/8″	Manual	Yes	Metal w/ Sight glass	250 PSI	40 Micron Element	0-125 PSI
27FCL4-G	1/2″	Manual	Yes	Polycarbonate	150 PSI	40 Micron Element	0-125 PSI
27FCL4-GHM	1/2″	Manual	Yes	Metal Bowl	250 PSI	40 Micron Element	0-250 PSI
27FCL4-GHS	1/2″	Manual	Yes	Metal w/ Sight glass	250 PSI	40 Micron Element	0-250 PSI
27FCL4-GL	1/2″	Manual	Yes	Polycarbonate	150 PSI	40 Micron Element	0-125 PSI
27FCL4-GM	1/2″	Manual	Yes	Metal Bowl	250 PSI	40 Micron Element	0-125 PSI
27FCL4-GS	1/2″	Manual	Yes	Metal w/ Sight glass	250 PSI	40 Micron Element	0-125 PSI
27FCL4-GX	1/2″	Manual	Yes	Polycarbonate	150 PSI	5 Micron Element	0-125 PSI

27FCL6-G
3/4″
Manual
Yes
Polycarbonate
150 PSI
40 Micron Element
0-125 PSI

27FCL6-GHM
3/4″
Manual
Yes
Metal Bowl
250 PSI
40 Micron Element
0-250 PSI

27FCL6-GHS
3/4″
Manual
Yes
Metal w/ Sight glass
250 PSI
40 Micron Element
0-250 PSI

27FCL6-GM
3/4″
Manual
Yes
Metal Bowl
250 PSI
40 Micron Element
0-125 PSI

27FCL6-GS
3/4″
Manual
Yes
Metal w/ Sight glass
250 PSI
40 Micron Element
0-125 PSI

27FCL6-GHMX
3/4″
Manual
Yes
Metal Bowl
250 PSI
5 Micron Element
0-250 PSI

27FCL6-GX
3/4″
Manual
Yes
Polycarbonate
150 PSI
5 Micron Element
0-125 PSI
