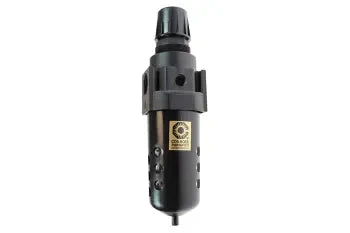

27FC4-D By Coilhose | 27 Modular Series Integral Filter/Regulator | Auto Drain | 1/2″ Pipe Size
Original price was: $147.55.$98.99Current price is: $98.99.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
27 Series Modular Assemblies
27 Series Modular Assemblies
27 Series combination units offer pre-assembled units for fast installations. The integral filter/regulator offers a space-saving design. Duo and trio assemblies utilize the modular clamping system to ease installation.
Integral Filter/Regulator
- 40 or 5 micron filter element
- Balanced poppet valve design ensures superior performance
- 0-250 psi, 0-125 psi, 0-60 psi, 0-25 psi pressure ranges
- Panel mount, metal bowl and gauge options available
| Pipe Size | Integral F/R |
|---|---|
| 3/8″ | 27FC3 |
| 1/2″ | 27FC4 |
| 3/4″ | 27FC6 |
Options
| Filter | Regulator | Lubricator |
|---|---|---|
| F – Filter | G – Pressure Gauge (0-160 psi) | D – Automatic Drain |
| D – Automatic Drain | H – High Pressure Spring (0-250 psi) | M – Metal Bowl Without Sightglass |
| M – Metal Bowl Without Sightglass | J – Extra Low Pressure Spring (0-25 psi) | S – Metal Bowl With Sightglass |
| S – Metal Bowl With Sightglass | L – Low Pressure Spring (0-60 psi) | |
| X – 5 Micron Element |
| Part Number | Port Size | Gauage | Pressure Range | Micron Level | Drain | Bowl Movement | Type |
|---|---|---|---|---|---|---|---|
| 27FC3 | 3/8″ | No | 0-125 PSI | 40 | Manual | Polycarbonate | Combination Units |
| 27FC3-HS | 3/8″ | No | 0-250 PSI | 40 | Manual | Metal w/ Sightglass | Combination Units |
| 27FC3-L | 3/8″ | No | 0-60 PSI | 40 | Manual | Polycarbonate | Combination Units |
| 27FC3-M | 3/8″ | No | 0-125 PSI | 40 | Manual | Metal | Combination Units |
| 27FC3-S | 3/8″ | No | 0-125 PSI | 40 | Manual | Metal w/ Sightglass | Combination Units |
| 27FC3-DGHMX | 3/8″ | Yes | 0-250 PSI | 5 | Automatic | Metal | Combination Units |
| 27FC3-DGMX | 3/8″ | Yes | 0-125 PSI | 5 | Automatic | Metal | Combination Units |
| 27FC3-DMX | 3/8″ | No | 0-125 PSI | 5 | Automatic | Metal | Combination Units |
| 27FC3-GHMX | 3/8″ | Yes | 0-250 PSI | 5 | Manual | Metal | Combination Units |
| 27FC3-GMX | 3/8″ | Yes | 0-125 PSI | 5 | Manual | Metal | Combination Units |
| 27FC3-GSX | 3/8″ | Yes | 0-125 PSI | 5 | Manual | Metal w/ Sightglass | Combination Units |
| 27FC3-GX | 3/8″ | Yes | 0-125 PSI | 5 | Manual | Polycarbonate | Combination Units |
| 27FC3-HSX | 3/8″ | No | 0-250 PSI | 5 | Manual | Metal w/ Sightglass | Combination Units |
| 27FC3-SX | 3/8″ | No | 0-125 PSI | 5 | Manual | Metal w/ Sightglass | Combination Units |
| 27FC3-HM | 3/8″ | No | 0-250 PSI | 40 | Manual | Metal | Combination Units |
| 27FC3-GS | 3/8″ | No | 0-125 PSI | 40 | Manual | Metal w/ Sightglass | Combination Units |
| 27FC3-GM | 3/8″ | Yes | 0-125 PSI | 40 | Manual | Metal | Combination Units |
| 27FC3-D | 3/8″ | No | 0-125 PSI | 40 | Automatic | Polycarbonate | Combination Units |
| 27FC3-DG | 3/8″ | Yes | 0-125 PSI | 40 | Automatic | Polycarbonate | Combination Units |
| 27FC3-DGHM | 3/8″ | Yes | 0-250 PSI | 40 | Automatic | Metal | Combination Units |
| 27FC3-DGLX | 3/8″ | Yes | 0-60 PSI | – | Automatic | Polycarbonate | Combination Units |
| 27FC3-DGM | 3/8″ | Yes | 0-125 PSI | 40 | Automatic | Metal | Combination Units |
| 27FC3-DGS | 3/8″ | Yes | 0-125 PSI | 40 | Automatic | Metal w/ Sightglass | Combination Units |
| 27FC3-DM | 3/8″ | No | 0-125 PSI | 40 | Automatic | Metal | Combination Units |
| 27FC3-DS | 3/8″ | No | 0-125 PSI | 40 | Automatic | Metal w/ Sightglass | Combination Units |
| 27FC3-G | 3/8″ | Yes | 0-125 PSI | 40 | Manual | Polycarbonate | Combination Units |
| 27FC3-GHM | 3/8″ | Yes | 0-250 PSI | 40 | Manual | Metal | Combination Units |
| 27FC3-GHS | 3/8″ | Yes | 0-250 PSI | 40 | Manual | Metal w/ Sightglass | Combination Units |
| 27FC3-GL | 3/8″ | Yes | 0-60 PSI | 40 | Manual | Polycarbonate | Combination Units |
| 27FC3-X | 3/8″ | No | 0-125 PSI | 5 | Manual | Polycarbonate | Combination Units |
