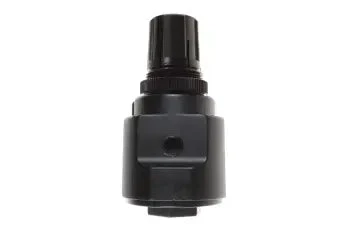

26R2-P By Coilhose | 26 Series Regulator | Panel Mount | 1/4″ Pipe Size | Die Cast Aluminum

Original price was: $46.37.Current price is: $32.46.

SKU: AG9ZZ 14699077960050 Categories: Pneumatic Equipment, Tools & Equipment Tags: 029292493260, 1/4" Pipe size, 26 Series, 26R2-P, Balanced poppet valve, Coilhose, Compact, Locking adjustment knob, Low cost, Panel Mount, Pressure build-up, Regulator, Secondary outlet, Self relieving

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Overview:
The 26 Series Regulators offer a balance of compact size and optimum flow. Utilizing a 3/8″ die cast aluminum body, this series is perfect for applications where performance, small size and low cost are important. Available in 1/4″ and 3/8″ port sizes.
Features:
Balanced poppet valve design assures superior performance. 0-125 PSI, 0-60 PSI, 0-25 PSI pressure ranges available. Self-relieving feature prevents excessive pressure build-up. Locking adjustment knob. Panel mount and gauge options available. Gauge ports can be used as secondary outlet ports.
Warning:
Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.

Maximum Supply Pressure:	250 PSI	Maximum Operating Temp:	250° F
Materials:	Adjusting Knob: High Impact Plastic Body: Zinc Die Cast	Height:	4″
Maximum Diameter:	2″	Bowl Capacity:	1/2 lb.
Regulator Pressure Ranges:	0-125 – Standard 0-60 – Optional 0-25 – Optional

Supply 100 PSI Regulated Pressure	Pressure Drop
Supply 100 PSI Regulated Pressure	5	10	15
1/4″ at 25 PSI	7 SCFM	25 SCFM	40 SCFM
3/8″ at 25 PSI	7 SCFM	25 SCFM	40 SCFM
1/4″ at 50 PSI	7 SCFM	15 SCFM	50 SCFM
3/8″ at 50 PSI	7 SCFM	15 SCFM	80 SCFM
1/4″ at 75 PSI	7 SCFM	20 SCFM	60 SCFM
3/8″ at 75 PSI	7 SCFM	20 SCFM	80 SCFM

Model	Pipe Size	Gauge	Panel Mount	Max Pressure	Pressure Range
26R2	1/4″	No	No	250 PSI	0-125 PSI
26R2-L	1/4″	No	No	250 PSI	0-60 PSI
26R2-JP	1/4″	No	Yes	250 PSI	0-25 PSI
26R2-J	1/4″	No	No	250 PSI	0-25 PSI
26R2-GP	1/4″	Yes	Yes	250 PSI	0-125 PSI
26R2-GLP	1/4″	Yes	Yes	250 PSI	0-60 PSI
26R2-GL	1/4″	Yes	No	250 PSI	0-60 PSI
26R2-GJ	1/4″	Yes	No	250 PSI	0-25 PSI
26R2-G	1/4″	Yes	No	250 PSI	0-125 PSI
26R2-CS*	1/4″	No	No	250 PSI	0-125 PSI
26R2-P	1/4″	No	Yes	250 PSI	0-125 PSI

26R3	3/8″	No	No	250 PSI	0-125 PSI
26R3-L	3/8″	No	No	250 PSI	0-60 PSI
26R3-J	3/8″	No	No	250 PSI	0-25 PSI
26R3-GP	3/8″	Yes	Yes	250 PSI	0-125 PSI
26R3-GL	3/8″	Yes	No	250 PSI	0-60 PSI
26R3-GJ	3/8″	Yes	No	250 PSI	0-25 PSI
26R3-G	3/8″	Yes	No	250 PSI	0-125 PSI
26R3-CS*	3/8″	No	No	250 PSI	0-125 PSI
26R3-P	3/8″	No	Yes	250 PSI	0-125 PSI
