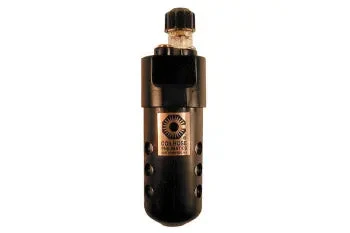

26L3 By Coilhose | 26 Series Lubricator | 3/8″ Pipe Size | Die Cast Aluminum

Original price was: $61.41.Current price is: $42.99.

SKU: AG9ZZ 14699079041394 Categories: Pneumatic Equipment, Tools & Equipment Tags: 029292128858, 26 Series, 26L3, 3/8" Pipe size, Bowl Guard, Coilhose, Compact, Depressurization, Fill port, Lubricator, Oil delivery, Optimum flow, Tamperproof cap

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Overview:
The 26 Series Lubricators offer a balance of compact size and optimum flow. Utilizing a 3/8″ die cast aluminum body, this series is perfect for applications where performance, small size and low cost are important. Available in 1/4″ and 3/8″ port sizes.
Features:
Once delivery rate is set, proportional oil-to-air delivery rate assures even lubrication at all times. Tamperproof cap allows oil delivery rate to be locked in. Refills through fill port does not require depressurization. Bowl guard is standard. Metal bowl options available. 3.8 oz bowl volume.
Warning:
Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.

Maximum Supply Pressure:	Plastic Bowl: 150 PSI Metal Bowl: 250 PSI	Materials:	Plastic Bowl: Polycarbonate Metal Bowl: Zinc Die Cast Body: Zinc Die Cast
Height:	6 1/2″	Weight:	1/2 lb.
Maximum Diameter:	2″	Bowl Capacity:	3.8 oz.

Supply Pressure	Pressure Drop
Supply Pressure	1	2	3	4	5
1/4″ at 25 PSI	3 SCFM	6 SCFM	7.5 SCFM	9 SCFM	11 SCFM
3/8″ at 25 PSI	8 SCFM	18 SCFM	26 SCFM	30 SCFM	32 SCFM
1/4″ at 100 PSI	6.5 SCFM	8 SCFM	13 SCFM	16 SCFM	–
3/8″ at 100 PSI	29 SCFM	43 SCFM	52.5 SCFM	58 SCFM	62 SCFM

Model	Pipe Size	Material	Max Pressure
26L2	1/4″	Polycarbonate	150 PSI
26L2-CS*	1/4″	Polycarbonate	150 PSI
26L2-M	1/4″	Metal	250 PSI
26L2-S	1/4″	Metal w/ Sight glass	250 PSI

26L3	3/8″	Polycarbonate	150 PSI
26L3-CS*	3/8″	Polycarbonate	150 PSI
26L3-M	3/8″	Metal	250 PSI
26L3-S	3/8″	Metal w/ Sight glass	250 PSI
