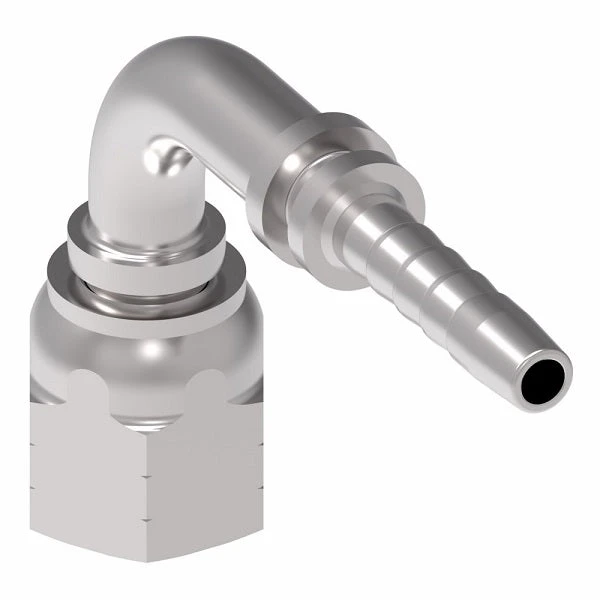

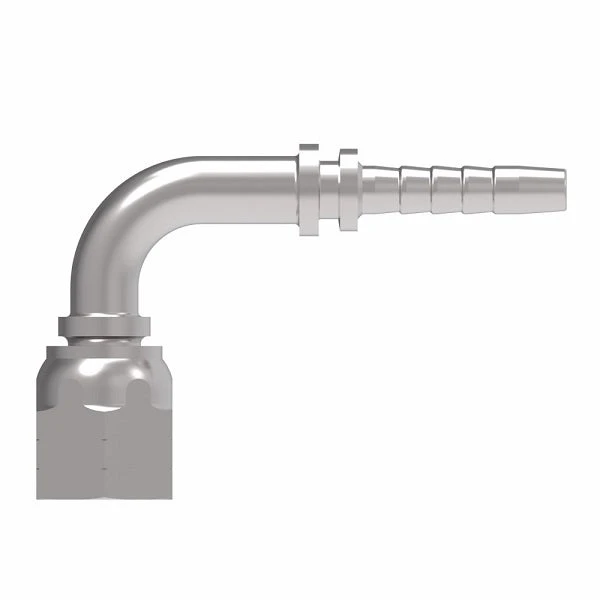

26791-12-12H96ZF Winner By Danfoss | Female JIC 37° Swivel 90° Elbow 2-Piece Hose Crimp Fitting (96mm Drop) | -12 Female JIC 37° Swivel X -12 Hose Barb | Steel
Original price was: $47.45.$33.22Current price is: $33.22.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Features: | |||
|---|---|---|---|
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Terminal End Dash Size |
Thread | DN | Hose Size |
A | D Cut Off Factor |
EØ | H | Hex 1
|
| 26791-04-04ZF | -04 | 7/16″-20 | 6 | -04 | 2.28″ | 1.18″ | 0.16″ | 1.04″ | 14mm |
| 26791-06-04ZF | -06 | 9/16″-18 | 6 | -04 | 2.28″ | 1.18″ | 0.16″ | 1.06″ | 19mm |
| 26791-06-06ZF | -06 | 9/16″-18 | 10 | -06 | 2.54″ | 1.36″ | 0.28″ | 1.24″ | 19mm |
| 26791-08-08ZF | -08 | 3/4″-16 | 12 | -08 | 2.80″ | 1.56″ | 0.39″ | 1.57″ | 22mm |
| 26791-10-08ZF | -10 | 7/8″-14 | 12 | -08 | 2.80″ | 1.56″ | 0.39″ | 1.65″ | 27mm |
| 26791-10-10ZF | -10 | 7/8″-14 | 16 | -10 | 3.27″ | 1.93″ | 0.47″ | 1.87″ | 27mm |
| 26791-12-12ZF | -12 | 1.1/16″-12 | 20 | -12 | 3.66″ | 2.15″ | 0.59″ | 2.11″ | 32mm |
| 26791-16-16ZF | -16 | 1.5/16″-12 | 25 | -16 | 4.65″ | 2.80″ | 0.83″ | 2.60″ | 41mm |
|
26791-04-04H21ZF (21mm Drop) |
-04 | 7/16″-20 | 6 | -04 | 2.18″ | 1.07″ | 0.15″ | 0.83″ | 14mm |
|
26791-06-04H23ZF (23mm Drop) |
-06 | 9/16″18 | 6 | -04 | 2.18″ | 1.07″ | 0.15″ | 0.91″ | 19mm |
|
26791-06-06H23ZF (23mm Drop) |
-06 | 9/16″-18 | 10 | -06 | 2.43″ | 1.25″ | 0.27″ | 0.91″ | 19mm |
|
26791-06-06H54ZF (54mm Drop) |
-06 | 9/16″-18 | 10 | -06 | 2.54″ | 1.36″ | 0.27″ | 2.13″ | 19mm |
|
26791-08-06H29ZF (29mm Drop) |
-08 | 3/4″-16 | 10 | -06 | 2.7″ | 1.52″ | 0.27″ | 1.14″ | 22mm |
|
26791-08-08H29ZF (29mm Drop) |
-08 | 3/4″-16 | 12 | -08 | 3.09″ | 1.85″ | 0.39″ | 1.14″ | 22mm |
|
26791-10-08H32ZF (32mm Drop) |
-10 | 7/8″-14 | 12 | -08 | 2.99″ | 1.75″ | 0.39″ | 1.29″ | 27mm |
|
26791-10-10H32ZF (32mm Drop) |
-10 | 7/8″-14 | 16 | -10 | 3.29″ | 1.95″ | 0.47″ | 1.26″ | 27mm |
|
26791-12-10H48ZF (48mm Drop) |
-12 | 1-1/16″-12 | 16 | -10 | 3.27″ | 1.93″ | 0.47″ | 1.89″ | 32mm |
|
26791-12-10H96ZF (96mm Drop) |
-12 | 1-1/16″-12 | 16 | -10 | 3.27″ | 1.93″ | 0.47″ | 3.78″ | 32mm |
|
26791-12-12H48ZF (48mm Drop) |
-12 | 1-1/16″-12 | 20 | -12 | 3.65″ | 2.14″ | 0.59″ | 1.89″ | 32mm |
|
26791-12-12H96ZF (96mm Drop) |
-12 | 1-1/16″-12 | 20 | -12 | 3.66″ | 2.15″ | 0.59″ | 3.78″ | 32mm |
|
26791-16-16H56ZF (56mm Drop) |
-16 | 1-5/16″-12 | 25 | -16 | 4.66″ | 2.81″ | 0.82″ | 2.2″ | 41mm |
