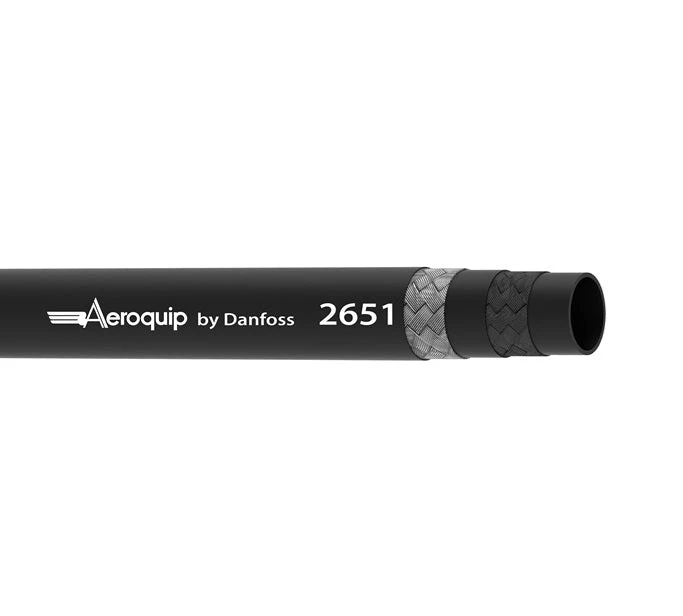

2651-4 Aeroquip By Danfoss | Double Textile & Wire Braided Hose | SAE 100R5 | 0.19″ ID
Original price was: $12.49.$8.74Current price is: $8.74.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Hose Properties: | |||
|---|---|---|---|
| Application: | Hydraulics, gasoline, fuel and lubricating oils, air and water. | SAE Ratings: | Meets: SAE 100R5 |
| Other Ratings: | N/A | Tube: | Synthetic Rubber |
| Reinforcement: | Textile Inner Braid, Single Wire Braid, Textile Outer Braid | Cover: | Synthetic Rubber |
| Operating parameters: | (-40°F to +212°F) (-40°C to +100°C) Air not to Exceed: 250 psi or +71°C (+160°F) | ||
| Part Number | Hose ID | Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Vacuum service | Weight | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kPa | in/Hg | kg/m | lbs/ft | |
| 2651-4 | 5 | 4,8mm | 0.19″ | 13,2mm | 0.52″ | 210,0 bar | 3000 psi | 840,0 bar | 12000 psi | 76,2mm | 3.00″ | 94,8 kPa | 28 in/Hg | 0,19 kg/m | 0.13 lbs/ft |
| 2651-5 | 6 | 6,4mm | 0.25″ | 14,7mm | 0.58″ | 210,0 bar | 3000 psi | 840,0 bar | 12000 psi | 85,9mm | 3.38″ | 94,8 kPa | 28 in/Hg | 0,24 kg/m | 0.16 lbs/ft |
| 2651-6 | 8 | 7,9mm | 0.31″ | 17,3mm | 0.68″ | 157,0 bar | 2250 psi | 630,0 bar | 9000 psi | 101,6mm | 4.00″ | 94,8 kPa | 28 in/Hg | 0,34 kg/m | 0.23 lbs/ft |
| 2651-8 | 10 | 10,4mm | 0.41″ | 19,1mm | 0.75″ | 140,0 bar | 2000 psi | 560,0 bar | 8000 psi | 117,3mm | 4.62″ | 94,8 kPa | 28 in/Hg | 0,38 kg/m | 0.26 lbs/ft |
| 2651-10 | 13 | 12,7mm | 0.50″ | 23,4mm | 0.92″ | 122,0 bar | 1750 psi | 490,0 bar | 7000 psi | 139,7mm | 5.50″ | 94,8 kPa | 28 in/Hg | 0,55 kg/m | 0.37 lbs/ft |
| 2651-12 | 16 | 16,0mm | 0.63″ | 27,4mm | 1.08″ | 105,0 bar | 1500 psi | 420,0 bar | 6000 psi | 165,1mm | 6.50″ | 94,8 kPa | 28 in/Hg | 0,68 kg/m | 0.46 lbs/ft |
| 2651-16 | 22 | 22,4mm | 0.88″ | 31,2mm | 1.23″ | 56,0 bar | 800 psi | 224,0 bar | 3200 psi | 187,5mm | 7.38″ | 67,7 kPa | 20 in/Hg* | 0,65 kg/m | 0.44 lbs/ft |
| 2651-20 | 28 | 28,4mm | 1.12″ | 38,1mm | 1.50″ | 43,0 bar | 625 psi | 175,0 bar | 2500 psi | 228,6mm | 9.00″ | 67,7 kPa | 20 in/Hg* | 0,77 kg/m | 0.52 lbs/ft |
| 2651-24 | 35 | 35,1mm | 1.38″ | 44,5mm | 1.75″ | 35,0 bar | 500 psi | 140,0 bar | 2000 psi | 266,7mm | 10.50″ | 50,8 kPa | 15 in/Hg* | 0,99 kg/m | 0.67 lbs/ft |
| 2651-32 | 46 | 46,0mm | 1.81″ | 56,4mm | 2.22″ | 24,0 bar | 350 psi | 98,0 bar | 1400 psi | 336,6mm | 13.25″ | 37,3 kPa | 11 in/Hg* | 1,39 kg/m | 0.94 lbs/ft |
| 2651-40 | 60 | 60,1mm | 2.38″ | 73,2mm | 2.88″ | 24,0 bar | 350 psi | 98,0 bar | 1400 psi | 609,6mm | 24.00″ | 37,3 kPa | 11 in/Hg* | 2,11 kg/m | 1.43 lbs/ft |
* Maximum negative pressures shown for -16 and larger are suitable for hose which has suffered no external damage or kinking. If greater negative pressures are
required for -16 and larger hoses, the use of an internal support coil is recommended.
Bulk / By the Foot: We sell Danfoss hose in “Bulk Length” unless otherwise specified in the title or option selector as “Exact Length”. When you buy “Bulk Length” hose you are agreeing to buy
multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you
need a single piece then you can select an “Exact Length” option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose
supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc.,
or any other entity. Consult current master catalog for additional warnings and cautions.
